High current thermal resistor temperature sensor

Name: High current thermal resistor temperature sensor
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 50°C
Response Time:Flow (V=0.4 m/s):t0.5 = 0.05 s,t10 = 0.15 s;Airflow (V=2 m/s):t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

High Current Thermal Resistor Temperature Sensor Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. is a leading high current thermal resistor temperature sensor manufacturer and supplier. With 15+ years of expertise in thin-film platinum resistance technology, we deliver sensors that excel in accuracy (±0.01Ω), durability (40g vibration resistance), and rapid response (0.05s). Our ISO 9001, CE, and RoHS-certified solutions empower industries like automotive, aerospace, and energy to achieve reliable temperature monitoring in extreme conditions.

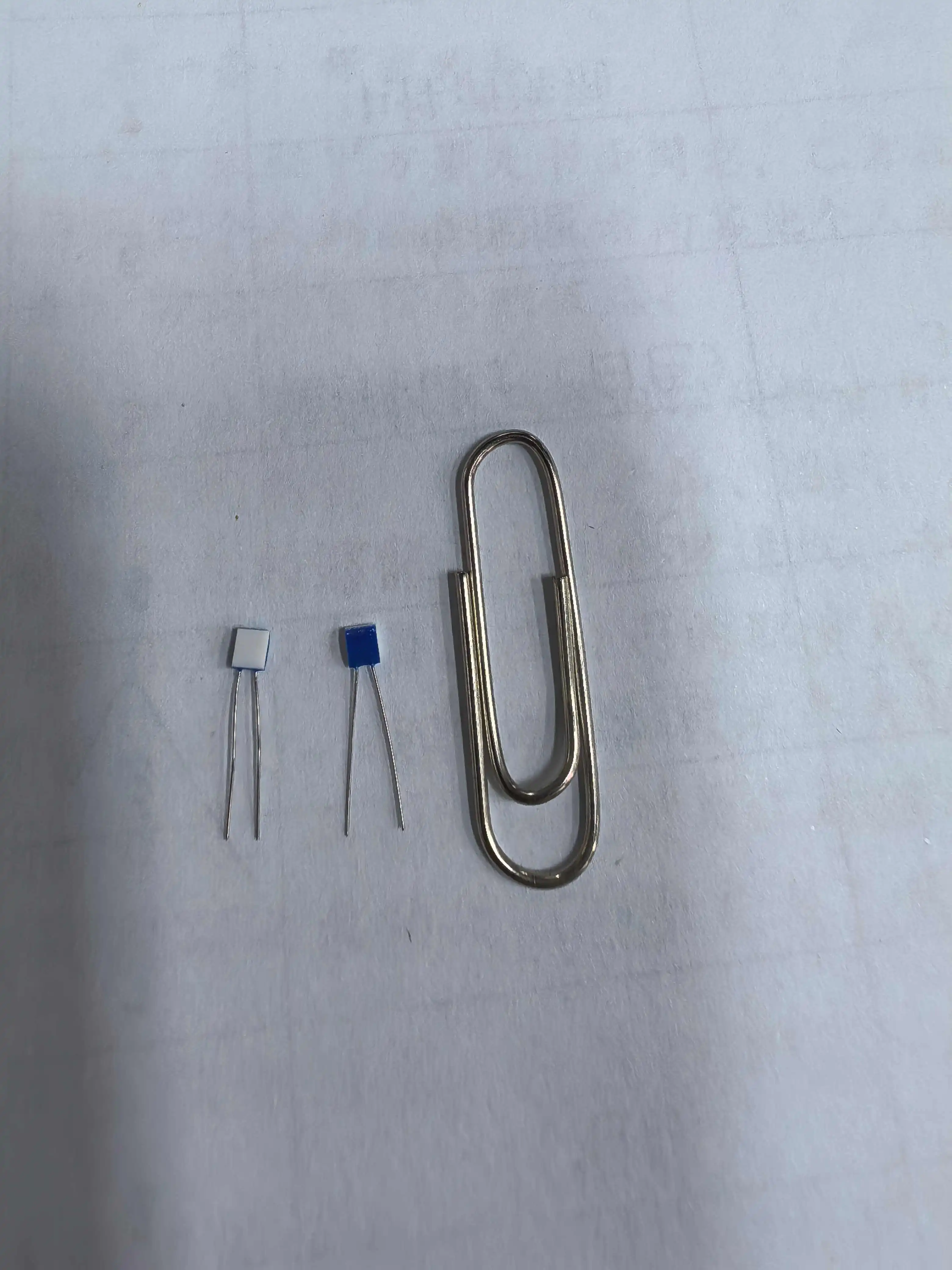

high current thermal resistor temperature sensor

Why Choose Our High Current Thermal Resistor Temperature Sensor?

Ultra-Precise Performance: Our sensors feature a TCR of 3850 ppm/°C, enabling them to deliver highly stable readings across an extremely wide temperature range from -200°C to +850°C, ensuring accuracy in diverse applications.
Robust Build: Engineered to endure the toughest conditions, these sensors can withstand 100g shocks and 40g vibrations, making them ideal for use in rugged and harsh environments where reliability is crucial.
Customizable Designs: We offer extensive customization options, allowing you to select from a range of sizes between 1.2mm–4.0mm, choose from lead materials like platinum-nickel and silver-palladium, and pick the perfect packaging to suit your needs.
Fast Response: Designed for real-time monitoring, our sensors can achieve 0.05-second readings even in flow conditions, providing you with instant and up-to-date data for efficient decision-making.
Certified Quality: Rest assured of our product quality as our sensors comply with ISO 9001, CE, and RoHS standards, guaranteeing excellence in manufacturing, safety, and environmental responsibility.

Technical Specifications

Parameter	Specification
Element Dimensions	2.0x2.3x1.0mm, 1.6x2.0x1.0mm, 1.2x2.0x1.0mm
Lead Material	Platinum-nickel (optional: silver-palladium)
Operating Current	0.3–1 mA (self-heating coefficient 0.4°C/mW)
Insulation Resistance	100 MΩ at 20°C; >2 MΩ at 500°C
Long-Term Stability	≤±0.04% drift after 1000 hours at 50°C

Reference Selection Guide

Application	Recommended Model	Key Benefit
EV Battery Systems	TZD-HT-2.0	Shock resistance, 0.05s response
Industrial Motor Controls	TZD-HT-1.6	40g vibration tolerance
Aerospace Sensors	TZD-HT-1.2	Ultra-low temp stability

Key Features

Wide Temperature Range: Reliable from -200°C to +850°C.
High Current Tolerance: Optimized for 5A+ environments.
Vacuum Packaging: Minimizes oxidation for extended lifespan.
Plug-and-Play Integration: Pre-calibrated for quick installation.

Applications

Automotive: EV battery management, charging stations.
Industrial: Motor controls, power inverters, HVAC systems.
Aerospace: Avionics, propulsion monitoring.
Energy: Solar inverters, grid infrastructure.

Certifications & Quality Control

All of our High current thermal resistor temperature sensors are rigorously evaluated through a comprehensive 12 - step quality check process, meticulously designed to ensure peak performance and reliability. Each step in this stringent procedure focuses on different aspects of the sensor, from raw material inspection to final product testing, leaving no room for compromise. These sensors fully comply with the IEC60751 standards, which are globally recognized benchmarks for temperature sensor accuracy and functionality. Moreover, our sensors hold esteemed certifications including ISO 9001, which validates our robust quality management system, CE, ensuring compliance with European health, safety, and environmental regulations, and RoHS, demonstrating our commitment to reducing the use of hazardous substances. This combination of thorough testing and key certifications makes our sensors a trusted choice for various applications.

certificate

Packaging & Delivery

Our products are safeguarded within vacuum-sealed plastic packaging, which creates an airtight and protective environment that shields against moisture, dust, and oxidation, ensuring the integrity of the contents during transit. For those with specific requirements, we offer custom packaging options, allowing you to tailor the packaging to fit your unique needs, whether it's for branding, specific handling requirements, or additional protection. To ensure timely delivery worldwide, we have partnered with renowned logistics providers DHL and FedEx. Leveraging their extensive global networks, we guarantee that bulk orders will reach you within 5–7 days, providing a fast and reliable solution for your business needs.

FAQs

Q: Can you customize lead lengths?
A: Yes! We offer lengths from 10mm to 50mm.

Q: What's the minimum order quantity?
A: MOQ is 100 units for standard models.

Q: Are your sensors AEC-Q200 compliant?
A: Yes, ideal for automotive applications.

Q: Do you provide technical support?
A: 24/7 engineering support via email/phone.

Q: What's the warranty period?
A: 3-year warranty on all products.

Contact Us

Need a high current thermal resistor temperature sensor tailored to your needs? Reach our experts at sales11@xatzd.com for quotes, samples, or technical queries.
