Surface Mount Platinum RTD

Name: Surface Mount Platinum RTD
SKU: N/A

Element Type:Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,2.0mm x 4.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.1–0.3 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 50°C
Response Time:Water Flow (V=0.4 m/s):t₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Surface Mount Platinum RTD Manufacturer And Supplier

At Xi'an Tongzida Technology Co., Ltd., we specialize in designing Surface Mount Platinum RTDs that redefine accuracy and durability. With 15+ years of expertise in sensor manufacturing, our platinum resistance thermistors deliver unmatched performance for industrial automation, medical devices, automotive systems, and aerospace applications. Certified to ISO 9001, ROHS, and CE standards, we combine cutting-edge thin-film technology with customizable solutions to meet your exact needs.

Surface Mount Platinum RTDs

Why Choose Our Surface Mount Platinum RTD?

IEC 60751 Compliance: Guaranteed TCR of 3850 ppm/°C for reliable measurements.
Wide Temperature Range: Operate seamlessly from -200°C to +850°C.
Ultra-Fast Response: Achieve 0.05-second readings in liquid environments.
Robust Design: Withstand 40g vibration and 100g shock for harsh conditions.
Customizable Options: Tailor lead materials (Pt-Ni, Ag-Pd, pure Pt), sizes, and packaging.

Surface Mount Platinum RTD Specifications

Parameter	Specification
Dimensions	2.0mm x 2.3mm x 1.0mm / 2.0mm x 4.0mm x 1.0mm
Lead Material	Platinum-Nickel (default), Silver-Palladium, Pure Platinum
Lead Tensile Strength	≥9 N
Insulation Resistance	100 MΩ (20°C), >2 MΩ (500°C)
Long-Term Stability	≤±0.04% drift after 1000 hours at 50°C
Self-Heating Coefficient	0.4°C/mW

Reference Selection Guide

Application	Recommended Model	Temperature Range	Accuracy
EV Battery Management	TD-Pt-2.3	-50°C to +300°C	±0.1°C
Medical Sterilization	TD-Pt-4.0	0°C to +500°C	±0.05°C
Aerospace Sensors	TD-Pt-Custom	-200°C to +850°C	±0.03°C

Key Features of Our Platinum RTD

Precision Engineering: ±0.01Ω accuracy (1/40B level) ensures data integrity.
High Stability: Minimal drift even after prolonged use.
Flexible Integration: Compatible with SMT processes for easy PCB mounting.
Vacuum Packaging: Reduces oxidation risks during storage and transit.

Where Surface Mount Platinum RTDs Excel

Industrial Automation: Process control, HVAC systems.
Medical Equipment: Lab analyzers, sterilization devices.
Automotive: EV battery thermal management, engine monitoring.
Aerospace: Avionics, satellite temperature sensing.

Certifications & Quality Assurance

All Surface Mount Platinum RTDs in our product line are subjected to an extensive and meticulous testing process, strictly following the ISO 9001 guidelines. This comprehensive testing regime encompasses multiple stages, from raw material inspection to final product validation, ensuring that each RTD meets the highest standards of quality and reliability. Our commitment to environmental responsibility is equally strong. With RoHS and REACH compliance, we guarantee that our production processes are eco-friendly, eliminating the use of hazardous substances and minimizing environmental impact. This not only reflects our dedication to sustainable manufacturing but also provides our customers with the assurance that they are investing in products that are both top-performing and environmentally conscious.

certificate

Packaging & Delivery

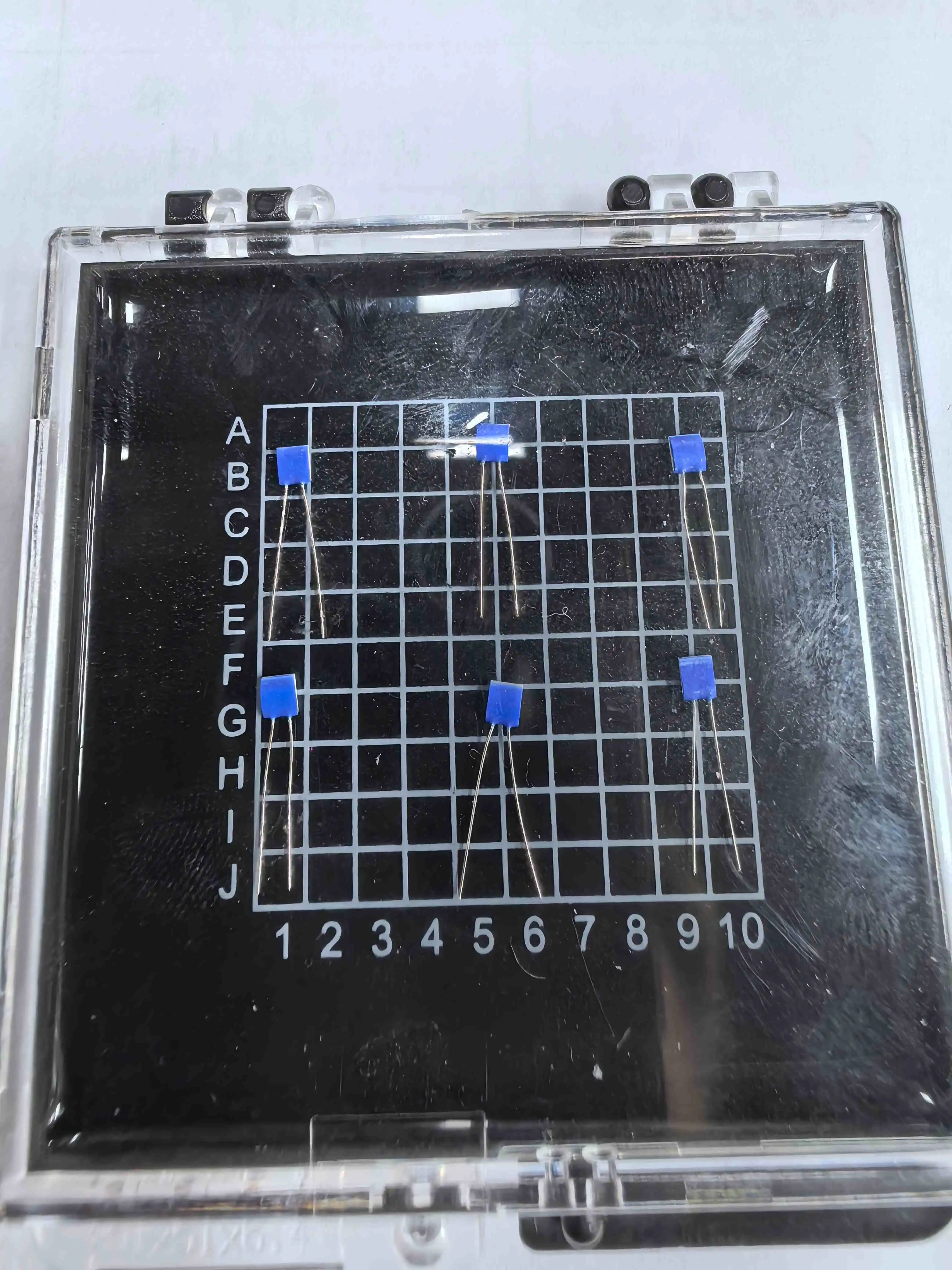

Our standard vacuum-sealed plastic trays are the first line of defense against contamination, creating an airtight and sterile environment that safeguards products from dust, moisture, and other harmful elements. This packaging method not only preserves the integrity of the items but also extends their shelf life, ensuring they remain in pristine condition until use. For bulk orders, we prioritize efficiency and reliability. With a commitment to shipping within 7–10 days, we leverage advanced logistics systems and partner with trusted carriers to ensure prompt delivery. Additionally, our real-time tracking feature allows customers to monitor the progress of their shipments at every stage, providing peace of mind and transparency throughout the process.

FAQs: Your Questions, Answered

Q: Do you support custom TCR values?
A: Yes! We adjust TCR (3000–3920 ppm/°C) per your requirements.

Q: Can I request medical-grade certification?
A: Absolutely. Our RTDs meet ISO 13485 for medical devices.

Q: What's the minimum order quantity (MOQ)?
A: MOQ starts at 500 units, with discounts for 5,000+ orders.

Q: How do you ensure lead time reliability?
A: Our automated production line guarantees 99% on-time delivery.

Q: Are samples available for testing?
A: Yes, free samples ship within 48 hours.

Contact us

Need a Surface Mount Platinum RTD that outperforms competitors? Email our engineers at sales11@xatzd.com for datasheets, quotes, or custom design support.
