Fixed Thread Type Thermistor Temperature Sensor

Name: Fixed Thread Type Thermistor Temperature Sensor
SKU: N/A

Resistance Value：Pt100；Pt1000；Pt500
Wire Configuration:Two-wire system;Three-wire system;Four-wire system；
Lead Wire Material:FEP (Fluorinated Ethylene Propylene)
Silicone Rubber
PTFE (Polytetrafluoroethylene)
PVC (Polyvinyl Chloride)
Metal Braided High-Temperature Wire
Temperature Coefficient：TK = 3850 ppm/K
Self-Heating Coefficient：0.4 K/mW (at 0°C)
Accuracy Classes：1/30B Class: Tolerance ≤ ±0.01°C (0~100°C)
1/10B Class: Tolerance ≤ ±0.03°C (0~100°C)
1/3B Class: Tolerance ≤ ±0.10°C (0~150°C)
A Class: Tolerance ≤ ±0.15°C (-50~300°C)
B Class: Tolerance ≤ ±0.30°C (-70~300°C)
Operating Current：100Ω: 0.3~1 mA
500Ω: 0.1~0.7 mA
1000Ω: 0.1~0.3 mA
Insulation Resistance：≥100 MΩ @ 500 V and 20°C
Pressure Resistance Standard：≥0.5 MPa

Send Inquiry

Download

Product Description

Fixed Thread Type Thermistor Temperature Sensor Manufacturer And Supplier

At Xi'an Tongzida Technology Co., Ltd., we specialize in manufacturing high-performance Fixed Thread Type Thermistor Temperature Sensors designed for demanding industrial, automotive, and aerospace applications. With over [X] years of expertise in sensor technology, our products combine cutting-edge thin-film platinum resistor designs, IEC60751 compliance, and unmatched durability to deliver precise temperature measurements even in extreme environments.

Fixed Thread Type Thermistor Temperature Sensors

Why Choose Our Fixed Thread Type Thermistor Temperature Sensor?

Ultra-High Accuracy: Achieve ±0.01°C tolerance (1/30B class) for critical applications.
Wide Temperature Range: Operate seamlessly from -200°C to +850°C.
Robust Construction: Vibration resistance (40g), impact resistance (100g), and IP68-rated options.
Fast Response: Detect temperature changes in as little as 0.05 seconds.
Customizable Solutions: Tailor thread sizes (M3 to M12), lead materials (Pt, FEP, PTFE), and wire configurations (2/3/4-wire).

Key Specifications

Parameter	Details
Resistance Options	Pt100, Pt500, Pt1000
Temperature Coefficient	3850 ppm/°C (IEC60751)
Insulation Resistance	≥100 MΩ @ 500 V, 20°C
Pressure Resistance	≥0.5 MPa
Lead Wire Materials	FEP, Silicone, PTFE, PVC, Metal Braided High-Temp

Reference Selection Guide

Application	Recommended Sensor Configuration
Industrial Automation	Pt1000, 4-wire, PTFE leads, M6 thread, ±0.03°C accuracy
EV Battery Systems	Pt500, 3-wire, FEP insulation, M4 thread, vibration-resistant
HVAC Monitoring	Pt100, 2-wire, silicone leads, M8 thread, ±0.15°C accuracy
Aerospace Testing	Pt1000, 4-wire, metal braided leads, M12 thread, vacuum-sealed

Features That Set Us Apart

Threaded Stability: Secure installation with stainless steel threads (M3 to M12).
Self-Heating Minimized: Low 0.4 K/mW coefficient ensures minimal measurement drift.
Long-Term Reliability: Stability drift ≤0.04% over years of operation.
Flexible Customization: Choose cable lengths, connector types, or special coatings.

Where Our Sensors Excel

Industrial Machinery: Monitor motors, reactors, and turbines.
Medical Equipment: Ensure precise sterilization and lab instrument safety.
Renewable Energy: Optimize solar thermal systems and wind turbine gearboxes.
Automotive Testing: Track exhaust, battery, and engine temperatures.

Certifications & Quality Assurance

All our Fixed Thread Type Thermistor Temperature Sensors are meticulously engineered to fully comply with the prestigious ISO9001, RoHS, and CE standards. The ISO9001 certification attests to our robust quality management system, ensuring consistent excellence in every production process. RoHS compliance showcases our commitment to environmental sustainability by restricting the use of hazardous substances, while the CE mark validates our adherence to strict European health, safety, and environmental regulations. To further guarantee their reliability, our sensors undergo rigorous testing protocols. This comprehensive testing regimen encompasses thermal cycling to evaluate performance across extreme temperature ranges, vibration simulations to mimic real - world harsh conditions, and IP rating validation to ensure protection against dust and moisture, providing customers with unwavering confidence in our products' durability and functionality.

certificate

Packing & Delivery

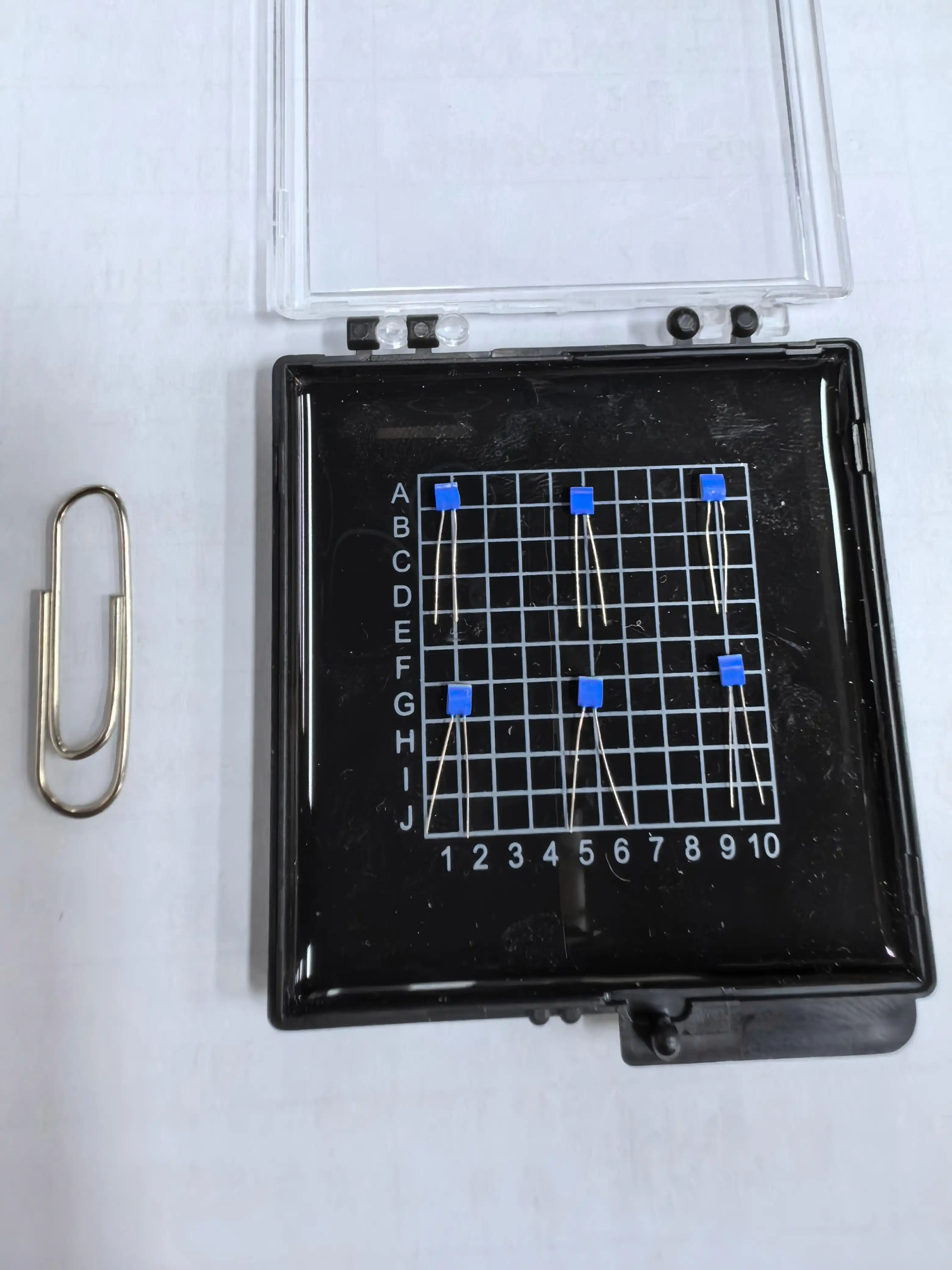

Our sensors are carefully safeguarded with either vacuum-sealed or anti-static packaging, depending on the specific requirements of the product. Vacuum-sealed packaging creates an airtight environment that protects the sensors from moisture, dust, and oxidation, ensuring their integrity during transit and storage. Anti-static packaging, on the other hand, shields sensitive electronic components from electrostatic discharge, preventing potential damage. The standard lead time for our sensors is 2–4 weeks, providing a reliable timeline for your projects. However, we understand that urgent needs may arise. That's why we offer expedited options, allowing you to receive your sensors more quickly to meet tight deadlines.

FAQ

Q: Can you customize lead wire lengths?
A: Yes! Specify lengths from 0.5m to 10m during ordering.

Q: Do you offer ATEX-certified sensors?
A: Absolutely. We provide explosion-proof models for hazardous environments.

Q: What's the minimum order quantity?
A: MOQ starts at 100 units, with bulk discounts for 1,000+ orders.

Q: How do I calibrate the sensor?
A: Each unit includes a calibration certificate. We also offer recalibration services.

Q: Can I request samples?
A: Yes. Contact us for free sample evaluations.

Empower Your Systems with Precision

Trust Xi'an Tongzida's Fixed Thread Type Thermistor Temperature Sensors to enhance your operational efficiency. Contact our team at sales11@xatzd.com for tailored quotes, technical drawings, or partnership inquiries.
