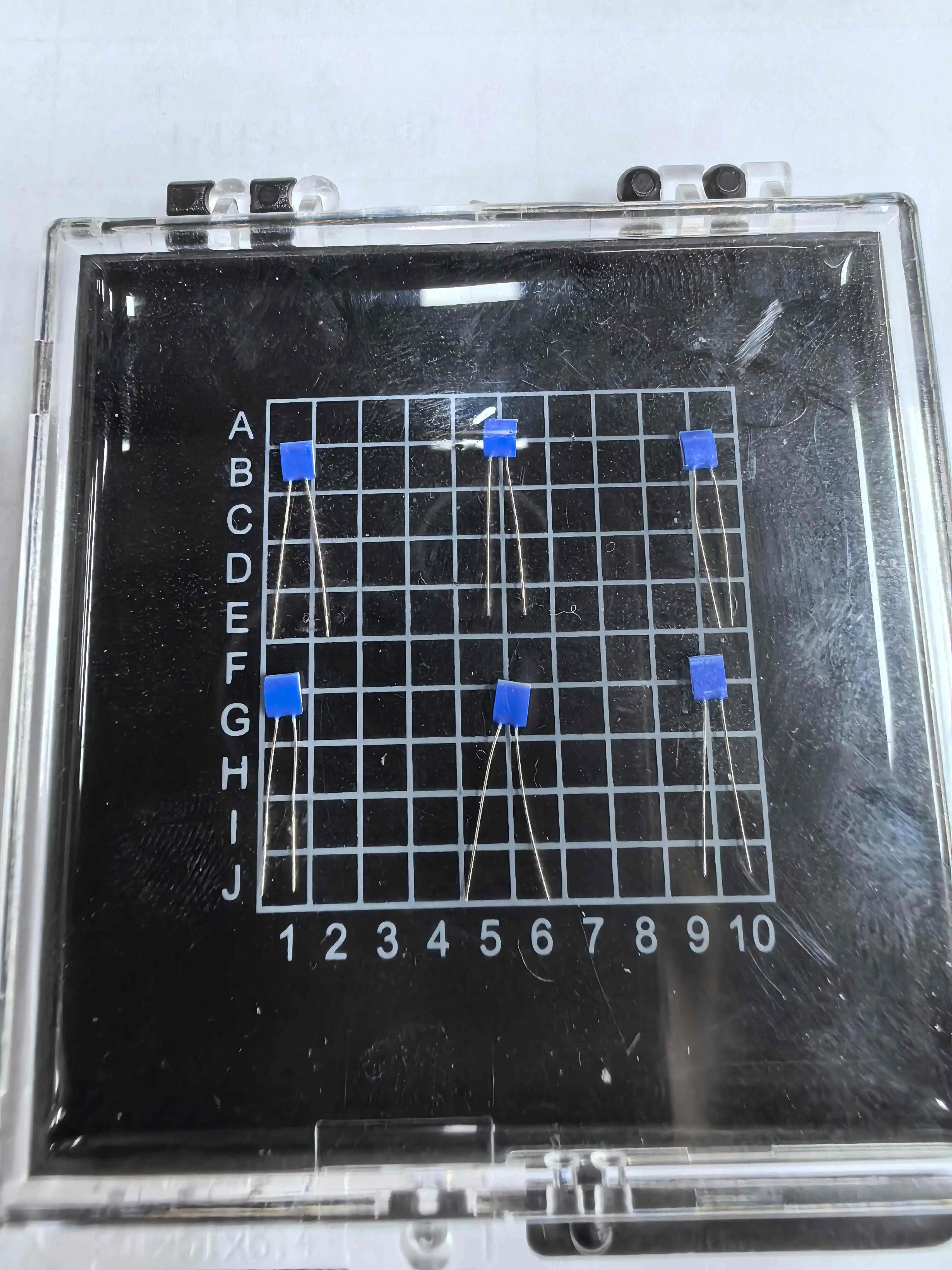

Precision Temperature Sensor

Name: Precision Temperature Sensor
SKU: N/A

Element Type:Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,2.0mm x 4.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.1–0.3 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 50°C
Response Time:Water Flow (V=0.4 m/s):t₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Xi'an Tongzida Technology Co., Ltd.: Your Trusted Precision Temperature Sensor Manufacturer

As a leading manufacturer and supplier of precision temperature sensors, Xi'an Tongzida Technology Co., Ltd. offers unparalleled expertise in high-performance sensing solutions. Our advanced thin-film platinum resistance thermometers deliver superior accuracy, stability, and reliability for the most demanding industrial applications. With ISO9001 certification and a commitment to innovation, we're your ideal partner for precision temperature measurement.

precision temperature sensors

Introduction

Welcome to the cutting edge of temperature sensing technology. Our things talk to the summit of estimation accuracy and faithful quality, arranged to meet the requesting rules of businesses where temperature control is mission-critical. From mechanical computerization to flying, our sensors pass on the execution you require to optimize shapes and ensure thing quality.

Why Choose Us？

Industry-leading accuracy: ±0.01 Ω (1/40B level)
Exceptional long-term stability: ≤0.04% resistance drift
Wide temperature range: -200°C to +850°C
Rapid response times: As fast as 0.05 seconds
Customizable solutions for your specific needs
Proven reliability in harsh environments

Specifications

Parameter	Value
Element Type	Platinum Resistance Thermistor
Element Dimensions	2.0mm x 2.3mm x 1.0mm, 2.0mm x 4.0mm x 1.0mm
Lead Specifications	Length: 10 mm, Diameter: 0.2 mm
Lead Material	Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Temperature Coefficient (TCR)	3850 ppm/°C
Insulation Resistance	100 MΩ at 20°C, >2 MΩ at 500°C
Operating Current	0.1–0.3 mA
Vibration Resistance	≥40g acceleration (10–2000 Hz)
Shock Resistance	≥100g acceleration (8 ms half-sine wave)

Reference Selection

Model	Temperature Range	Accuracy Class
TZD-PT100	-50°C to +200°C	Class A
TZD-PT1000	-200°C to +600°C	Class AA
TZD-PT10K	-200°C to +850°C	1/10 DIN

Features

Our precision temperature sensors boast an impressive array of features designed to excel in the most challenging environments:

High accuracy and repeatability
Fast response times for dynamic measurements
Excellent long-term stability for reduced maintenance
Robust construction for industrial durability
Customizable lead options for seamless integration
Compliance with international standards (IEC60751)

Applications

Our products find critical use across various industries:

Industrial Process Control
Medical Equipment
Automotive Testing
Aerospace Systems
Semiconductor Manufacturing
HVAC/R Monitoring
Laboratory Instrumentation
Renewable Energy Systems

By choosing our products, you're ensuring optimal performance in your temperature-critical applications, from cleanroom environments to rugged industrial settings.

Certificates

We maintain rigorous quality standards, evidenced by our ISO9001, ROHS, and CE certifications.

Factory pictures

Packing and Delivery

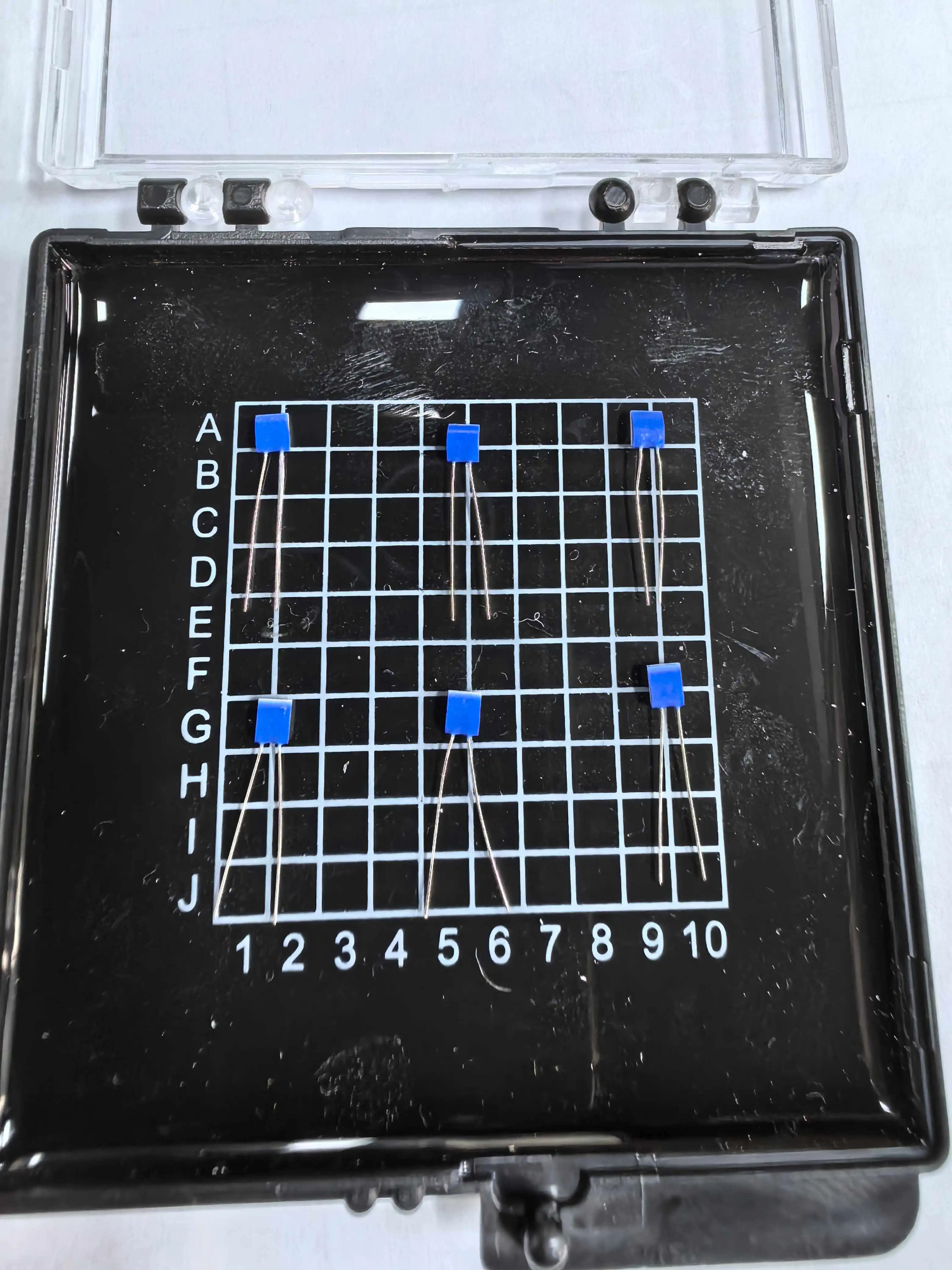

Our sensors are vacuum-sealed for protection, with custom packaging options available to suit your logistics needs.

FAQ

Q1: What is the typical lead time for bulk orders?
A1: For standard models, we typically ship within 2-3 weeks. Custom orders may require 4-6 weeks.

Q2: Do you offer calibration services?
A2: Yes, we provide NIST-traceable calibration certificates upon request.

Q3: Can you customize the sensor design for specific applications?
A3: Absolutely. Our engineering team can work with you to develop tailored solutions.

Q4: What is the warranty period for your products?
A4: We offer a standard 12-month warranty, with extended options available.

Q5: How do you ensure consistency across large production batches?
A5: We employ stringent quality control measures and automated testing to guarantee uniformity.

Contact Us

Ready to elevate your temperature measurement capabilities? Contact our sales team at sales11@xatzd.com to discuss your precision temperature sensor needs. Let's work together to find the perfect solution for your application.
