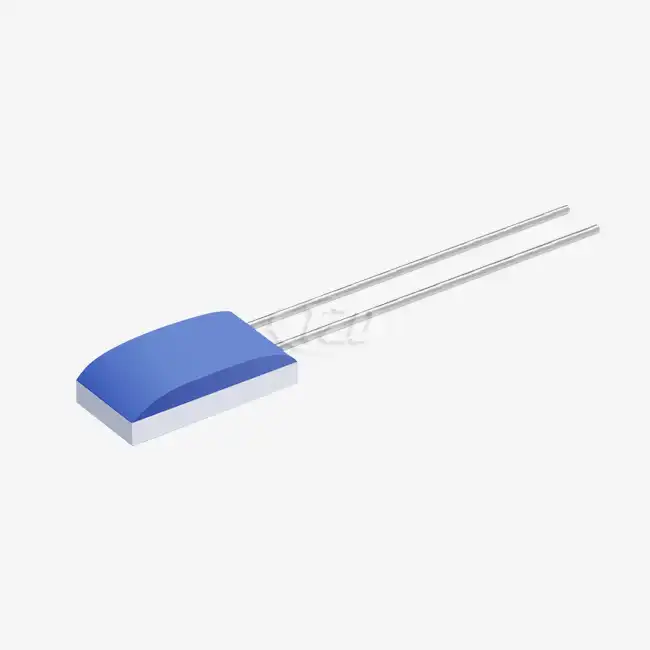

Platinum Temperature Sensor Chip

Name: Platinum Temperature Sensor Chip
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 50°C
Response Time:Flow (V=0.4 m/s):t0.5 = 0.05 s,t10 = 0.15 s;Airflow (V=2 m/s):t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Platinum Temperature Sensor Chip Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. specializes in advanced Platinum Temperature Sensor Chips designed for precision-critical industries. With ISO 9001, CE, and RoHS certifications, we combine cutting-edge thin-film technology, automated production, and rigorous quality control to deliver sensors with unmatched stability (±0.04% drift), rapid response (0.05s), and compliance with IEC 60751 standards.

Platinum Temperature Sensor Chips

Why Choose Our Platinum Temperature Sensor Chip?

Reliable Accuracy: Our sensors feature a TCR of 3850 ppm/°C, ensuring unwavering and consistent performance throughout an expansive temperature range from -200°C to +850°C, providing accurate readings in diverse conditions.
Durability: Engineered to endure extreme environments, these sensors can withstand intense 40g vibrations and powerful 100g shocks, making them ideal for rugged industrial and outdoor applications.
Customization: We offer extensive customization options, allowing you to tailor the sensor size between 1.2mm–4.0mm, choose lead materials like Pt-Ni or Ag-Pd, and select the perfect packaging to fit your specific needs.
Certified Quality: Our sensors comply with stringent standards such as RoHS, REACH, and AEC-Q200, ensuring they meet the high - quality and safety requirements for automotive, aerospace, and medical applications.
Global Support: Benefit from our 24/7 technical assistance, ensuring prompt solutions to any issues. We also accommodate scalable bulk orders to meet your growing business demands worldwide.

Specifications

Parameter	Value
Temperature Range	-200°C to +850°C
Accuracy	±0.01Ω (1/40B Class)
Response Time (Flow)	0.05s (t₀.₅)
Insulation Resistance	100MΩ at 20°C
Lead Tensile Strength	≥9N
Long-Term Stability	≤0.04% drift over 1,000 hours

Model Reference Selection

Model	Dimensions (mm)	Ideal For
PT-2.0	2.0x2.3x1.0	Aerospace, EV Batteries
PT-1.6	1.6x2.0x1.0	Medical Devices, Lab Equipment
PT-1.2	1.2x2.0x1.0	Industrial Automation

Key Features

Ultra-Fast Response: Achieve real-time monitoring with 0.05s reaction in flow conditions.
Wide Operating Range: Perform reliably from cryogenic to ultra-high temperatures.
Robust Construction: Platinum-nickel leads and vacuum packaging resist corrosion and moisture.
Low Self-Heating: 0.4°C/mW ensures minimal interference in sensitive systems.
Medical-Grade Safety: RoHS-compliant materials for patient-critical applications.

Applications

Industrial Automation: Process control, machinery health monitoring.
EV/Aerospace: Battery thermal management, avionics systems.
Healthcare: MRI machines, sterilizers, wearable monitors.
Energy & HVAC: Smart grid sensors, climate control systems.

Certifications & Compliance

Our Platinum Temperature Sensor Chips are engineered with precision and adhere to the highest international benchmarks. The ISO 9001 certification validates our robust quality management system, ensuring consistent excellence in every step of production, from material sourcing to final assembly. Our RoHS compliance demonstrates a commitment to environmental stewardship by restricting the use of hazardous substances, minimizing ecological impact. The CE mark confirms that these chips meet strict European health, safety, and environmental protection requirements. Moreover, compliance with IEC 60751, a globally recognized standard for temperature sensors, guarantees accurate and reliable temperature measurement capabilities. Together, these certifications underscore the reliability and quality of our products for diverse applications.

certificate

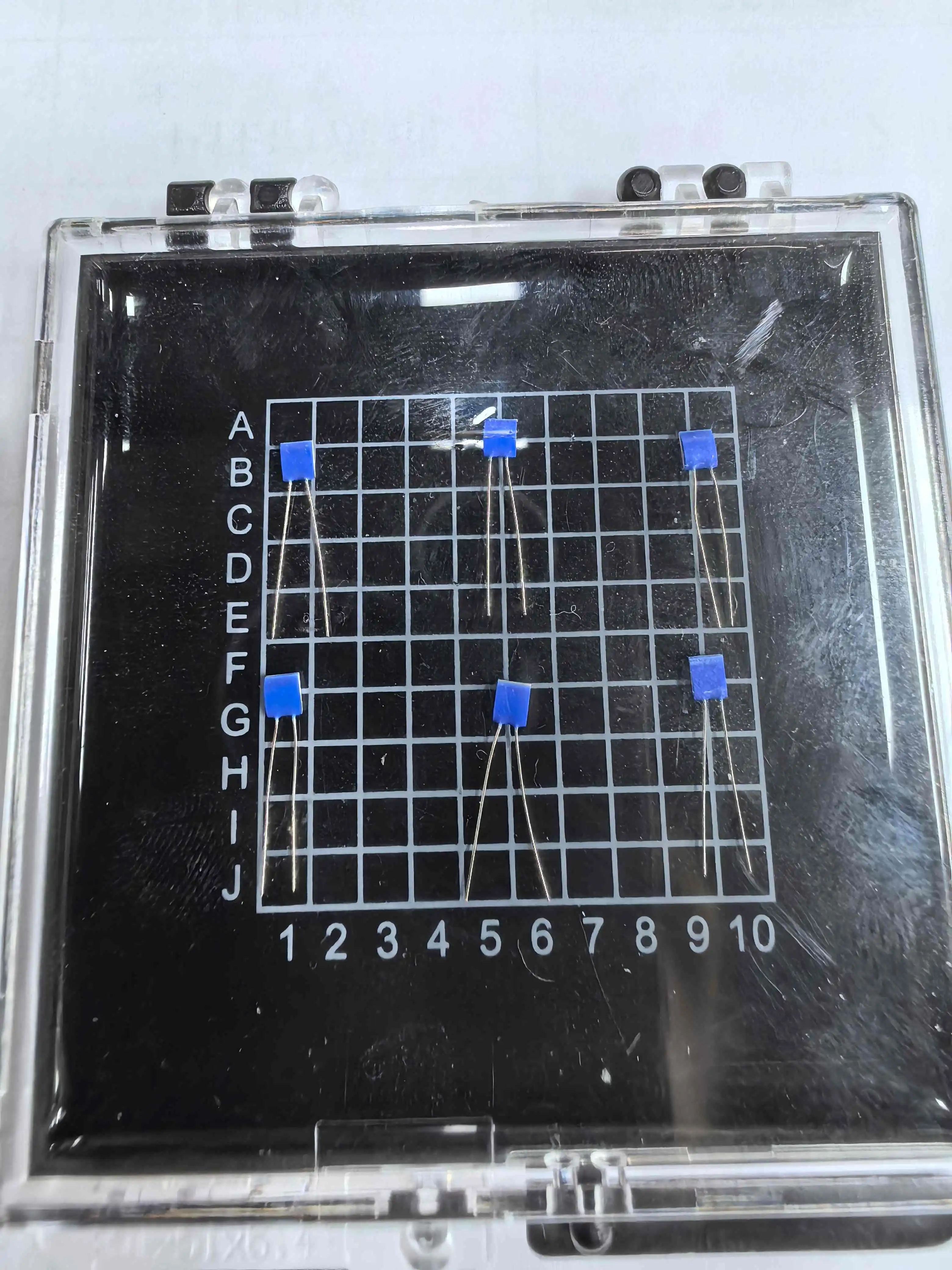

Packaging & Delivery

Our vacuum-sealed packaging serves as a highly effective safeguard, creating an impermeable barrier that ensures contamination-free delivery of our products. By eliminating air and forming an airtight seal, this packaging method protects against moisture, dust, and other environmental pollutants that could potentially compromise the integrity of the contents. Whether you're ordering sensitive electronics, precision components, or any item that requires pristine handling, our vacuum-sealed packaging offers peace of mind. Additionally, we understand the importance of timely delivery. That's why we offer expedited shipping options, allowing you to receive your order as quickly as possible, without sacrificing the quality of protection provided by our packaging.

FAQs

Can I request custom lead lengths?
Yes! We offer leads from 5mm to 50mm to fit your assembly needs.
What's the minimum order quantity (MOQ)?
MOQ starts at 500 units, with discounts for bulk orders.
Are your sensors suitable for FDA-regulated devices?
Absolutely. Our medical-grade sensors comply with FDA and ISO 13485.
How do I calibrate these sensors?
Each chip comes pre-calibrated, with optional NIST-traceable certificates.
What's your lead time?
Standard orders ship in 2–3 weeks; rush orders available.

Contact Us

Need a Platinum Temperature Sensor Chip that combines accuracy, durability, and compliance? Contact our team at sales11@xatzd.com for quotes, samples, or technical specs. Let's build a smarter future together!
