Calibration Standard Sensor

Name: Calibration Standard Sensor
SKU: N/A

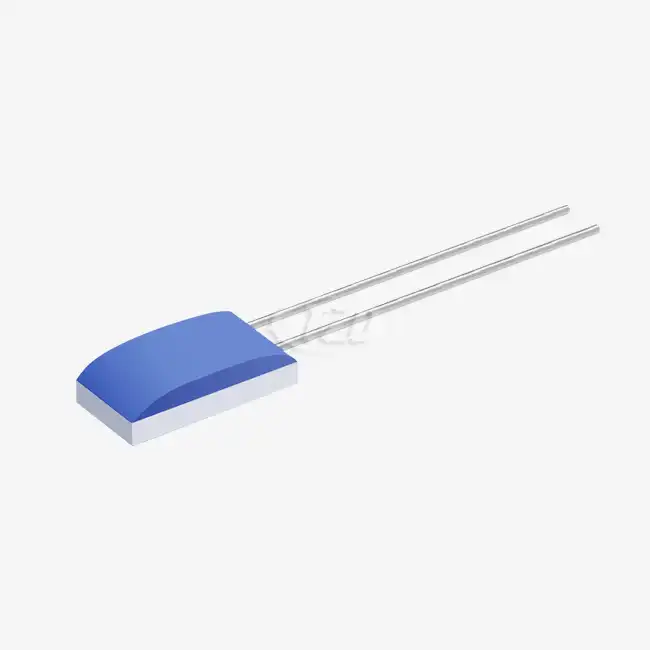

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 50°C
Response Time:[Flow (V=0.4 m/s)]t0.5 = 0.05 s,t10 = 0.15 s[Airflow (V=2 m/s)]t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)

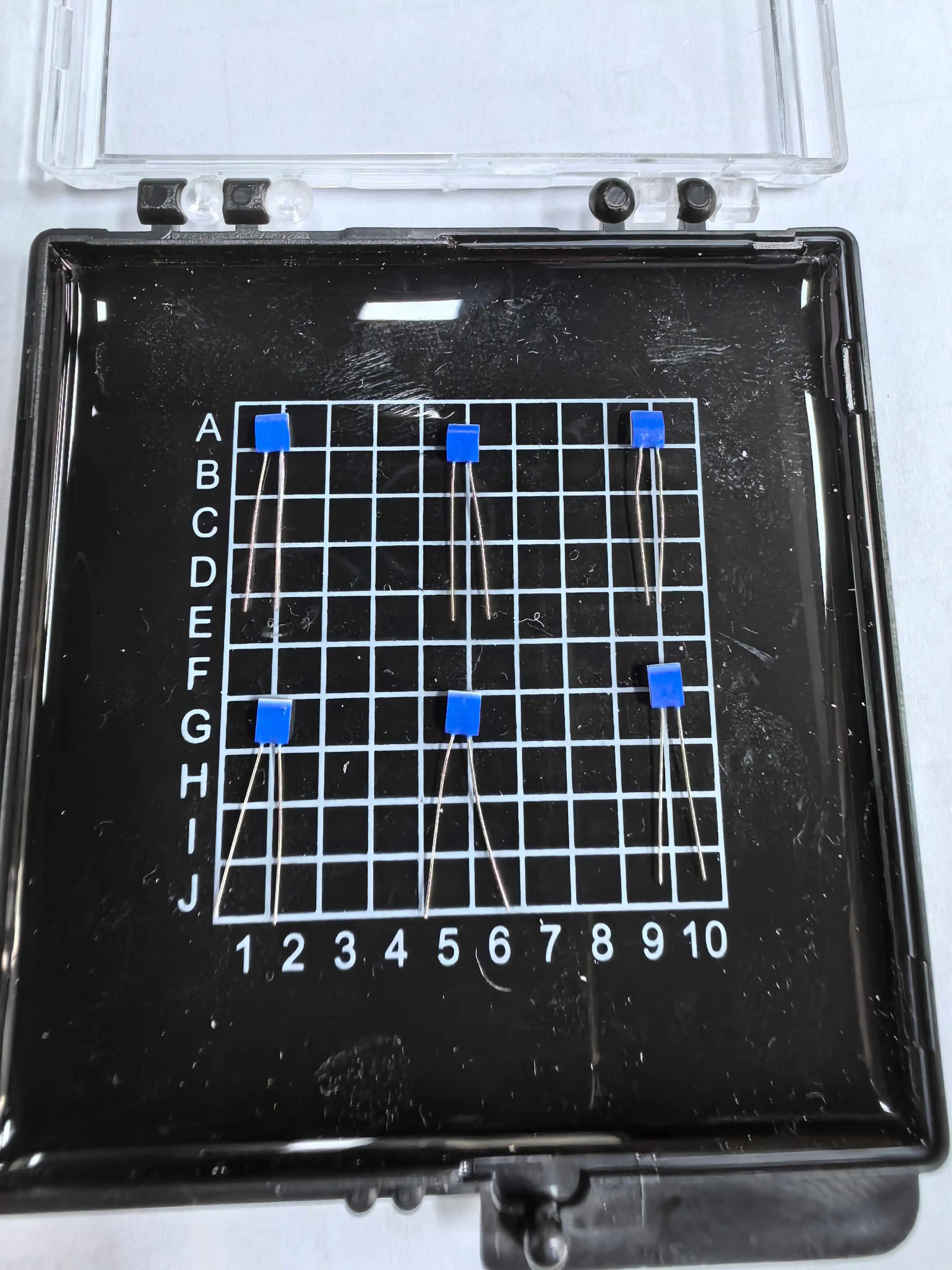

Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Xi'an Tongzida Technology Co., Ltd.: Your Trusted Calibration Standard Sensor Manufacturer

At Xi'an Tongzida Technology Co., Ltd., we specialize in manufacturing high-precision Calibration Standard Sensors that meet the most demanding requirements across various industries. Our progressed lean film platinum resistance thermometers offer unparalleled precision, steadiness, and unwavering quality for basic temperature estimation applications. With our commitment to advancement and quality, we've gotten to be a driving provider of items trusted by experts around the world.

Calibration Standard Sensors

Introduction

Our items are outlined to give the most elevated level of precision and execution for temperature calibration and estimation. Utilizing progressed lean film innovation and accuracy fabricating forms, these sensors offer remarkable soundness, quick reaction times, and wide temperature ranges. Whether you're in aviation, car, or mechanical fabricating, our sensors provide the exactness you require for basic operations.

Why Choose Us？

Industry-leading accuracy and stability
Customizable solutions to meet specific requirements
ISO 9001 certified quality management system
Extensive experience in sensor technology
Competitive pricing for bulk orders
Comprehensive technical support and after-sales service

Specification

Parameter	Value
Element Type	Thin Film Platinum Resistance Thermistor
Element Dimensions	2.0mm x 2.3mm x 1.0mm, 1.6mm x 2.0mm x 1.0mm, 1.2mm x 2.0mm x 1.0mm
Lead Specifications	Length: 10 mm, Diameter: 0.2 mm
Lead Material	Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Temperature Coefficient (TCR)	3850 ppm/°C
Operating Current	0.3 ~ 1 mA
Long-Term Stability	≤±0.04% resistance drift after 1000 hours at 50°C
Insulation Resistance	100 MΩ at 20°C, >2 MΩ at 500°C
Vibration Resistance	≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance	≥100g acceleration (8 ms half-sine wave)

Reference Selection

Model	Temperature Range	Accuracy Class
CS-100	-50°C to +200°C	Class A
CS-200	-200°C to +600°C	Class AA
CS-300	0°C to +850°C	1/10 DIN

Features

High accuracy and long-term stability
Fast response time
Wide temperature range
Excellent vibration and shock resistance
Customizable lead materials and lengths
Vacuum packaging for enhanced protection

Applications

Our Calibration Standard Sensors are ideal for various applications, including:

Industrial process control
Aerospace and automotive testing
Medical equipment calibration
Research and development laboratories
Energy and power plant monitoring
Food and beverage processing

Certificates

Our commitment to quality is backed by:

ISO 9001:2015 certification
ROHS compliance
CE marking

Packing and Delivery

We ensure secure packaging and efficient delivery for all orders.

FAQ

Q1: What is the typical lead time for products?
A1: Standard models are usually available within 2-3 weeks. Custom orders may take 4-6 weeks.

Q2: Do you offer calibration certificates with your sensors?
A2: Yes, we provide traceable calibration certificates upon request.

Q3: Can you customize the sensor specifications for our specific application?
A3: Absolutely. We offer customization services to meet your unique requirements.

Q4: What is your minimum order quantity?
A4: Our minimum order quantity varies by product. Please contact us for details.

Q5: Do you offer technical support for sensor integration?
A5: Yes, our technical team is available to assist with integration and troubleshooting.

Contact Us

Ready to elevate your temperature measurement capabilities with our Calibration Standard Sensors? Contact our deals group at sales11@xatzd.com for personalized help and to examine your particular needs. Our specialists are here to offer assistance you discover the idealize arrangement for your application.
