High precision threaded thermistor temperature sensor

Name: High precision threaded thermistor temperature sensor
SKU: N/A

Nominal Resistance :Pt100,,Pt1000,Pt500
Wire Configuration :Two-wire system,Three-wire system,Four-wire system
Lead Wire Material:FEP (Fluorinated Ethylene Propylene)
Silicone Rubber,PTFE (Polytetrafluoroethylene),PVC (Polyvinyl Chloride),Metal Braided High-Temperature Wire
Temperature Coefficient :TK = 3850 ppm/K
Self-Heating Coefficient:0.4 K/mW (at 0°C)
Accuracy Classes :1/30B Class: Tolerance ≤ ±0.01°C (0°C to +100°C)
1/10B Class: Tolerance ≤ ±0.03°C (0°C to +100°C)
1/3B Class: Tolerance ≤ ±0.10°C (0°C to +150°C)
A Class: Tolerance ≤ ±0.15°C (-50°C to +300°C)
B Class: Tolerance ≤ ±0.30°C (-70°C to +300°C)
Operating Current:100Ω: 0.3~1 mA
500Ω: 0.1~0.7 mA
1000Ω: 0.1~0.3 mA
Insulation Resistance:≥100 MΩ @ 500 V DC & 20°C
Pressure Resistance Standard:≥0.5 MPa

Send Inquiry

Download

Product Description

High Precision Threaded Thermistor Temperature Sensor Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. specializes in manufacturing high-precision threaded thermistor High precision threaded thermistor temperature sensors that meet rigorous industrial standards. With over a decade of expertise in thin-film platinum resistor technology, we combine cutting-edge design, ISO9001-certified production, and customizable solutions to deliver sensors trusted by automotive, aerospace, and medical industries worldwide.

High precision threaded thermistor temperature sensors

Why Choose Our High Precision Threaded Thermistor Temperature Sensor?

Unmatched Accuracy: Achieve ±0.01°C tolerance (1/30B Class) for critical temperature monitoring.
Wide Temperature Range: Perform reliably from -200°C to +850°C.
Robust Durability: Withstand 100g impacts, 40g vibrations, and harsh chemicals.
Customizable Designs: Choose thread sizes (1.2–4.0mm), lead materials (Pt, FEP, PTFE), and wire configurations.
Global Compliance: RoHS, CE, and IEC60751-certified for seamless integration.

Specifications

Parameter	Details
Nominal Resistance	Pt100, Pt500, Pt1000
Temperature Coefficient	3850 ppm/K
Accuracy Classes	1/30B, 1/10B, 1/3B, A, B
Lead Wire Material	FEP, Silicone Rubber, PTFE, PVC, Metal Braided
Insulation Resistance	≥100 MΩ @ 500V DC & 20°C
Response Time	≤0.05 seconds
Operating Current	Pt100: 0.3–1 mA; Pt500: 0.1–0.7 mA; Pt1000: 0.1–0.3 mA

Reference Selection Guide

Model	Resistance	Wire Config	Lead Material	Typical Use Case
TT-100M	Pt100	4-wire	FEP	Lab Equipment
TT-500A	Pt500	3-wire	PTFE	Industrial Process Control
TT-1000H	Pt1000	2-wire	Metal Braided	Automotive Battery Systems

Key Features

Ultra-Fast Response: Detect temperature changes in ≤0.05 seconds for real-time control.
Anti-Corrosion Design: PTFE or FEP insulation resists moisture, acids, and solvents.
Threaded Housing: Easy installation in pipes, engines, or machinery with standardized threads.
Low Self-Heating: 0.4 K/mW coefficient ensures minimal measurement interference.

Applications

Our high-precision threaded thermistor High precision threaded thermistor temperature sensor is ideal for:

Medical: Sterilization autoclaves, MRI cooling systems.
Automotive: EV battery packs, exhaust gas monitoring.
Aerospace: Jet engine thermal management.
HVAC: Smart building climate control.

Certifications

All of our sensors are meticulously engineered to comply with the highly regarded IEC60751, ISO9001, RoHS, and CE standards. The IEC60751 certification ensures that our sensors meet strict international norms for temperature measurement, guaranteeing accuracy and reliability. ISO9001 validates our robust quality management system, assuring consistent excellence throughout the production process. RoHS compliance demonstrates our dedication to environmental responsibility by restricting the use of hazardous substances. Meanwhile, the CE mark confirms that our sensors adhere to European Union safety, health, and environmental protection regulations. Collectively, these certifications make our sensors a trusted choice for customers worldwide, offering top - tier performance and regulatory compliance.

certificate

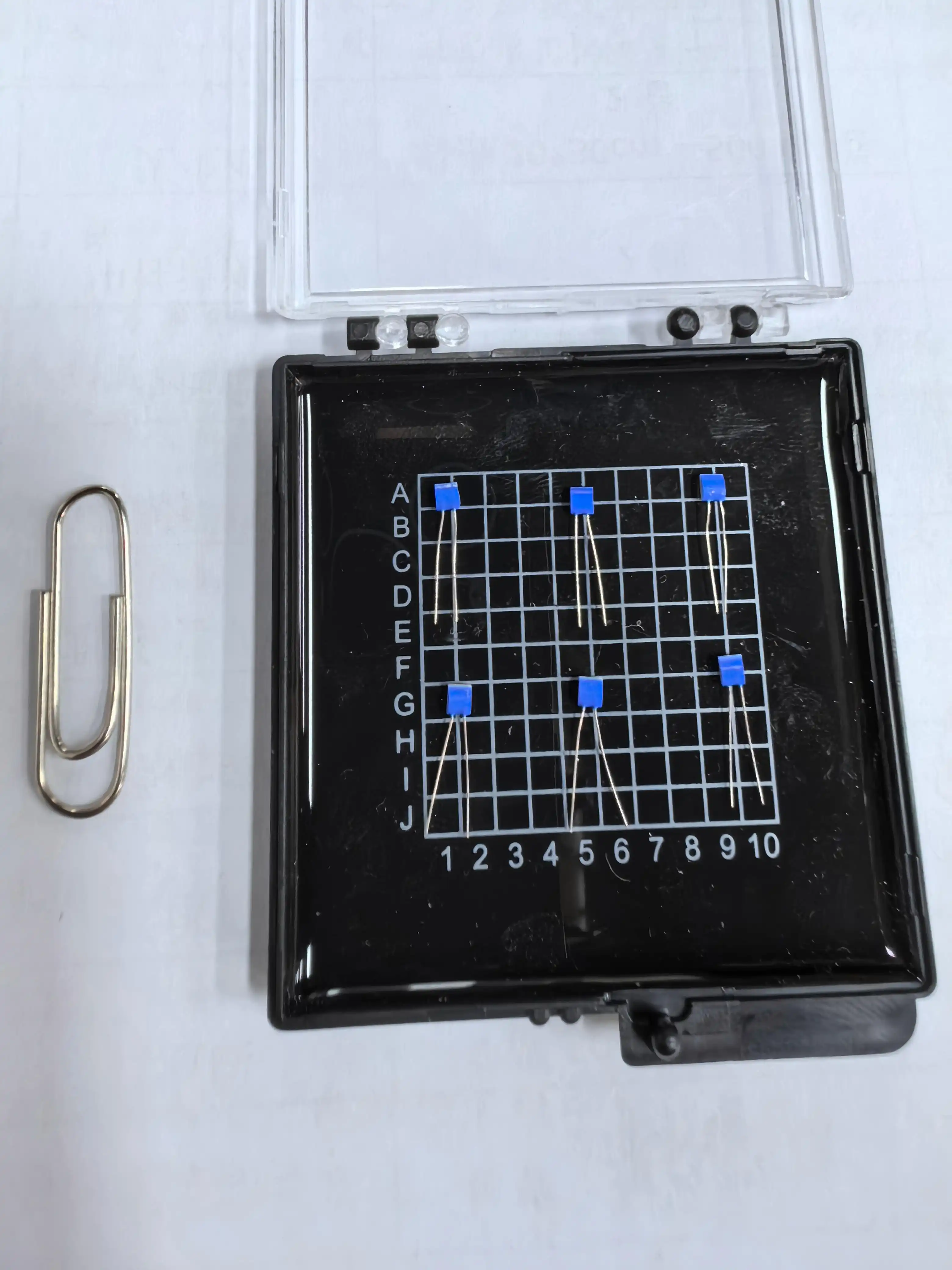

Packing and Delivery

Our High precision threaded thermistor temperature sensor is enveloped in vacuum-sealed packaging, a meticulous process that creates an impermeable barrier, shielding them from external elements such as moisture, dust, and oxidation. This protective measure not only preserves the sensors' integrity during transit but also ensures their functionality remains uncompromised upon arrival. Leveraging an extensive global logistics network, we guarantee the shipment of all orders within a swift 5–7 business days. Whether your location is near or far, our commitment to timely delivery ensures that you receive your sensors promptly, enabling you to seamlessly integrate them into your projects without unnecessary delays.

FAQs

Q: Can I request custom thread sizes?
A: Yes! We offer threads from 1.2mm to 4.0mm, tailored to your equipment.

Q: What's the lead time for bulk orders?
A: Most orders ship within 10 days. Expedited options are available.

Q: Do you provide calibration certificates?
A: Yes, NIST-traceable certificates are included upon request.

Q: How do I choose between 2-wire and 4-wire configurations?
A: 4-wire systems eliminate lead resistance errors for ultra-precise measurements.

Q: Are your sensors compatible with IoT platforms?
A: Absolutely. We support integration with SCADA, PLCs, and cloud-based systems.
