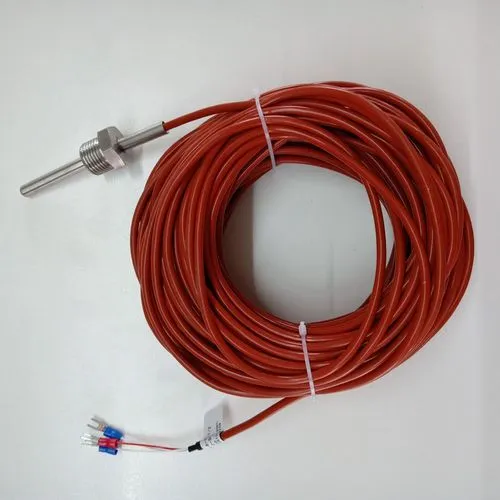

Motor Heater Temperature Sensor

Name: Motor Heater Temperature Sensor
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 50°C
Response Time:[Flow (V=0.4 m/s)]t0.5 = 0.05 s,t10 = 0.15 s[Airflow (V=2 m/s)]t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Xi'an Tongzida Technology Co., Ltd.: Your Trusted Motor Heater Temperature Sensor Manufacturer

As a leading Motor Heater Temperature Sensor manufacturer and supplier, Xi'an Tongzida Technology Co., Ltd. offers cutting-edge solutions for precise temperature monitoring in motor heating applications. Our advanced thin film platinum resistance technology ensures superior accuracy, reliability, and long-term stability, making us the preferred choice for industries demanding excellence in temperature measurement.

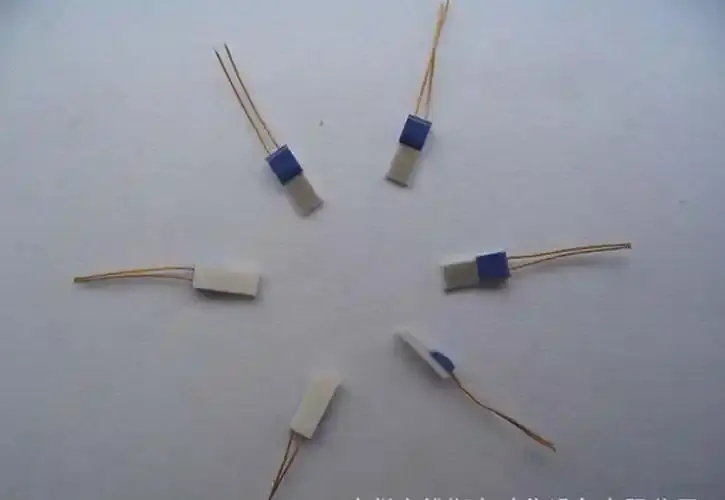

Motor Heater Temperature Sensor

Introduction

In the world of industrial manufacturing, automotive engineering, and energy systems, precise temperature control is crucial for optimal performance and safety. Our products are designed to meet the most stringent requirements, providing accurate and responsive temperature readings in challenging environments.

Why Choose Us？

Industry-Leading Technology: Our thin film platinum resistance thermistors offer unparalleled accuracy and stability.
Customization Options: We provide tailored solutions to meet your specific needs.
Quality Assurance: Rigorous testing and quality control processes ensure product reliability.
Competitive Pricing: Benefit from cost-effective solutions without compromising on quality.
Expert Support: Our team of specialists is ready to assist you with technical guidance and after-sales support.

Specifications

Parameter	Value
Element Type	Thin Film Platinum Resistance Thermistor
Element Dimensions	2.0mm x 2.3mm x 1.0mm, 1.6mm x 2.0mm x 1.0mm, 1.2mm x 2.0mm x 1.0mm
Lead Specifications	Length: 10 mm, Diameter: 0.2 mm
Lead Material	Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Temperature Coefficient (TCR)	3850 ppm/°C
Operating Current	0.3 ~ 1 mA
Long-Term Stability	≤±0.04% resistance drift after 1000 hours at 50°C

Reference Selection

Application	Recommended Model
Electric Vehicle Motors	MHT-2023-PtNi
Industrial HVAC Systems	MHT-1620-AgPd
Aerospace Components	MHT-1220-Pt

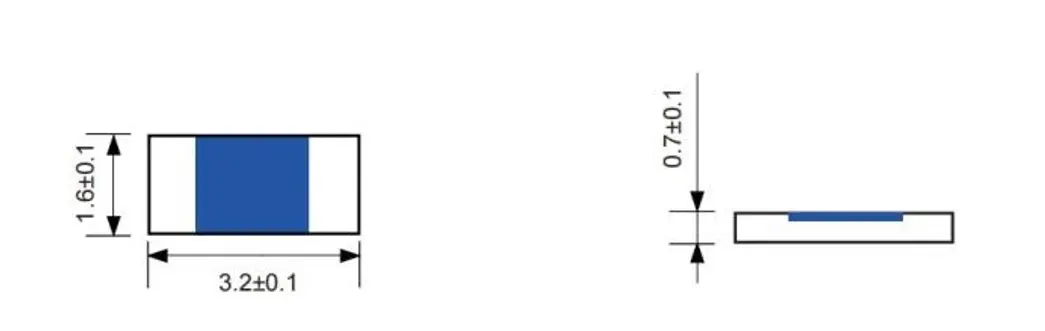

Motor Heater Temperature Sensor

Features

High Accuracy: Temperature coefficient of 3850 ppm/°C for precise measurements.
Rapid Response: Response times as low as 0.05 seconds in flowing conditions.
Robust Design: Vibration resistance of ≥40g and shock resistance of ≥100g.
Versatile Temperature Range: Suitable for applications from -200°C to +850°C.
Excellent Stability: Long-term drift of ≤±0.04% ensures consistent performance.

Applications

Our Motor Heater Temperature Sensors find extensive use in:

Electric vehicle motor thermal management
Industrial machinery temperature control
HVAC system optimization
Aerospace engine monitoring
Power generation equipment
Consumer appliance safety systems

By integrating our sensors into your products, you can ensure optimal performance, enhance safety, and improve energy efficiency across various applications.

Certificates

We maintain the highest quality standards, evidenced by our ISO 9001, RoHS, and CE certifications.

Motor Heater Temperature Sensor

Packing and Delivery

Our sensors are vacuum-sealed for protection, with custom packaging options available.

FAQ

Q: What is the minimum order quantity for products?
A: Our MOQ is flexible and can be discussed based on your specific requirements.

Q: Can you provide customized solutions for unique applications?
A: Yes, we offer tailored sensor designs to meet your exact specifications.

Q: What is the lead time for bulk orders?
A: Typical lead times range from 2-4 weeks, depending on order volume and customization.

Q: Do you offer technical support for integration?
A: Our expert team provides comprehensive technical assistance throughout the integration process.

Q: Are your sensors compatible with standard control systems?
A: Yes, our sensors are designed for seamless integration with most industry-standard control systems.

Contact Us

Ready to enhance your temperature sensing capabilities? Contact our sales team at sales11@xatzd.com for personalized assistance and to discuss how our Motor Heater Temperature Sensors can benefit your operations.
