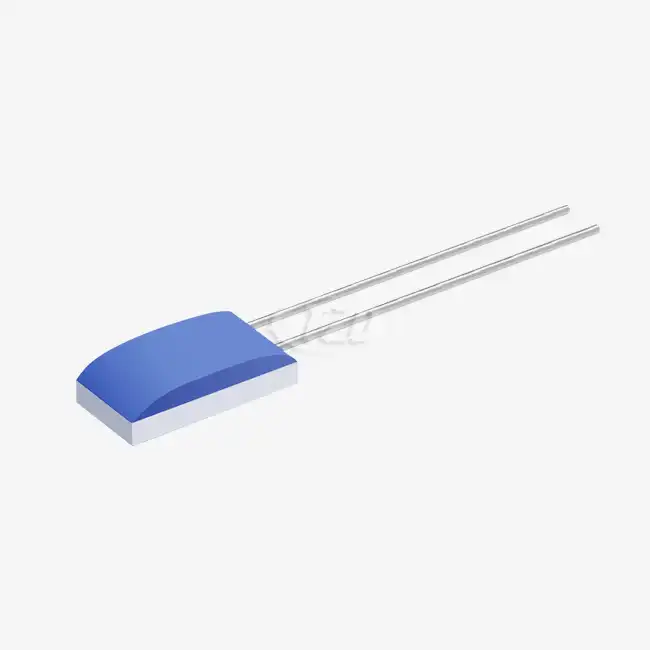

Pt100 Thin Film RTD

Name: Pt100 Thin Film RTD
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 500°C
Response Time:Flow (V=0.4 m/s):t0.5 = 0.05 s,t10 = 0.15 s;Airflow (V=2 m/s):t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Pt100 Thin Film RTD Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. is a leading Pt100 Thin Film RTD manufacturer & supplier, specializing in high-performance sensors trusted by industries worldwide. Our sensors combine cutting-edge thin-film technology, IEC60751 compliance, and customizable designs to deliver unmatched accuracy (±0.01Ω), durability (40g vibration resistance), and stability (≤0.04% drift).

Pt100 Thin Film RTD

Why Choose Our Pt100 Thin Film RTD?

Wide Temperature Range: With the ability to accurately measure temperatures from the extreme cold of -200°C to the intense heat of +850°C, you can rely on it in diverse conditions.
Ultra-Fast Response: Boasting an incredibly rapid 0.05-second reaction time in flowing media, it provides instant feedback for dynamic and real-time applications.
Customizable Options: Enjoy the flexibility to customize lead materials like platinum-nickel or silver-palladium, select sizes between 1.2mm–4.0mm, and choose suitable packaging.
Certified Reliability: Our production adheres to global standards, being ISO9001, CE, and RoHS-certified, ensuring consistent quality and safety worldwide.

Specifications at a Glance

Parameter	Details
Element Dimensions	2.0x2.3x1.0mm, 1.6x2.0x1.0mm, 1.2x2.0x1.0mm
Lead Material	Platinum-Nickel (default), Silver-Palladium
Temperature Coefficient	3850 ppm/°C
Insulation Resistance	100 MΩ (20°C), >2 MΩ (500°C)
Long-Term Stability	≤±0.04% drift after 1000h at 500°C
Shock Resistance	100g acceleration (8ms half-sine wave)

Reference Selection Guide

Application	Recommended Model	Key Benefit
Industrial Automation	TZD-PT100-2.0	High vibration resistance
Medical Sterilization	TZD-PT100-1.6	Ultra-low drift, compact size
Aerospace Testing	TZD-PT100-1.2	Extreme temperature stability

Key Features of Our Pt100 Thin Film RTD

Military-Grade Durability: Withstand 40g vibrations and 100g shocks for harsh environments.
Minimal Self-Heating: 0.4°C/mW coefficient ensures measurements stay true.
Vacuum Packaging: Protects sensors during transit; other formats available.
Multi-Industry Compliance: Ideal for automotive, pharma, and energy sectors.

Where Our Sensors Excel

Industrial: Monitor machinery health in manufacturing or HVAC systems.
Medical: Ensure precision in lab equipment and sterilization devices.
Aerospace: Track engine temps during R&D or flight testing.
Energy: Safeguard turbines, reactors, and oil/gas pipelines.

Certificates & Quality Assurance

Every single sensor in our inventory undergoes an extremely rigorous and comprehensive testing process. This meticulous evaluation encompasses multiple performance aspects, including functionality, durability, and accuracy, to ensure that only the highest quality products reach our customers. To further validate our commitment to excellence, all our sensors proudly hold ISO9001, CE, and RoHS certifications. The ISO9001 certification attests to our adherence to international quality management standards, while the CE mark ensures compliance with European health, safety, and environmental protection requirements. Additionally, the RoHS certification confirms that our sensors are free from hazardous substances, making them safe for both users and the environment.

certificate

Packing & Delivery

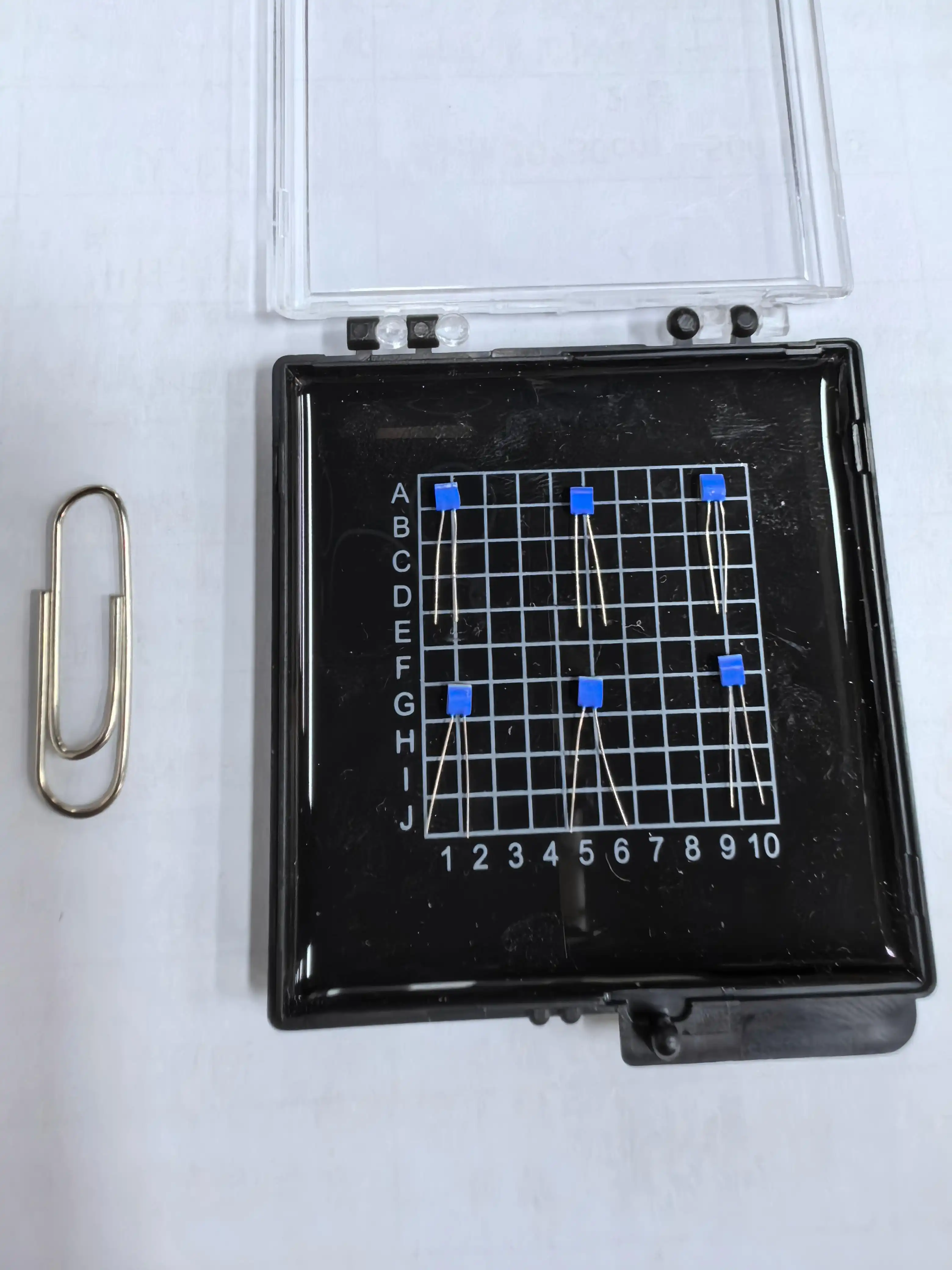

Our Pt100 Thin Film RTDs are meticulously shipped in vacuum-sealed packaging that provides robust anti-static protection, ensuring they remain in pristine condition during transit. This specialized packaging creates an airtight environment, shielding the items from moisture, dust, oxidation, and electrostatic discharge, all of which can potentially damage sensitive components. For customers with large requirements, we fully support bulk orders. Whether you need dozens or thousands of units, our streamlined processes and dedicated logistics team ensure that your bulk shipments are handled with the same care and precision as individual orders, reaching you in a timely and secure manner.

FAQ

Q: Can I request lead wires with custom lengths?
A: Yes! We offer lengths from 10mm to 500mm.

Q: What's the minimum order quantity?
A: MOQ starts at 100 units for standard models.

Q: Do you provide calibration certificates?
A: Traceable NIST certificates are available.

Q: How long is your production lead time?
A: 2–4 weeks for most orders; expedited options exist.

Q: Are your sensors compatible with PLC systems?
A: Absolutely—works with Siemens, Allen-Bradley, and more.

Contact Us for Custom Solutions

Need a Pt100 Thin Film RTD that fits your exact needs? Email sales11@xatzd.com for quotes, samples, or technical support. Let's engineer precision together!
