Surface mounted thermistor temperature sensor

Name: Surface mounted thermistor temperature sensor
SKU: N/A

RTD Types:Pt100,Pt1000,Pt500
Temperature Range:0°C to +150°C;-50°C to +300°C;-70°C to +300°C
Wire Configuration:Two-wire system；Three-wire system；Four-wire system
Lead Wire Materials：FEP (Fluorinated Ethylene Propylene)；Silicone Rubber；PTFE (Polytetrafluoroethylene)；PVC (Polyvinyl Chloride)；Metal Braided High-Temperature Wire
Temperature Coefficient：TK = 3850 ppm/K
Self-Heating Coefficient：0.4 K/mW (at 0°C)
Accuracy Classes：
1/3B Class: Tolerance ≤ ±0.10°C (0°C to +150°C)
A Class: Tolerance ≤ ±0.15°C (-50°C to +300°C)
B Class: Tolerance ≤ ±0.30°C (-70°C to +300°C)
Operating Current：100Ω: 0.3~1 mA
500Ω: 0.1~0.7 mA
1000Ω: 0.1~0.3 mA
Insulation Resistance：≥100 MΩ @ 500 V DC (measured at 20°C)
Pressure Resistance Standard：≥0.5 MPa

Send Inquiry

Download

Product Description

Surface Mounted Thermistor Temperature Sensor Manufacturer And Supplier

At Xi'an Tongzida Technology Co., Ltd., we specialize in designing surface mounted thermistor temperature sensors that deliver unmatched accuracy for automotive, medical, and industrial applications. With ISO 9001, CE, and RoHS certifications, our automated production lines ensure consistent quality, while our customizable solutions empower your most demanding projects.

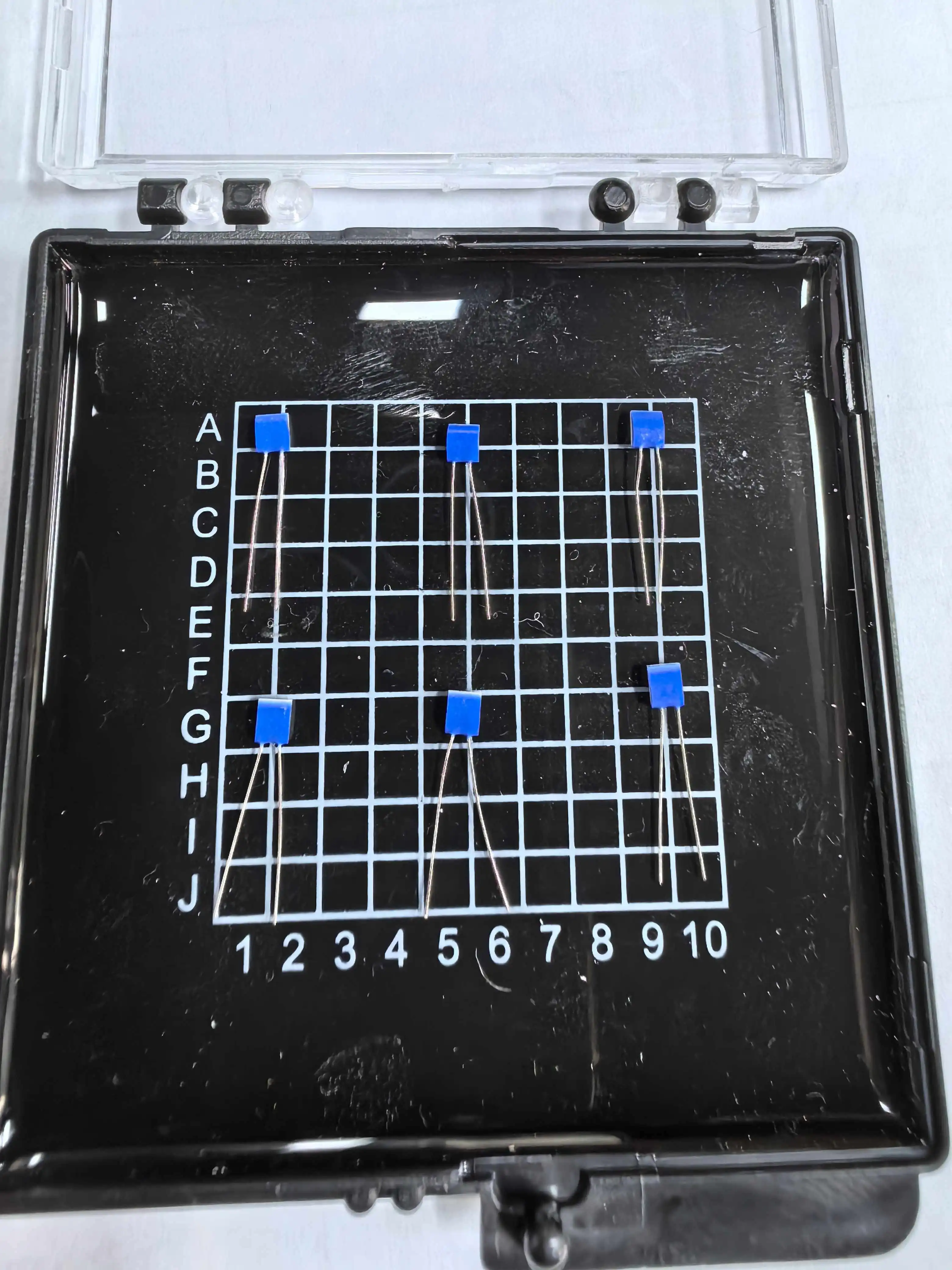

surface mounted thermistor temperature sensors

Why Choose Our Surface Mounted Thermistor Temperature Sensors?

High Precision: Achieve ±0.10°C accuracy (1/3B class) for critical systems.
Wide Compatibility: Supports SMT processes for seamless PCB integration.
Durability: Withstands vibrations (40g) and extreme temperatures (-70°C to +300°C).
Global Compliance: Meets AEC-Q200 (automotive) and ISO 13485 (medical) standards.

Key Specifications

Parameter	Details
RTD Types	Pt100, Pt500, Pt1000
Temperature Range	-70°C to +300°C (broadest coverage)
Wire Configuration	2-wire, 3-wire, 4-wire systems
Lead Materials	FEP, PTFE, Silicone Rubber, PVC, Metal Braided High-Temp Wire
Self-Heating	0.4 K/mW @ 0°C
Insulation Resistance	≥100 MΩ @ 500 V DC

Reference Selection Guide

Application	Recommended Model	Key Benefit
EV Battery Management	PT1000 (4-wire)	Ultra-low drift in high-vibration environments
Medical Diagnostics	Pt100 (3-wire)	±0.10°C accuracy for lab-grade results
Industrial Robotics	Pt500 (2-wire)	Cost-effective for bulk automation

Features Designed for Performance

Fast Response: Detect temperature changes in 0.05 seconds.
Low Self-Heating: Minimize measurement interference.
Custom Sizing: Options from 1.2mm to 4.0mm for space-constrained designs.
Vacuum-Sealed Packaging: Ensures longevity in harsh conditions.

Applications Across Industries

Automotive: Battery thermal management, engine control units.
Healthcare: Wearable monitors, MRI machines, sterilization systems.
Industrial IoT: Predictive maintenance, HVAC controls, robotics.
Aerospace: Avionics cooling, fuel temperature monitoring.

Certifications & Quality Assurance

All of our Surface mounted thermistor temperature sensors are subjected to an extensive and stringent testing regime designed to ensure compliance with the highly regarded IEC 60751, AEC-Q200, and ISO 13485 standards. IEC 60751 certification validates their precision and reliability in temperature measurement, crucial for accurate readings across various applications. AEC-Q200 compliance guarantees their suitability for the demanding automotive environment, ensuring they can withstand extreme conditions, vibrations, and temperature fluctuations typical of vehicles. Meanwhile, ISO 13485 certification, specifically tailored for medical devices, attests to their safety and performance standards when used in healthcare settings. This comprehensive testing and certification process assures customers of our sensors' quality, consistency, and suitability for diverse and critical applications.

certificate

Packaging & Delivery

Our products are meticulously safeguarded using vacuum-sealed anti-static packaging, which provides a dual-layer defense mechanism. The vacuum-sealing creates an airtight environment that shields against moisture, dust, and oxidation, while the anti-static feature protects sensitive components from electrostatic discharge. Backed by a comprehensive global logistics network, we ensure seamless delivery across the world. Whether your destination is in a bustling metropolis or a remote location, our reliable partners guarantee secure and efficient transit. For bulk orders, we understand the importance of timely delivery. That's why we offer lead times as short as 2 weeks, allowing you to receive your large-scale shipments promptly and keep your operations running smoothly.

FAQs

Q: Can you customize lead wire materials for high-temperature environments?
A: Yes! We offer FEP, PTFE, and metal-braided options rated up to +300°C.
Q: Do you provide technical documentation for compliance audits?
A: Absolutely. Datasheets, RoHS, and material certifications are included.
Q: What's the MOQ for custom designs?
A: MOQ starts at 1,000 units, with discounts for 10,000+ orders.
Q: How do you ensure supply chain stability?
A: We maintain 6+ months of raw material stock and dual-source critical components.
Q: Can sensors be pre-calibrated for specific ranges?
A: Yes – specify your required calibration points during ordering.
