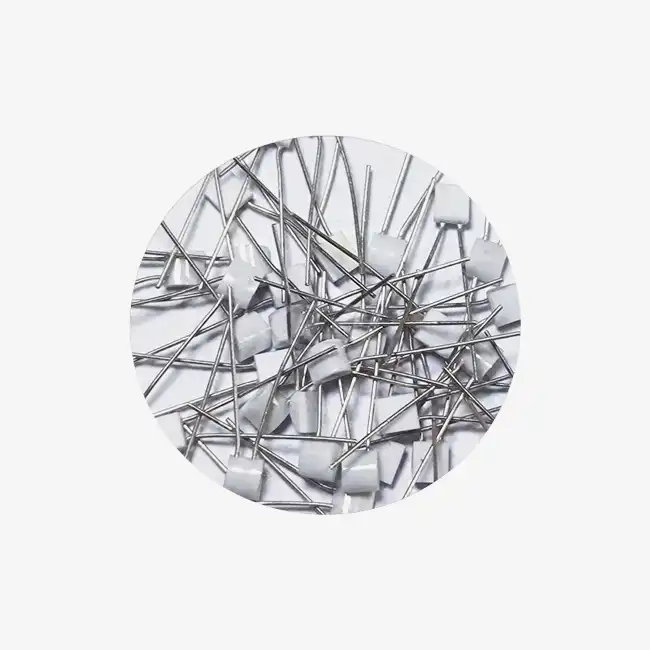

Wire-Bonded Platinum Sensor

Name: Wire-Bonded Platinum Sensor
SKU: N/A

Element Type:Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,2.0mm x 4.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.1–0.3 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 50°C
Response Time:Water Flow (V=0.4 m/s):t₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Wire-Bonded Platinum Sensor Manufacturer And Supplier

At Xi'an Tongzida Technology, we specialize in manufacturing Wire-Bonded Platinum Sensors engineered for accuracy and durability. With ISO 9001, CE, and RoHS certifications, our sensors deliver unmatched performance in harsh environments. Leveraging advanced thin-film technology and automated production, we ensure consistency, reliability, and customization to meet your exact needs.

Wire-Bonded Platinum Sensors

Why Choose Our Wire-Bonded Platinum Sensor?

Industry-Leading Accuracy: Boasting an exceptional ±0.01 Ω accuracy at the 1/30B level, our products are engineered for mission-critical applications where precision is non-negotiable, ensuring reliable and consistent performance.
Wide Temperature Range: Engineered to perform flawlessly, our offerings operate seamlessly across an expansive -200°C to +850°C temperature range, making them ideal for diverse and extreme environments.
Robust Construction: Built with industrial resilience in mind, our products feature a rugged design that can withstand 40g vibrations and 100g shocks, ensuring durability even in the harshest operational conditions.
Customizable Designs: Recognizing unique requirements, we offer customizable designs with multiple sizes from 1.2mm–4.0mm and lead materials like platinum-nickel or pure platinum, tailored to specific project needs.
Rapid Response: In liquid environments, our products shine with a rapid 0.05s reaction time, enabling instant detection of temperature changes and facilitating efficient real-time monitoring.

Wire-Bonded Platinum Sensor Specifications

Parameter	Value
Element Dimensions	2.0mm x 2.3mm x 1.0mm; 2.0mm x 4.0mm x 1.0mm
Lead Material	Platinum-nickel (default); optional silver-palladium/platinum/pure silver
Lead Tensile Strength	≥9 N
Temperature Coefficient	3850 ppm/°C (IEC60751 compliant)
Long-Term Stability	≤±0.04% drift after 1000 hours at 50°C
Response Time (Water Flow)	t₀.₅ = 0.05s; t₀.₉ = 0.15s

Key Features of Our Wire-Bonded Platinum Sensor

Ultra-Stable Performance: Minimize downtime with drift-resistant technology.
Multi-Environment Compatibility: Ideal for liquid, airflow, and vacuum systems.
Self-Heating Management: 0.4°C/mW coefficient ensures minimal measurement interference.
High Insulation Resistance: 100 MΩ at 20°C for safe operation in electrical systems.

Applications of Wire-Bonded Platinum Sensors

Industrial Automation: Monitor machinery health in high-vibration settings.
Aerospace & Automotive: Track engine temperatures under extreme conditions.
Medical Devices: Ensure precise thermal control in diagnostic equipment.
Energy Systems: Optimize HVAC and renewable energy processes.

Certifications & Quality Assurance

Our products are a testament to precision engineering and unwavering quality, fully compliant with ISO 9001, CE, and RoHS standards. The ISO 9001 certification validates our comprehensive quality management system, ensuring consistent excellence in every aspect of production. The CE mark attests to our adherence to strict European health, safety, and environmental regulations, while RoHS compliance underscores our commitment to using only environmentally friendly materials. To further guarantee reliability, these sensors undergo rigorous testing that ensures compliance with IEC60751 for accurate temperature sensing and ASTM E2593 for material and performance integrity, providing customers with sensors they can trust for critical applications.

certificate

Packaging & Delivery

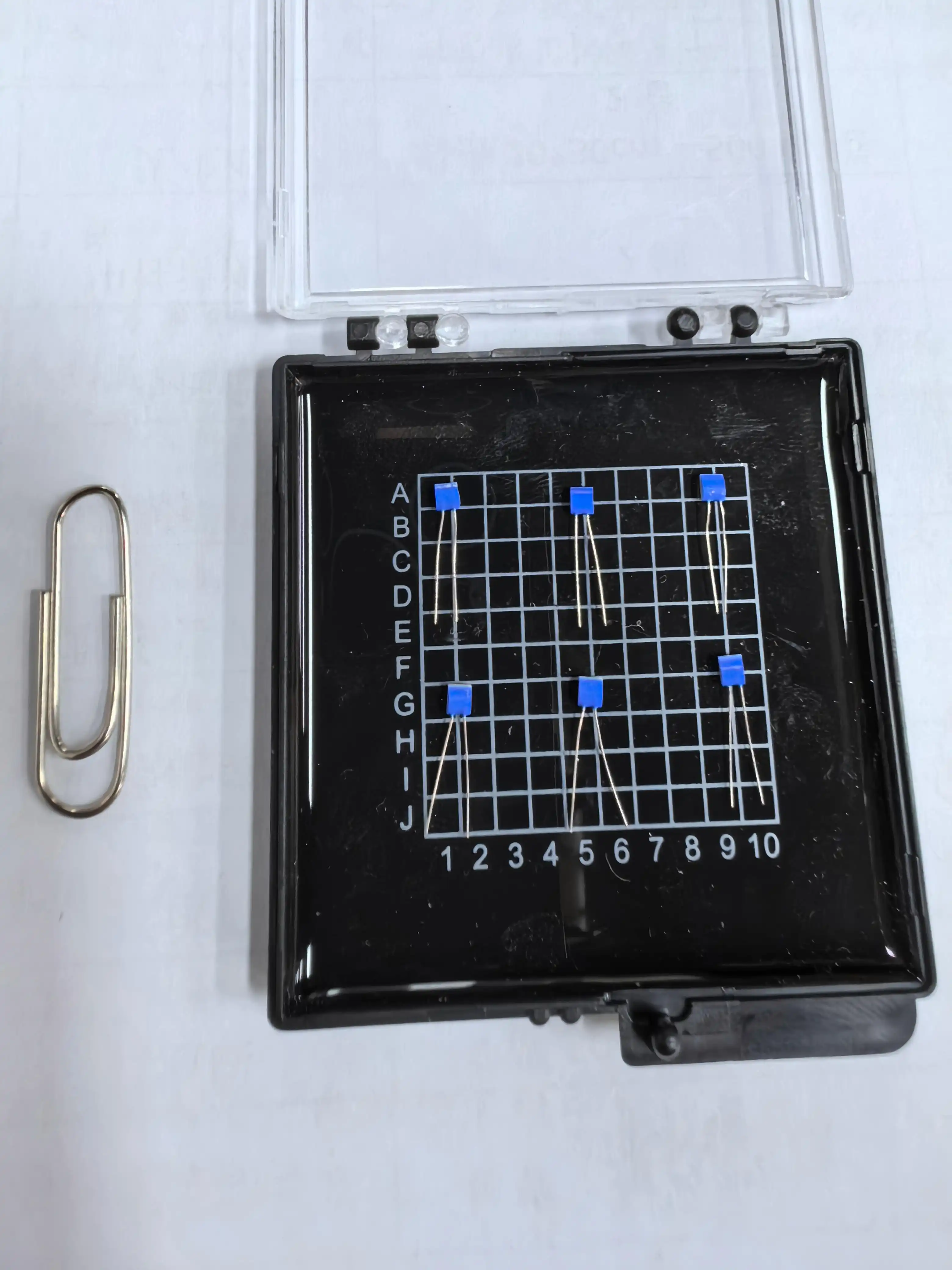

Our Wire-Bonded Platinum Sensors are meticulously vacuum-sealed to provide unparalleled protection. This advanced packaging method creates an airtight barrier that shields the sensors from moisture, dust, oxidation, and other contaminants, ensuring their integrity and performance are maintained during storage and transit. For bulk orders, we offer efficient global shipping services, with a commitment to delivering your products within 5–7 days. Leveraging a robust network of reliable logistics partners, we ensure that your sensors are transported safely and promptly to any destination worldwide, giving you peace of mind and timely access to the products you need.
