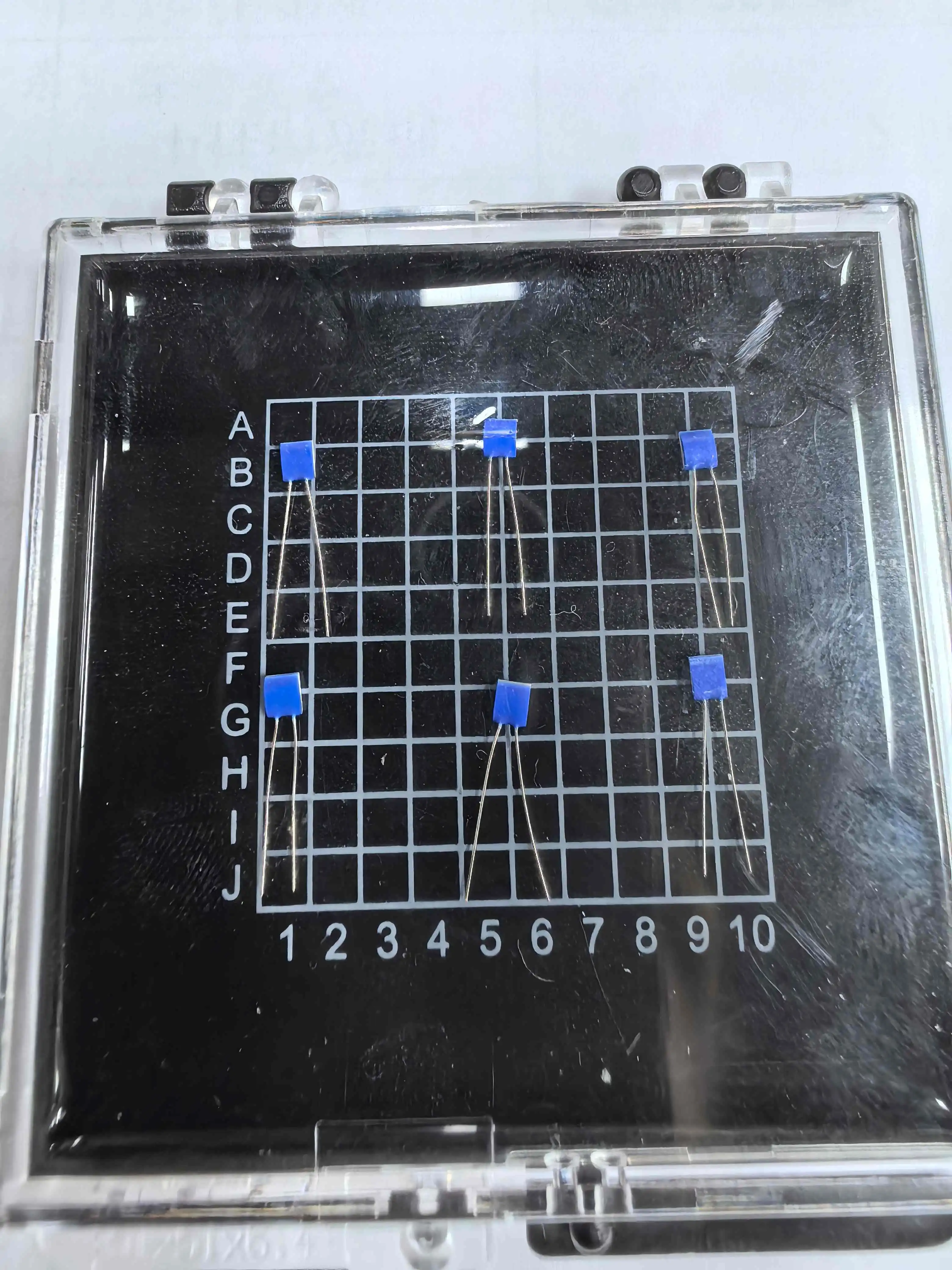

Chip Type Thermal Resistance Temperature Sensor

Name: Chip Type Thermal Resistance Temperature Sensor
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 50°C
Response Time:Flow (V=0.4 m/s):t0.5 = 0.05 s,t10 = 0.15 s;Airflow (V=2 m/s):t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Chip Type Thermal Resistance Temperature Sensor Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. is a leading Chip Type Thermal Resistance Temperature Sensor manufacturer and supplier, specializing in high-performance thin-film platinum sensors. With ISO9001, CE, and RoHS certifications, we deliver unmatched accuracy (±0.01Ω), wide temperature ranges (-200°C to +850°C), and custom solutions for industries like automotive, aerospace, and medical devices.

Chip Type Thermal Resistance Temperature Sensor

Why Choose Our Chip Type Thermal Resistance Temperature Sensor?

Reliability: Engineered in strict accordance with IEC60751 standards, our sensors feature a TCR of 3850ppm/°C and demonstrate ≤0.04% long - term stability. This ensures consistent, accurate performance over extended periods and diverse conditions.
Customization: We offer extensive customization options. You can tailor the sensor size from 1.2mm to 4.0mm, choose lead materials like platinum - nickel or silver - palladium, and even customize the packaging to perfectly suit your specific requirements.
Robust Performance: Built to endure the harshest environments, our sensors can withstand 40g of vibration, 100g of shock, and extreme temperatures. This makes them ideal for rugged, demanding applications where reliability is crucial.
Fast Response: For applications where split - second decisions matter, our sensors deliver a rapid 0.05s reaction time. This enables real - time monitoring and immediate data capture, ensuring optimal performance in critical scenarios.

Specifications

Parameter	Details
Element Dimensions	2.0x2.3x1.0mm, 1.6x2.0x1.0mm, 1.2x2.0x1.0mm
Lead Material	Platinum-Nickel (default); Optional: Silver-Palladium, Pure Platinum
Temperature Coefficient	3850 ppm/°C
Operating Current	0.3–1 mA (self-heating <0.4°C/mW)
Insulation Resistance	100 MΩ at 20°C; >2 MΩ at 500°C
Response Time	0.05s (flow), 3s (airflow)

Reference Selection Table

Industry	Recommended Model	Key Benefit
Automotive	TZ-2.0-PtNi	Vibration resistance, fast response
Medical Devices	TZ-1.6-AgPd	Miniaturized design, high accuracy
Aerospace	TZ-4.0-Pt	Ultra-low temperature stability
Industrial Automation	TZ-2.3-PtNi	High shock resistance, wide temperature range

Key Features

Ultra-Precise: ±0.01Ω accuracy ensures reliable data for critical systems.
Durable Construction: Survives harsh environments with 40g vibration resistance.
Versatile Sizing: Compact designs fit space-constrained applications.
Low Self-Heating: 0.4°C/mW coefficient minimizes measurement interference.

Applications

Our Chip Type Thermal Resistance Temperature Sensor is ideal for:

EV Battery Management: Monitor thermal conditions in real time.
Medical Diagnostics: Ensure precision in wearable health devices.
Aerospace Systems: Track temperatures in extreme conditions.
Industrial HVAC: Optimize energy efficiency with rapid feedback.

Certificates & Compliance

Our Chip Type Thermal Resistance Temperature Sensors are rigorously certified to meet the exacting standards of ISO9001, RoHS, and CE. ISO9001 validates our commitment to maintaining a comprehensive quality management system, ensuring consistent excellence in every aspect of production. RoHS compliance underscores our dedication to environmental responsibility by restricting the use of hazardous substances, while the CE mark confirms adherence to European health, safety, and environmental regulations. Additionally, our offerings comply with IEC60751, a key standard for temperature sensors, and AEC - Q200, which is crucial for automotive applications. This extensive compliance guarantees reliability, safety, and suitability for a wide range of industries, from general manufacturing to the demanding automotive sector.
