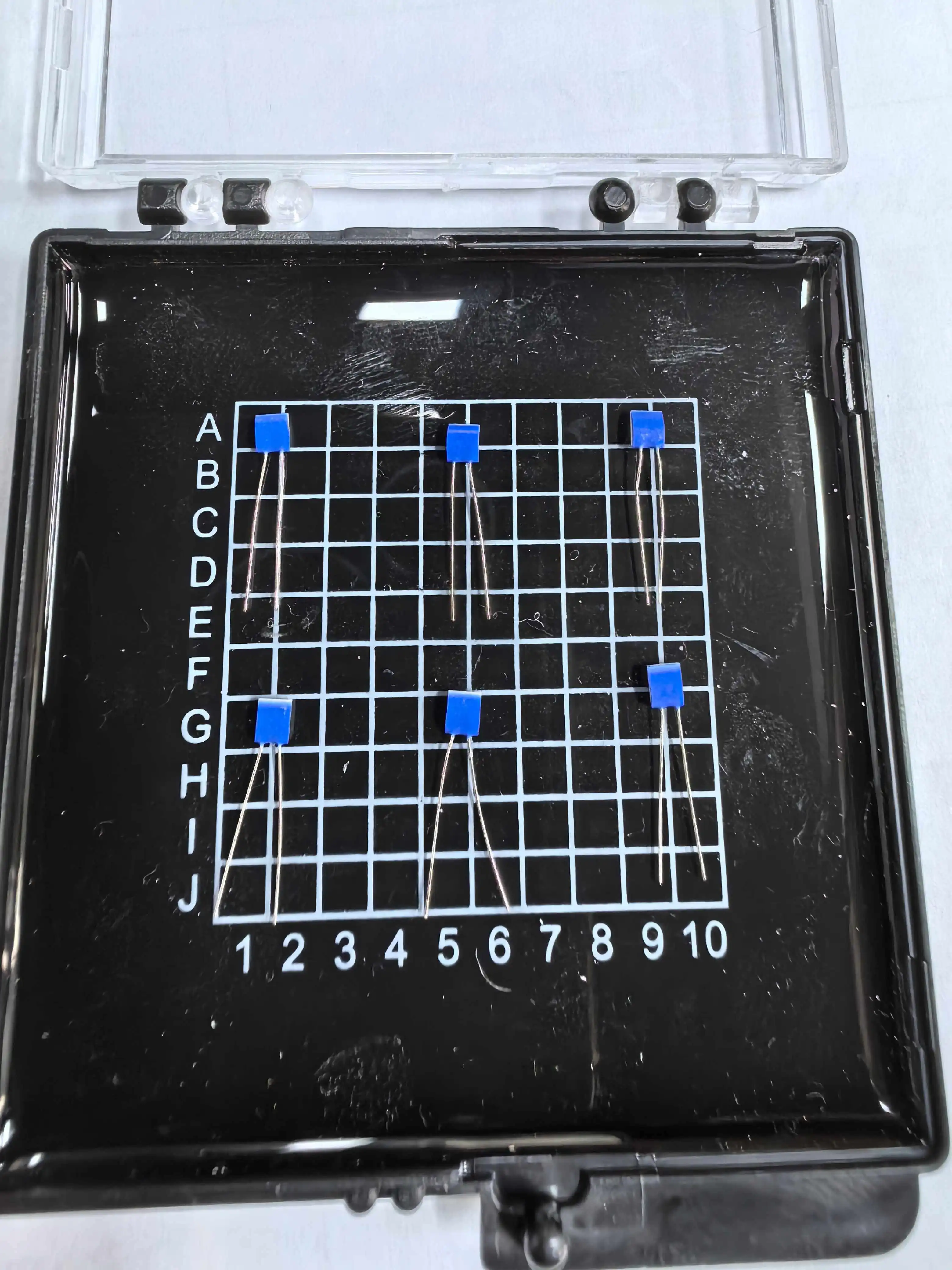

Drive Motor Temperature Sensor

Name: Drive Motor Temperature Sensor
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 50°C
Response Time:Flow (V=0.4 m/s):t0.5 = 0.05 s,t10 = 0.15 s;Airflow (V=2 m/s):t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Drive Motor Temperature Sensor Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. is a trusted Drive Motor Temperature Sensor manufacturer and supplier, specializing in high-performance thin-film platinum resistance thermistors. With over [X] years of expertise, we deliver sensors that excel in accuracy, durability, and compliance for automotive, industrial, and aerospace systems. Our automated production lines, ISO 9001 certification, and advanced R&D ensure unmatched reliability in extreme conditions.

Drive Motor Temperature Sensor

Why Choose Our Drive Motor Temperature Sensor?

IEC 60751 Compliance: 3850 ppm/°C TCR guarantees precise readings from -200°C to +850°C.
Customizable Designs: Multiple sizes (1.2mm–4.0mm) and platinum-nickel/silver-palladium leads.
Extreme Durability: Survives 40g vibrations, 100g shocks, and high-pressure environments.
Certified Quality: RoHS, CE, and ISO 9001 certified for global regulatory compliance.

Drive Motor Temperature Sensor Specifications

Parameter	Specification
Element Dimensions	2.0×2.3×1.0mm, 1.6×2.0×1.0mm, 1.2×2.0×1.0mm
Lead Material	Platinum-nickel (default), silver-palladium
Lead Tensile Strength	≥9 N
Temperature Coefficient	3850 ppm/°C
Response Time (Airflow)	t0.5=3s; t10=10s (2 m/s)
Long-Term Stability	≤±0.04% drift after 1000 hours at 50°C

Reference Selection Guide

Application	Recommended Model	Key Benefit
EV Motor Integration	TZD-2023-PtNi	Ultra-fast response (0.05s)
Industrial Machinery	TZD-1602-AgPd	Vibration resistance (40g)
Aerospace Systems	TZD-1201-PurePt	Ultra-low temp stability (-200°C)

Key Features of Our Drive Motor Temperature Sensor

Zero Compromise on Accuracy: ±0.01Ω tolerance ensures motor protection even at 850°C.
Built to Last: Withstand harsh environments—ideal for EV motors or wind turbines.
Scalable Solutions: Bulk orders supported with JIT delivery to keep your production on track.
Self-Heating Mitigation: 0.4°C/mW coefficient minimizes measurement errors.

Where Our Drive Motor Temperature Sensor Excels

Electric Vehicles: Monitor motor health in real-time to prevent overheating.
Industrial Automation: Optimize machinery performance in high-vibration settings.
Renewable Energy: Ensure reliability in wind turbine generators or solar inverters.
Medical Equipment: Deliver stable readings for critical diagnostic tools.

Certificates

All of our Drive Motor Temperature Sensors are rigorously designed and manufactured to fully comply with the renowned ISO 9001, RoHS, and CE standards. ISO 9001 certification attests to our unwavering commitment to maintaining a comprehensive quality management system, ensuring consistent excellence in every sensor. RoHS compliance showcases our dedication to environmental responsibility by restricting the use of hazardous substances, while the CE mark validates our adherence to strict EU safety and health regulations. For applications in the automotive industry, we offer specialized automotive - grade sensor options that meet the stringent requirements of IATF 16949. This certification ensures these sensors can withstand the high - performance demands and quality expectations of automotive manufacturing, providing reliable and precise performance on the road.

certificate

Packing and Delivery

Our vacuum - sealed plastic packaging serves as a reliable shield, effectively preventing moisture from infiltrating during transit. By creating an airtight environment, it safeguards the integrity of the products, ensuring they reach customers in pristine condition, free from any water - induced damage or degradation. For bulk orders, we understand that one - size - fits - all packaging may not suffice. That's why we offer custom packaging solutions tailored to your specific needs. Whether it's unique labeling, specialized inserts for extra protection, or customized dimensions to optimize shipping space, our team is dedicated to providing packaging that meets your exact requirements while maintaining the highest standards of quality and protection.

FAQ

Q: Can you customize lead lengths or connectors?
A: Yes! We offer tailored solutions for connectors, lengths, and materials.

Q: What's the MOQ for bulk orders?
A: No strict MOQ—scale from prototypes to 10,000+ units.

Q: Do you provide compliance documentation?
A: Certificates (RoHS, CE, ISO) are included with every shipment.

Q: How do you handle sensor calibration?
A: Each unit is pre-calibrated and tested with a detailed report.

Q: What's the lead time for urgent orders?
A: Standard lead time is 2-3 weeks; expedited options available.

Empower Your Systems with Precision

Trust Xi'an Tongzida to deliver Drive Motor Temperature Sensors that outperform in reliability and accuracy. Contact our engineering team at sales11@xatzd.com for quotes, samples, or technical support. Let's build the future of smart temperature sensing together!
