Transmission System Sensor

Name: Transmission System Sensor
SKU: N/A

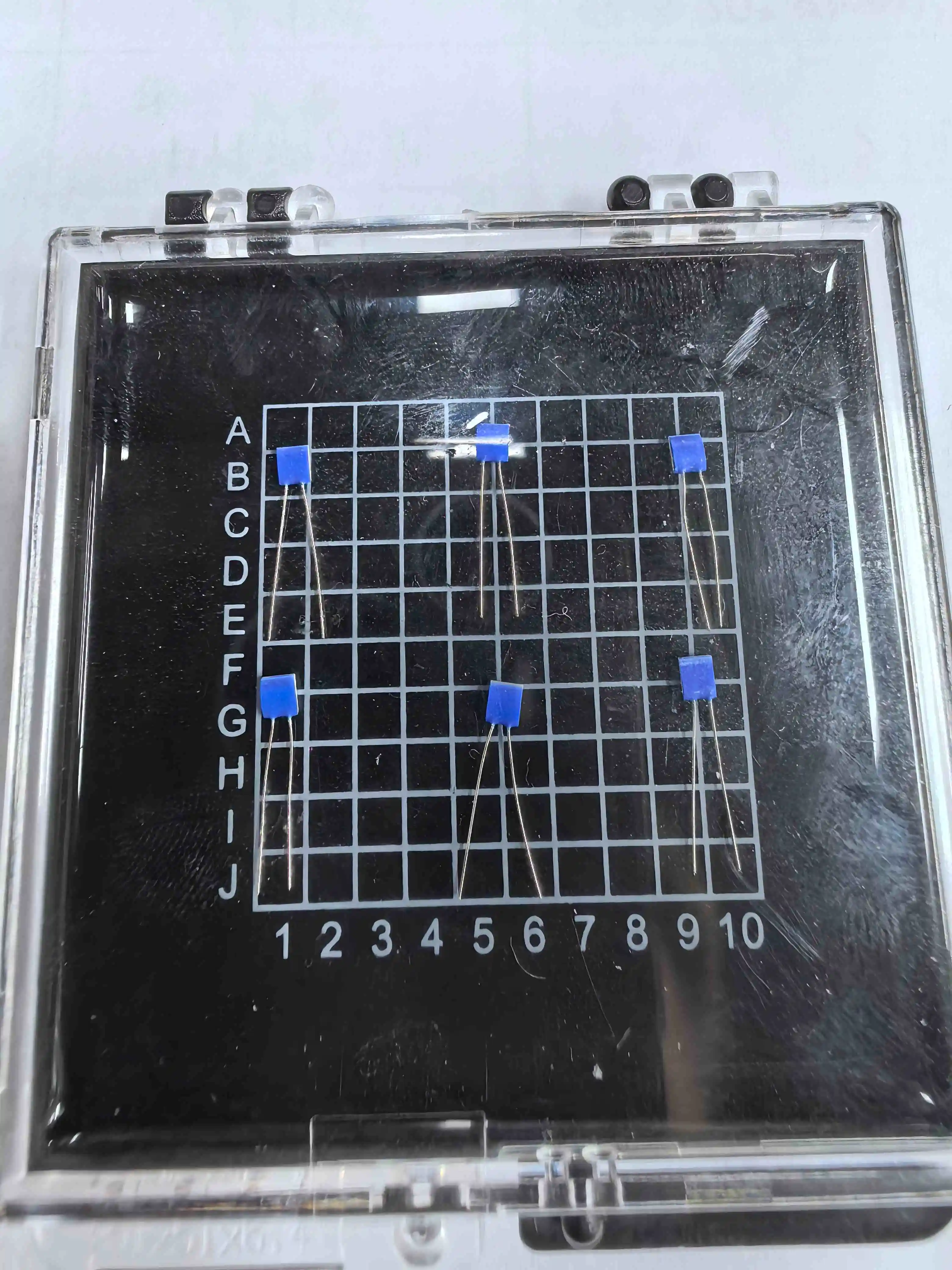

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 50°C
Response Time:[Flow (V=0.4 m/s)]t0.5 = 0.05 s,t10 = 0.15 s[Airflow (V=2 m/s)]t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Precision-Engineered Transmission System Sensors: Revolutionizing Industrial Performance

Xi'an Tongzida Technology Co., Ltd. is a leading manufacturer and supplier of high-quality Transmission System Sensors. Our progressed sensors offer unparalleled exactness, strength, and unwavering quality for basic mechanical applications. With our cutting-edge lean film innovation and rigid quality control, we convey sensors that beat industry measures, guaranteeing ideal execution in indeed the most requesting situations.

Transmission System Sensors

Introduction

In today's rapidly evolving industrial landscape, the need for precise, reliable products has never been greater. Our state-of-the-art products are designed to meet and exceed the exacting requirements of modern industrial applications. Whether you're in automotive manufacturing, energy distribution, telecommunications, or aerospace, our sensors provide the critical data you need to optimize performance, prevent downtime, and drive innovation.

Why Choose Us？

Unmatched Precision: Our products boast industry-leading accuracy, with a temperature coefficient of 3850 ppm/°C and long-term stability drift of ≤0.04%.
Versatility: Available in multiple sizes and lead materials, our sensors are customizable to suit your specific needs.
Durability: With vibration resistance of 40g and shock resistance of 100g, our sensors withstand the toughest industrial conditions.
Rapid Response: Ultra-fast response times as low as 0.05 seconds ensure real-time data for critical decision-making.
Comprehensive Support: From initial consultation to after-sales service, our team of experts is dedicated to your success.

Specifications

Parameter	Value
Element Type	Thin Film Platinum Resistance Thermistor
Element Dimensions	2.0mm x 2.3mm x 1.0mm, 1.6mm x 2.0mm x 1.0mm, 1.2mm x 2.0mm x 1.0mm
Lead Specifications	Length: 10 mm, Diameter: 0.2 mm
Lead Material	Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Temperature Coefficient (TCR)	3850 ppm/°C
Operating Current	0.3 ~ 1 mA
Insulation Resistance	100 MΩ at 20°C, >2 MΩ at 500°C
Response Time	[Flow (V=0.4 m/s)] t0.5 = 0.05 s, t10 = 0.15 s [Airflow (V=2 m/s)] t0.5 = 3 s, t10 = 10 s

Reference Selection

Industry	Recommended Model	Key Features
Automotive	TZD-AUTO-3850	High vibration resistance, CAN bus compatible
Energy & Utilities	TZD-ENERGY-3850	Extended temperature range, IoT-enabled
Telecommunications	TZD-TELECOM-3850	EMI shielding, compact design
Aerospace	TZD-AERO-3850	Extreme temperature tolerance, lightweight

Features

Ultra-high precision with ±0.01 Ω accuracy (1/40B level)
Wide operating temperature range: -200°C to +850°C
Customizable sizes and lead materials
Excellent long-term stability
Robust design for harsh industrial environments
IoT-ready for seamless integration with smart systems

Applications

Our Transmission System Sensors excel in a variety of critical applications:

Automotive powertrains and electric vehicle battery management
Power generation and distribution systems
Telecommunications infrastructure monitoring
Aerospace engine and hydraulic system control
Industrial process automation and quality control
Renewable energy system optimization

By incorporating our advanced products into your operations, you'll gain unprecedented insight into your systems' performance, enabling proactive maintenance, increased efficiency, and reduced downtime. Our sensors are built to pass on the correct data you require to make taught choices and stay ahead in today's competitive mechanical scene.

Certificates

Our commitment to quality is backed by ISO9001, ROHS, and CE certifications, ensuring our products meet the highest international standards.

Packing and Delivery

We offer vacuum plastic packaging to protect the integrity of our sensors during shipping, with customized packaging solutions available upon request.

FAQ

Q: What makes your products stand out from competitors?
A: Our sensors offer industry-leading precision, customizability, and durability, backed by comprehensive support and certifications.
Q: Can your sensors integrate with our existing systems?
A: Yes, our sensors are designed for compatibility with various industrial protocols and can be customized to your specific requirements.
Q: What is the typical lead time for bulk orders?
A: Lead times vary based on order volume and customization needs. We strive to meet your production schedules and can discuss specific timelines during consultation.
Q: Do you offer technical support for integration and troubleshooting?
A: Absolutely. Our team of experts provides comprehensive technical support throughout the lifecycle of our products.
Q: Are your items appropriate for perilous situations? A: Yes, numerous of our sensor models are planned to work in extraordinary conditions and can be assist customized for particular dangerous environment necessities.

Contact Us

Ready to elevate your transmission systems with cutting-edge sensor technology? Contact our sales team at sales11@xatzd.com to discuss your specific needs and discover how our Transmission System Sensors can drive your business forward.
