BMS Temperature Sensor

Name: BMS Temperature Sensor
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 50°C
Response Time:[Flow (V=0.4 m/s)]t0.5 = 0.05 s,t10 = 0.15 s[Airflow (V=2 m/s)]t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Xi'an Tongzida Technology Co., Ltd.: Your Trusted BMS Temperature Sensor Manufacturer

As a leading manufacturer and supplier of BMS Temperature Sensors, Xi'an Tongzida Technology Co., Ltd. offers cutting-edge solutions for precise temperature monitoring in battery management systems. Our advanced thin film platinum resistance technology ensures superior accuracy, reliability, and performance across diverse applications.

Introduction

In the quickly advancing world of battery administration frameworks (BMS), precise temperature detecting is significant for ideal execution and security. Our items are outlined to meet the requesting prerequisites of present day vitality capacity arrangements, electric vehicles, and mechanical applications.

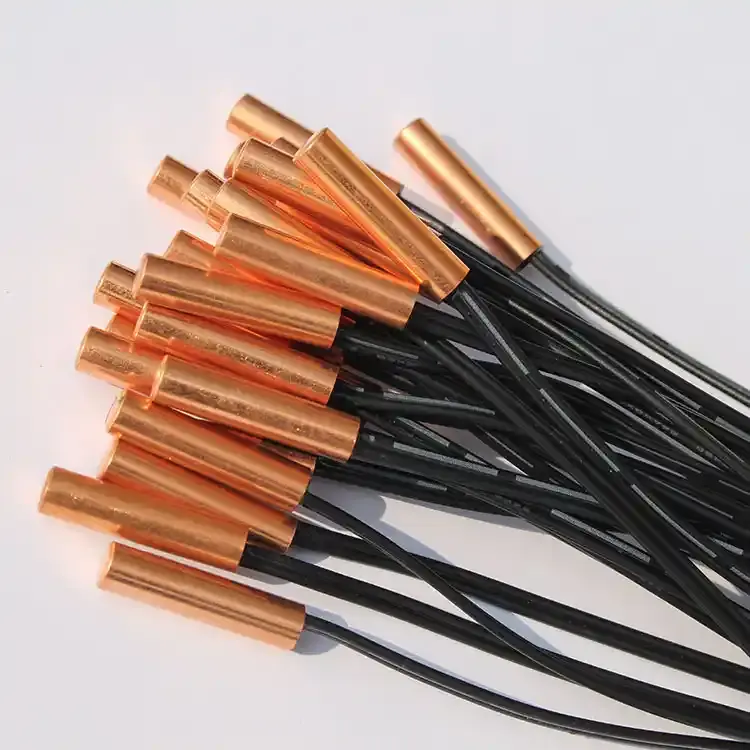

BMS Temperature Sensor

Why Choose Us？

Industry-leading accuracy and stability
Customizable solutions to fit your specific needs
Extensive experience in sensor manufacturing
Compliance with international standards
Competitive pricing for bulk orders

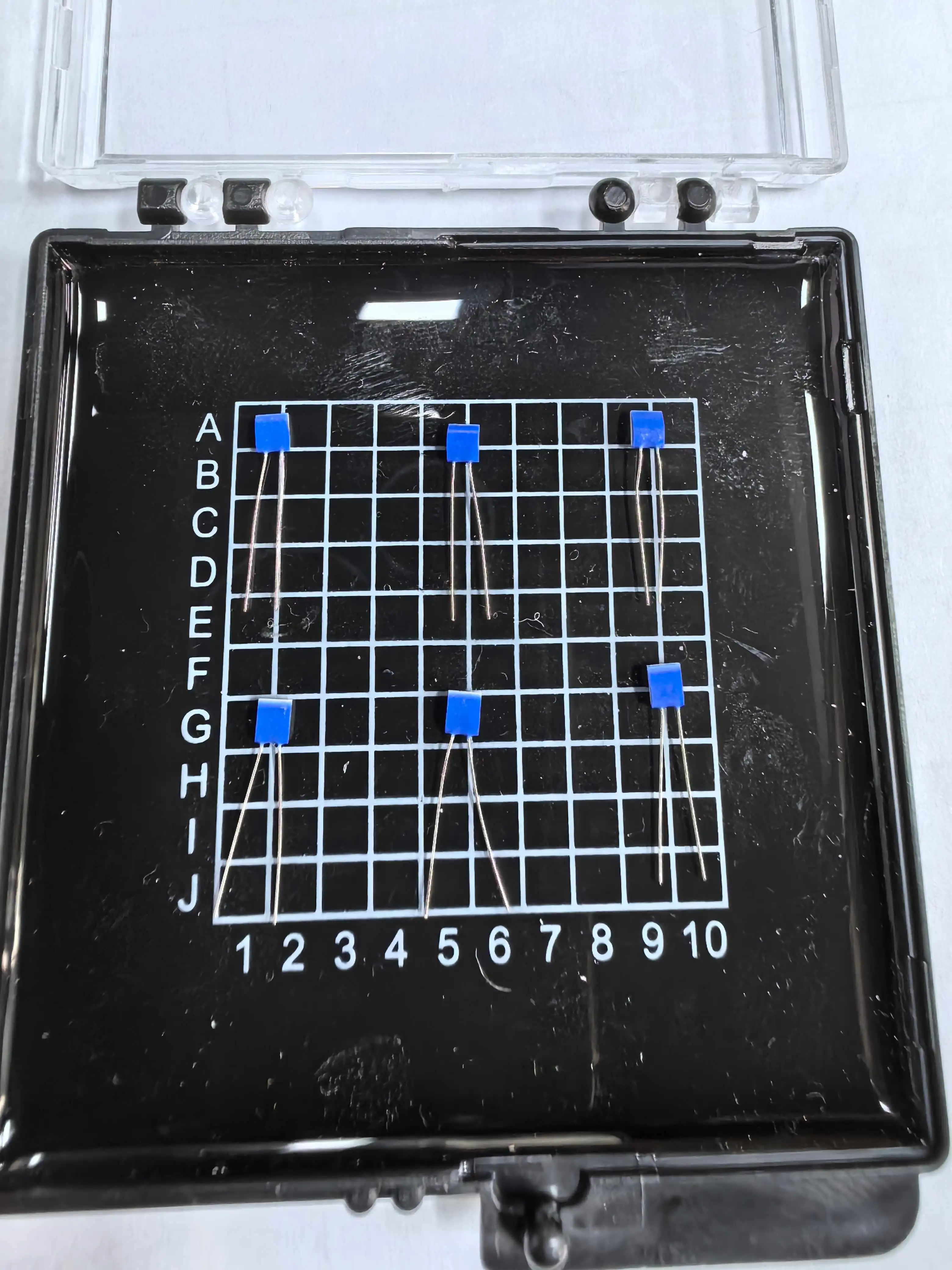

BMS Temperature Sensor

Specifications

Parameter	Value
Element Type	Thin Film Platinum Resistance Thermistor
Element Dimensions	2.0mm x 2.3mm x 1.0mm, 1.6mm x 2.0mm x 1.0mm, 1.2mm x 2.0mm x 1.0mm
Lead Specifications	Length: 10 mm, Diameter: 0.2 mm
Lead Material	Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Temperature Coefficient (TCR)	3850 ppm/°C
Operating Current	0.3 ~ 1 mA
Long-Term Stability	≤±0.04% resistance drift after 1000 hours at 50°C
Insulation Resistance	100 MΩ at 20°C, >2 MΩ at 500°C

Reference Selection

Model	Temperature Range	Accuracy
TZ-BMS-100	-40°C to +125°C	±0.5°C
TZ-BMS-200	-55°C to +150°C	±0.3°C
TZ-BMS-300	-200°C to +600°C	±0.1°C

Features

High accuracy and stability
Fast response time
Wide temperature range
Excellent long-term reliability
Customizable lead materials and dimensions
Vibration and shock resistant

Applications

Our BMS Temperature Sensors are ideal for:

Electric vehicle battery packs
Energy storage systems
Industrial automation
Renewable energy installations
Medical equipment
Aerospace and defense

By integrating our sensors into your BMS, you can ensure optimal battery performance, extend battery life, and enhance overall system safety.

Certificates

Our commitment to quality is backed by ISO 9001, ROHS, and CE certifications. We adhere to strict quality control measures throughout the production process.

BMS Temperature Sensor

Packing and Delivery

We offer vacuum plastic packaging to protect your products during transit. Custom packaging options are available upon request.

FAQ

Q1: What is the minimum order quantity for products?
A1: Our minimum order quantity is 100 units, but we offer competitive pricing for bulk orders.

Q2: Can you provide customized products?
A2: Yes, we can tailor our sensors to meet your specific requirements, including custom dimensions and lead materials.

Q3: What is the lead time for the product orders?
A3: Standard lead time is 2-3 weeks, but this may vary depending on order volume and customization requirements.

Q4: Do you offer samples for testing?
A4: Yes, we provide sample units for evaluation. Please contact our sales team for more information.

Q5: What warranty do you offer on your products?
A5: We offer a 12-month warranty on all our sensors, covering manufacturing defects and performance issues.

Contact Us

Ready to enhance your BMS with our high-performance BMS Temperature Sensor? Contact our expert team at sales11@xatzd.com for personalized support and quotations.
