Pt20 Temperature Sensor Element

Name: Pt20 Temperature Sensor Element
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:Maximum current: 900 mA
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 500°C
Response Time:Water Flow (V=0.4 m/s):t₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)

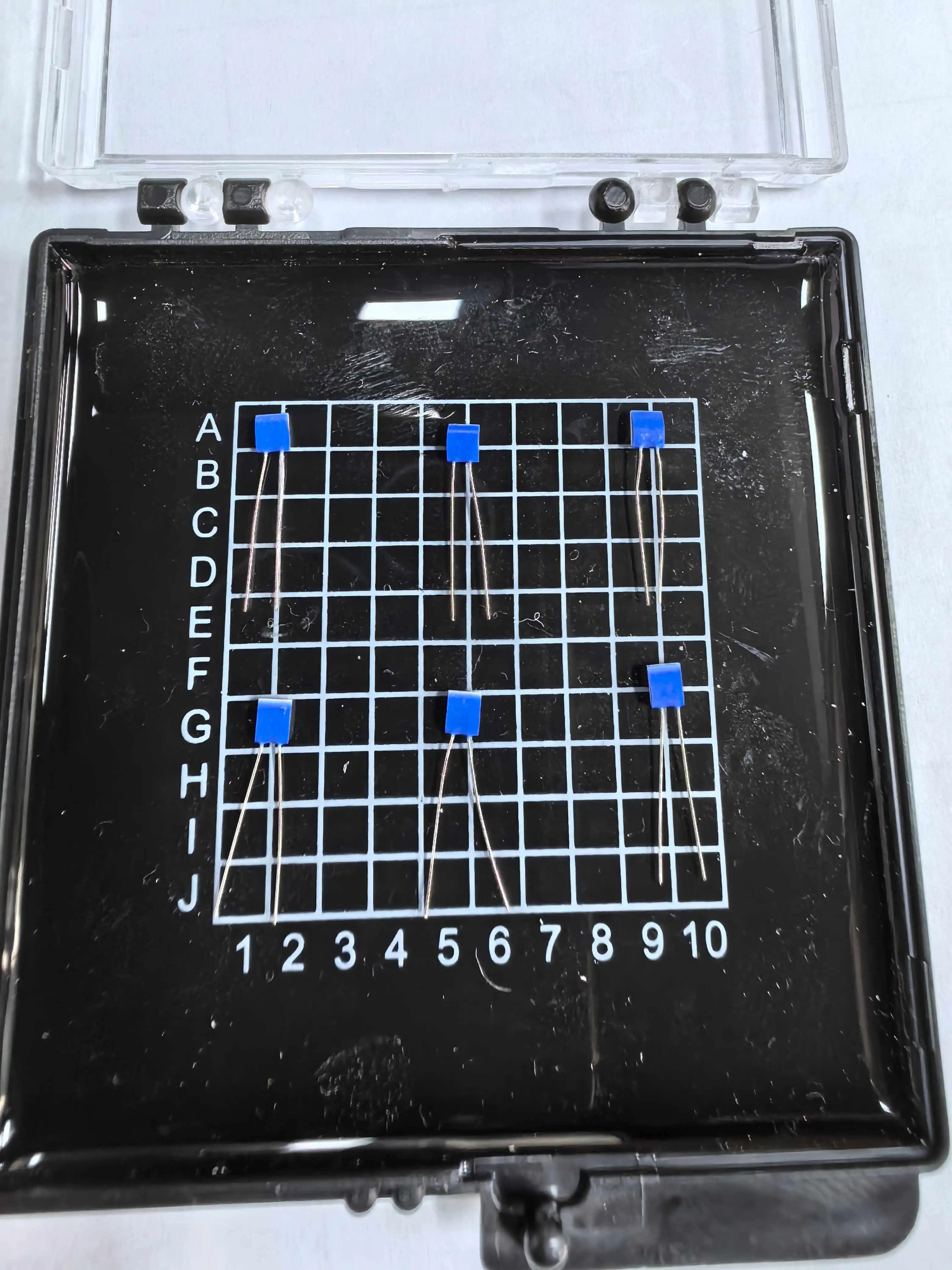

Packaging:Vacuum plastic packaging (other formats available upon request)

Send Inquiry

Download

Product Description

Pt20 Temperature Sensor Element Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. specializes in manufacturing high-performance Pt20 Temperature Sensor Elements, combining cutting-edge thin-film platinum resistor technology with rigorous quality standards. As a trusted supplier, we deliver sensors that excel in accuracy (±0.01Ω), durability (40g vibration resistance), and customization, backed by ISO9001, CE, and RoHS certifications.

Pt20 Temperature Sensor Elements

Why Choose Our Pt20 Temperature Sensor Element?

Reliable Compliance: Our Pt20 Temperature Sensor Element adheres firmly to IEC60751 standards, featuring a 3850ppm/°C TCR that guarantees consistent and accurate performance across a variety of applications.
Wide Temperature Range: Engineered for versatility, it operates smoothly within an extensive temperature spectrum, from the frigid -200°C to the sweltering +850°C without compromising functionality.
Robust Design: Built with durability in mind, its sturdy construction can endure 100g shock resistance, making it suitable for withstanding the rigors of harsh industrial environments.
Custom Solutions: Enjoy the flexibility to customize your product by selecting from lead materials such as platinum-nickel and silver-palladium, and choosing dimensions between 1.2mm–4.0mm to fit your unique needs.

Specifications

Parameter	Details
Element Dimensions	2.0mm x 2.3mm x 1.0mm
Lead Material	Platinum-nickel (optional: pure platinum/silver-palladium)
Temperature Coefficient	3850 ppm/°C
Response Time (Water)	t₀.₅ = 0.05s; t₀.₉ = 0.15s
Long-Term Stability	≤±0.04% drift after 1000h at 500°C
Certifications	ISO9001, RoHS, CE

Reference Selection Guide

Application	Recommended Model	Key Benefit
Automotive Testing	PT20-HV	Shock resistance up to 100g
Medical Devices	PT20-MD	Ultra-low self-heating (0.4°C/mW)
Aerospace	PT20-AS	Vacuum-compatible packaging

Key Features

Rapid Response: In liquid environments, our solution offers unparalleled speed, enabling real - time monitoring with a lightning - fast 0.05s reaction time, ensuring immediate and accurate data capture.
Stability Guaranteed: Engineered for endurance, it features minimal resistance drift, providing consistent performance over extended periods and ensuring long - term reliability you can trust.
Versatile Integration: Designed to seamlessly fit into diverse setups, it is compatible with PLCs, HVAC systems, and lab equipment, making it a flexible choice for various industrial and scientific applications.

Applications

Industrial Automation: In chemical plants, our solutions play a crucial role in industrial automation, enabling precise process control to optimize production efficiency, ensure safety, and maintain consistent product quality.
Medical Equipment: For medical applications, our technology equips sterilization chambers and MRI machines, ensuring accurate operation, patient safety, and reliable performance in critical healthcare environments.
Aerospace: In the aerospace industry, our systems are essential for engine temperature monitoring, helping to maintain optimal engine performance, prevent overheating, and ensure flight safety.
Energy: Within the energy sector, our products are integral to solar thermal systems and nuclear reactors, contributing to efficient energy conversion, reliable operation, and sustainable power generation.

Certificates & Quality Assurance

All Pt20 Temperature Sensor Elements undergo strict testing for TCR consistency and insulation resistance.

Packaging: Our products are meticulously vacuum-sealed to create an airtight barrier, effectively preventing any form of contamination during transit. We also fully support bulk orders, ensuring each item in large shipments is equally protected.
Delivery: Offering global shipping services, we provide flexible lead times to accommodate diverse customer needs. Whether it's urgent or scheduled delivery, we ensure reliable and timely product arrival.
After-Sales: Committed to customer satisfaction, we offer 24/7 technical support to address any issues promptly. Our warranty coverage further guarantees peace of mind regarding product quality and performance.

FAQ

Can I request custom lead lengths?
Yes! We offer lengths from 5mm to 30mm.
What's the MOQ for bulk orders?
MOQ starts at 500 units; discounts apply for 5,000+ units.
Are your sensors compatible with vacuum environments?
Absolutely. Vacuum-ready packaging is standard.
Do you provide compliance documentation?
Full test reports and certificates ship with every order.
How do I troubleshoot calibration issues?
Contact our engineers at sales11@xatzd.com for immediate assistance.
