EV Battery Temperature Sensor

Name: EV Battery Temperature Sensor
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 50°C
Response Time:[Flow (V=0.4 m/s)]t0.5 = 0.05 s,t10 = 0.15 s[Airflow (V=2 m/s)]t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

EV Battery Temperature Sensor - Precision Monitoring for Electric Vehicle Performance

Xi'an Tongzida Technology Co., Ltd. is a leading EV Battery Temperature Sensor manufacturer and supplier. Our progressed sensors offer unparalleled precision, unwavering quality, and customization choices for electric vehicle applications. With our ability in lean film platinum resistance innovation, we convey prevalent temperature checking arrangements that upgrade battery security and execution.

EV Battery Temperature Sensor

Introduction

In the quickly advancing world of electric vehicles, exact temperature administration is significant for ideal battery execution and life span. Our item utilizes cutting-edge lean film platinum resistance innovation to give precise, real-time temperature checking over a wide extend of working conditions.

Why Choose Us?

Industry-leading accuracy: ±0.5°C or better
Customizable solutions to meet specific EV battery designs
Robust construction for automotive environments
Compliance with international standards (ISO/TS 16949, AEC-Q200)
Proven track record with major automotive OEMs

Specifications

Parameter	Value
Element Type	Thin Film Platinum Resistance Thermistor
Element Dimensions	2.0mm x 2.3mm x 1.0mm, 1.6mm x 2.0mm x 1.0mm, 1.2mm x 2.0mm x 1.0mm
Lead Specifications	Length: 10 mm, Diameter: 0.2 mm
Lead Material	Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Temperature Coefficient (TCR)	3850 ppm/°C
Operating Current	0.3 ~ 1 mA
Long-Term Stability	≤±0.04% resistance drift after 1000 hours at 50°C
Insulation Resistance	100 MΩ at 20°C, >2 MΩ at 500°C

Reference Selection

Model	Temperature Range	Accuracy
EV-BTS-100	-40°C to +125°C	±0.5°C
EV-BTS-200	-50°C to +150°C	±0.3°C
EV-BTS-300	-60°C to +200°C	±0.2°C

Features

Rapid response time: t0.5 = 0.05 s in flow conditions
High vibration resistance: ≥40g acceleration (10 ~ 2000 Hz)
Excellent shock resistance: ≥100g acceleration (8 ms half-sine wave)
Minimal self-heating: 0.4°C/mW coefficient
Versatile lead options for seamless integration

Applications

Our EV Battery Temperature Sensor is designed for various electric vehicle applications, including:

Lithium-ion battery packs
Battery management systems (BMS)
Thermal runaway prevention
Cell-level temperature monitoring
Energy storage systems for renewable energy

By incorporating our sensors into your EV designs, you can enhance battery safety, optimize charging cycles, and extend overall battery life. The precision and reliability of our product contribute to improved vehicle range and performance, critical factors in today's competitive automotive market.

Factory pictures

Certificates

Our commitment to quality is reflected in our certifications, including ISO 9001, IATF 16949, and compliance with regional EV safety regulations such as UN R100 and GB/T standards.

Packing and Delivery

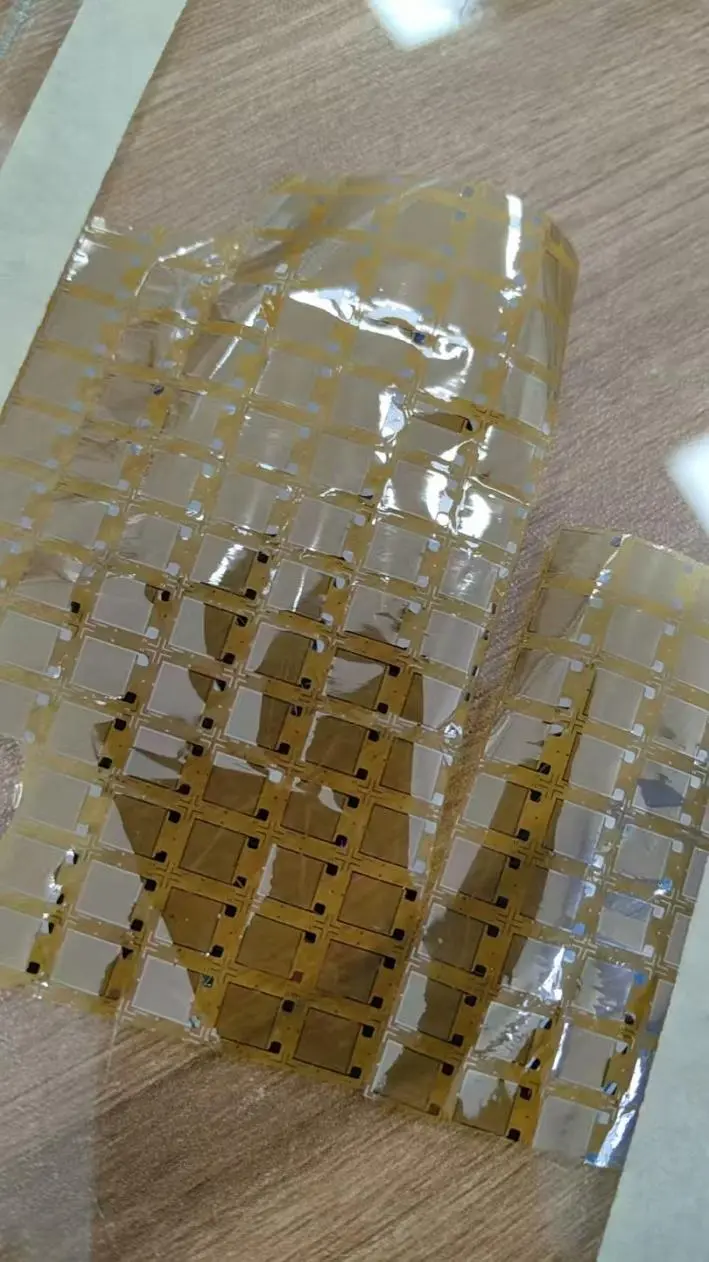

We offer vacuum plastic packaging to ensure the integrity of our sensors during shipping and storage. Custom packaging solutions are available upon request to meet your specific handling requirements.

FAQ

Q1: What makes your product stand out from competitors?
A1: Our sensors offer industry-leading accuracy, customization options, and compliance with automotive standards, backed by our expertise in thin film platinum resistance technology.

Q2: Can you provide samples for testing?
A2: Yes, we offer sample kits for evaluation. Please contact our sales team to arrange for samples tailored to your specific requirements.

Q3: What is the lead time for bulk orders?
A3: Typical lead times for large orders range from 4-6 weeks, depending on customization needs and quantity. We strive to accommodate urgent requests whenever possible.

Q4: Do you offer technical support for integration?
A4: Absolutely. Our engineering team provides comprehensive support throughout the integration process, including design assistance and troubleshooting.

Q5: Are your sensors compatible with different battery chemistries?
A5: Yes, our product is designed to work with various lithium-ion chemistries and can be adapted for emerging battery technologies.

Contact Us

Ready to enhance your EV battery performance with our precision temperature sensors? Contact our team at sales11@xatzd.com for personalized support and to discuss how our EV Battery Temperature Sensor can meet your specific needs.
