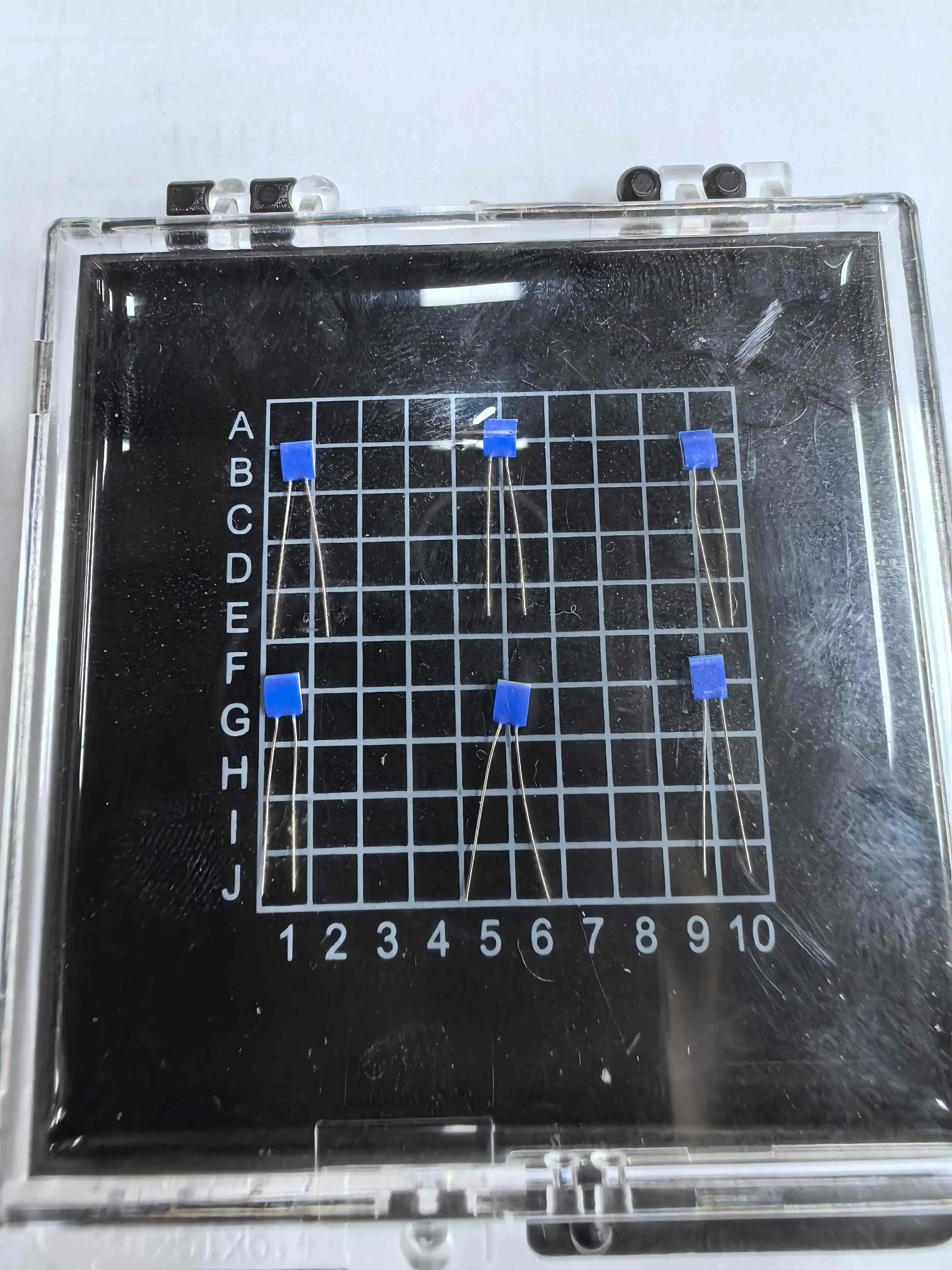

Thin Film Pt20 Sensor

Name: Thin Film Pt20 Sensor
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:Maximum current: 900 mA
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 500°C
Response Time:Water Flow (V=0.4 m/s):t₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other formats available upon request)

Send Inquiry

Download

Product Description

Thin Film Pt20 Sensor Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. specializes in designing and manufacturing high-performance Thin Film Pt20 Sensors, combining cutting-edge microsensor technology with rigorous quality standards. As a trusted platinum resistance sensor supplier, we deliver customizable, IEC60751-compliant solutions for industrial, automotive, medical, and aerospace applications. Our automated production lines and ISO9001/RoHS/CE certifications ensure reliability, accuracy (±0.01 Ω), and durability in extreme conditions.

Thin Film Pt20 Sensors

Why Choose Our Thin Film Pt20 Sensor?

Unmatched Precision: Achieve ±0.01 Ω accuracy (1/30B level) with a 3850 ppm/°C TCR for stable readings from -200°C to +850°C.
Robust Design: Built to withstand 40g vibrations, 100g shocks, and harsh environments.
Customization: Tailor lead materials (platinum-nickel, silver-palladium), sizes (1.2–4.0mm), and packaging to your needs.
Fast Response: Detect temperature changes in 0.05 seconds (water flow) for real-time monitoring.

Thin Film Pt20 Sensor Specifications

Parameter	Value
Dimensions	2.0mm x 2.3mm x 1.0mm
Lead Material	Platinum-Nickel (Optional: Pure Platinum, Silver-Palladium)
Temperature Range	-200°C to +850°C
Accuracy	±0.01 Ω (1/30B level)
Long-Term Stability	≤±0.04% drift after 1000h at 500°C
Insulation Resistance	100 MΩ (20°C), >2 MΩ (500°C)
Response Time (Water)	t₀.₅ = 0.05s, t₀.₉ = 0.15s

Thin Film Pt20 Sensor Reference Selection

Industry	Recommended Configuration
Automotive	Platinum leads, 2.0mm size, vacuum packaging
Medical Devices	Pure silver leads, 1.5mm size, anti-corrosion coating
Aerospace	High-temp packaging, shock-resistant design
Industrial Automation	Custom lead lengths, 40g vibration resistance

Key Features of Our Platinum Resistance Sensor

Wide Temperature Range: Monitor extreme environments confidently.
Anti-Vibration: Perform reliably in high-movement settings.
Low Self-Heating: 0.4°C/mW coefficient minimizes measurement interference.
Long Lifespan: Drift-resistant design reduces recalibration needs.

Where Is the Thin Film Pt20 Sensor Used?

Engine Monitoring: Optimize combustion efficiency in automotive/aerospace systems.
Lab Equipment: Ensure precise thermal control in medical analyzers or semiconductor tools.
HVAC Systems: Enhance energy efficiency with rapid temperature feedback.
Wearable Tech: Enable compact, stable sensing for health monitoring devices.

Certifications & Compliance

Our Thin Film Pt20 Sensors are a testament to unwavering quality and reliability, meticulously engineered to meet the stringent requirements of ISO9001, RoHS, and CE standards. The ISO9001 certification validates our comprehensive quality management system, ensuring consistent excellence in every stage of production, from raw material sourcing to final assembly. RoHS compliance underscores our commitment to environmental sustainability, as we use only materials that minimize harm to the planet and human health. Meanwhile, the CE mark attests to our adherence to strict European health, safety, and environmental protection regulations. By meeting these globally recognized standards, our sensors provide customers with the confidence that they are investing in products that are not only top - performing but also ethically and responsibly manufactured.

certificate

Packaging & Delivery

Our vacuum-sealed plastic packaging serves as the first line of defense, creating an airtight environment that safeguards products from external elements such as moisture, dust, and oxidation. This ensures that items remain in pristine condition throughout the shipping process. Recognizing that different products have unique requirements, we offer a range of custom packaging options. Whether you need specialized sizes, additional protective features, or branded designs, our team can tailor the packaging to your exact specifications. To facilitate seamless global delivery, we have partnered with renowned logistics providers DHL and FedEx. Their extensive networks ensure that your orders are shipped promptly and reach destinations worldwide with reliability and efficiency.

FAQs: Thin Film Pt20 Sensor

Can I request non-standard lead lengths?
Yes! Customize leads from 5mm to 50mm for seamless integration.
Are your sensors compatible with corrosive environments?
Optional protective coatings (e.g., alumina) enhance chemical resistance.
What's the minimum order quantity?
MOQ starts at 100 units, with volume discounts for 500+ orders.
Do you provide calibration certificates?
Yes, traceable NIST certificates are available upon request.
How do I ensure proper installation?
Download our step-by-step mounting guide or contact our technical team.

Let's Build Smarter Solutions Together!

Need a reliable Thin Film Pt20 Sensor partner? Contact our experts at sales11@xatzd.com for quotes, samples, or technical support.
