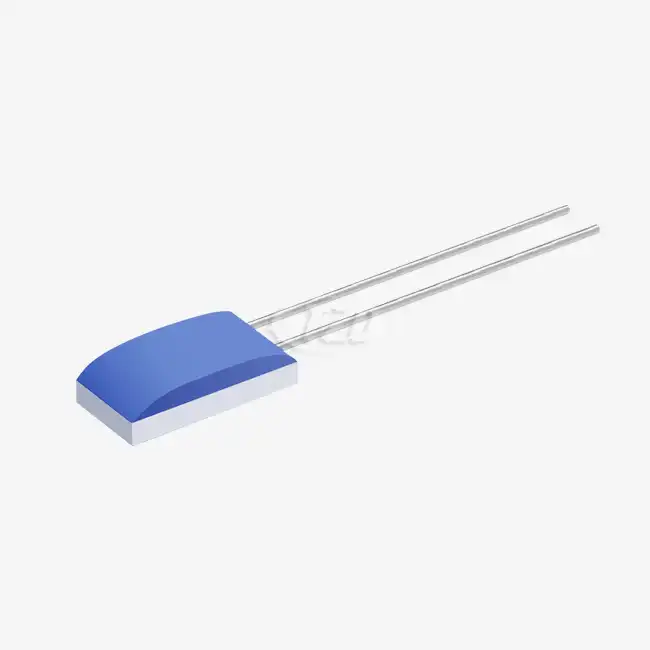

High-Stability Pt1000 Sensor

Name: High-Stability Pt1000 Sensor
SKU: N/A

Element Type:Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,2.0mm x 4.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.1–0.3 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 500°C
Response Time:Water Flow (V=0.4 m/s):t₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

High-Stability Pt1000 Sensor Manufacturer And Supplier

As a leading High-Stability Pt1000 Sensor manufacturer, Xi'an Tongzida combines 20+ years of expertise in thin-film platinum technology with ISO9001, CE, and RoHS certifications. Our sensors deliver unmatched accuracy (±0.01Ω), long-term stability (≤0.04% drift), and robust performance in extreme conditions (-200°C to +850°C).

High-Stability Pt1000 Sensor

Introduction to Our High-Stability Pt1000 Sensor

Engineered for precision, our High-Stability Pt1000 Sensor meets IEC60751 standards with a 3850 ppm/°C temperature coefficient. Ideal for aerospace, automotive, and medical applications, it ensures reliability in environments with vibration, shock, or rapid temperature shifts. Customizable sizes and lead materials empower tailored solutions for your unique needs.

Why Choose Our High-Stability Pt1000 Sensor?

Technical Excellence: Thin-film platinum technology for minimal drift.
Certified Quality: Compliant with IEC60751, ASTM E1137, and global safety standards.
Customization: Multiple sizes (1.2mm–4.0mm) and lead materials (platinum-nickel, pure platinum).
Scalability: Automated production ensures bulk orders without delays.

Specifications

Parameter	Details
Element Type	Platinum Resistance Thermistor
Dimensions	2.0mm x 2.3mm x 1.0mm / 2.0mm x 4.0mm x 1.0mm
Lead Material	Platinum-Nickel (Optional: Silver-Palladium, Pure Platinum)
Temperature Coefficient	3850 ppm/°C
Response Time (Water Flow)	t₀.₅ = 0.05 s; t₀.₉ = 0.15 s
Long-Term Stability	≤±0.04% drift after 1000 hours at 500°C
Vibration Resistance	≥40g (10–2000 Hz)

Reference Selection Guide

Application	Recommended Size	Lead Material
Automotive Testing	2.0mm x 4.0mm	Platinum-Nickel
Medical Equipment	2.0mm x 2.3mm	Pure Platinum
Aerospace Systems	Custom	Silver-Palladium

Key Features

Ultra-Fast Response: Detect temperature changes in 0.05 seconds for dynamic environments.
Vibration & Shock Proof: Withstands 40g vibration and 100g shock—perfect for engines or machinery.
Vacuum-Ready Packaging: Ensures integrity during transport and storage.

Applications

Industrial: Process control, HVAC systems.
Medical: Sterilization equipment, diagnostic tools.
Automotive: Engine monitoring, battery management.
Aerospace: Avionics, propulsion systems.

Certificates & Compliance

Our High-Stability Pt1000 Sensor is a paragon of quality and compliance, proudly holding ISO9001, CE, and RoHS certifications. The ISO9001 certification attests to our robust quality management system, ensuring consistent manufacturing excellence. The CE mark validates that our sensor meets stringent European health, safety, and environmental protection standards, while RoHS compliance confirms our commitment to using only environmentally friendly materials. Our unwavering dedication to quality is further demonstrated through our comprehensive quality control process. Each sensor undergoes rigorous testing for TCR consistency to guarantee accurate temperature measurements and insulation resistance to ensure reliable performance, providing our customers with a sensor they can trust for critical applications.

certificate

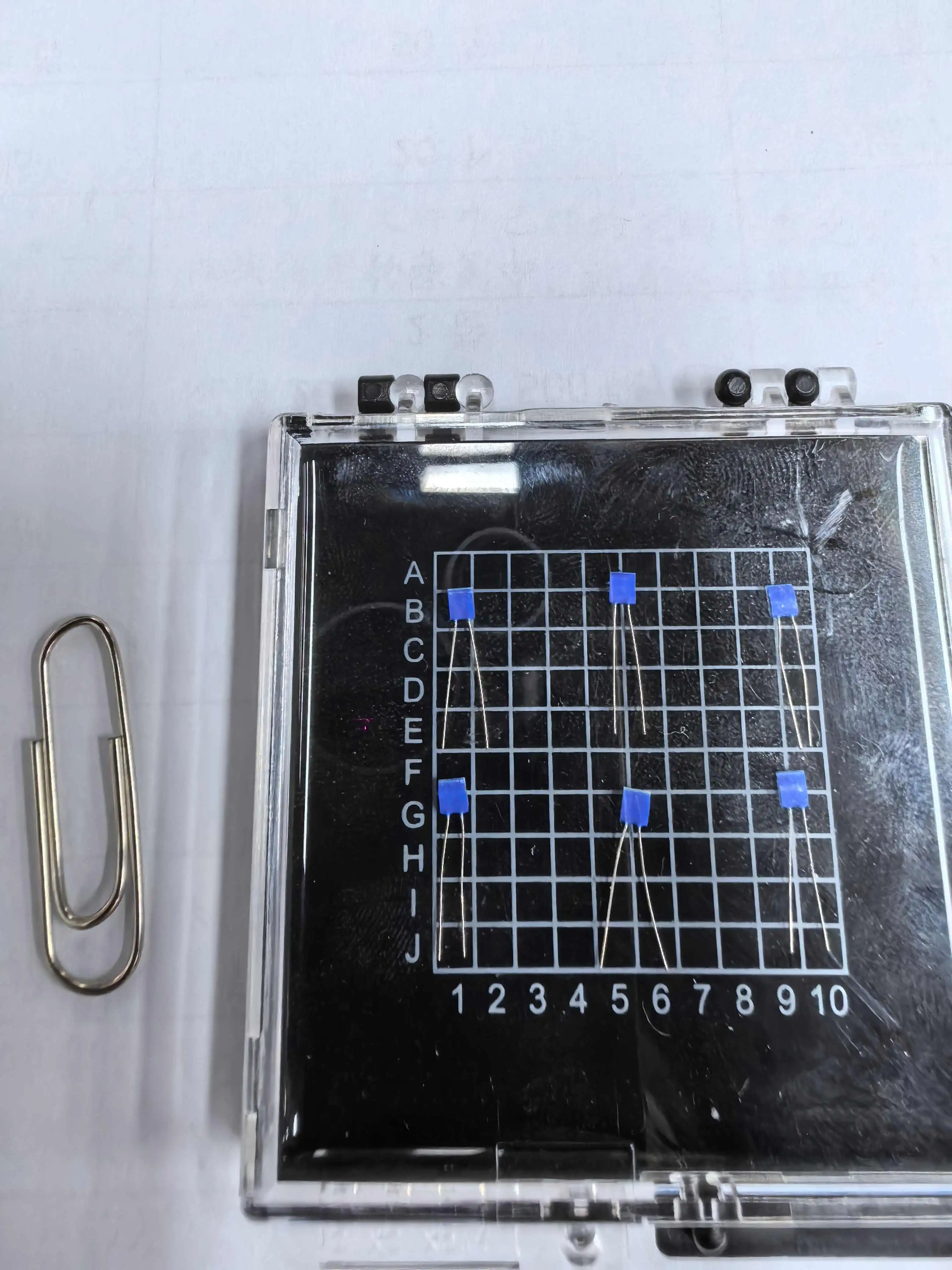

Packing & Delivery

Our sensors are safeguarded with high-quality vacuum-sealed packaging, creating an airtight barrier that effectively protects against moisture, dust, and other contaminants during transit. This ensures that each sensor arrives in pristine condition, ready for immediate use. We take pride in our efficient global shipping service, guaranteeing delivery within 5–7 days, regardless of the destination. Whether you're located across the city or on the other side of the world, you can rely on our prompt and reliable delivery. For bulk orders, we offer attractive discounted rates, making it cost-effective for businesses to stock up on our top-notch sensors without compromising on quality.

FAQ

Q: Can I request pure platinum leads?
A: Yes! We offer platinum, silver-palladium, or platinum-nickel options.

Q: Is the sensor compatible with 4-wire systems?
A: Absolutely—custom configurations are available.

Q: What's the minimum order quantity?
A: No MOQ—order 10 or 10,000 units.

Q: How do you ensure long-term stability?
A: Each batch undergoes 1000-hour drift testing.

Q: Do you provide calibration certificates?
A: Yes, traceable to international standards.

Contact Us for Your High-Stability Pt1000 Sensor Needs!

Elevate your temperature measurement systems with Xi'an Tongzida's precision High-Stability Pt1000 Sensors. Email sales11@xatzd.com for quotes, samples, or technical support. Let's build solutions together!
