RTD Sensor With Wire Leads

Name: RTD Sensor With Wire Leads
SKU: N/A

Element Type:Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,2.0mm x 4.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.1–0.3 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 50°C
Response Time:Water Flow (V=0.4 m/s):t₀.₅ = 0.05 s,t₀.₉ = 0.15 s
Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Your Trusted RTD Sensor Manufacturer And Supplier

At Xi'an Tongzida Technology Co., Ltd., we specialize in manufacturing premium RTD Sensor With Wire Leads designed for accuracy and durability. With ISO 9001, CE, and RoHS certifications, our automated production lines deliver sensors with ±0.01Ω precision, 3850 ppm/°C TCR, and customization for industrial, medical, and aerospace needs.

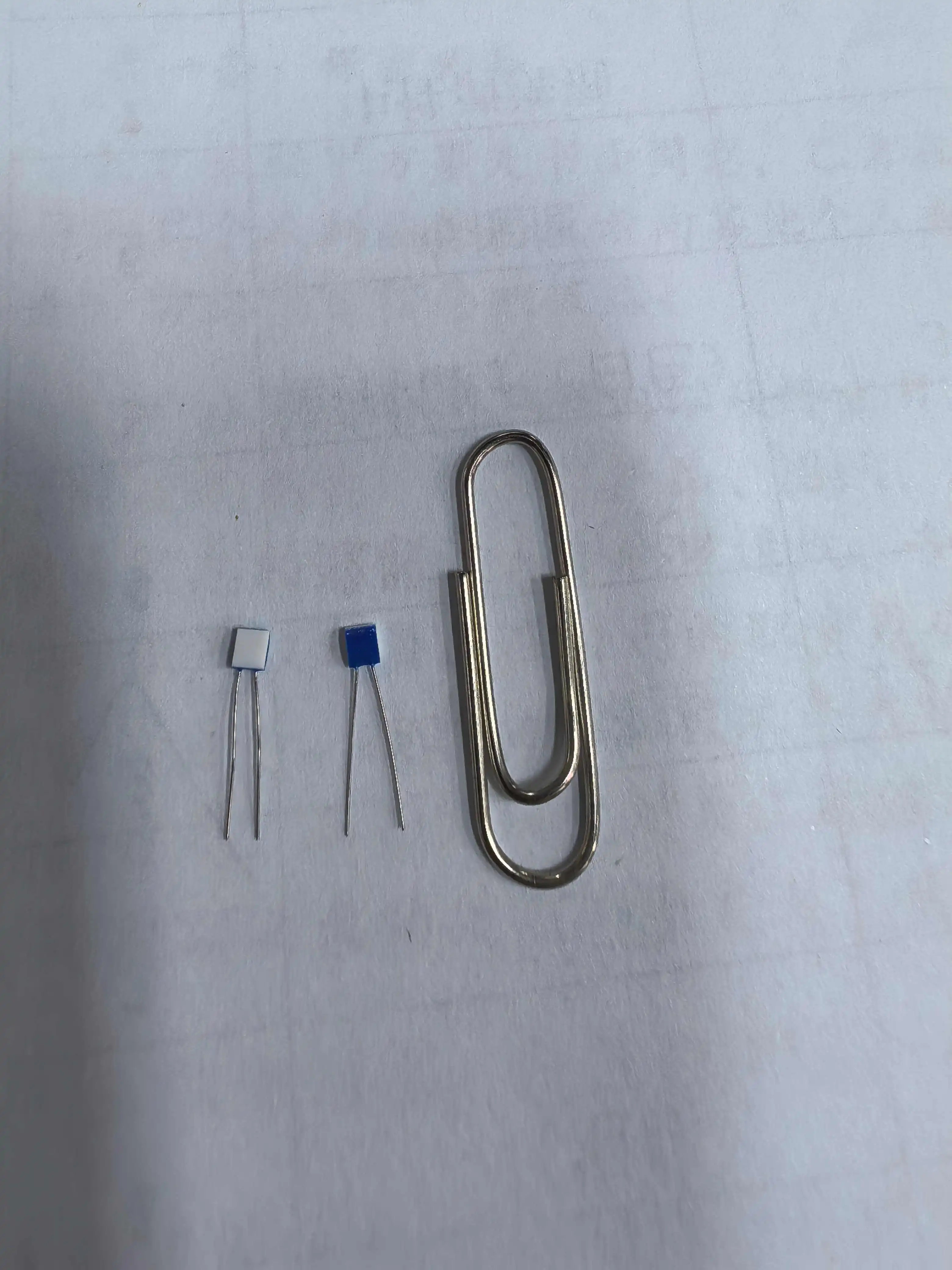

RTD Sensor With Wire Leads

Introduction to Our RTD Sensor With Wire Leads

Our platinum resistance thermistor sensors are engineered for precision temperature measurement in demanding environments. Whether monitoring machinery in automotive manufacturing or ensuring safety in aerospace systems, these wire-lead RTDs combine reliability with flexibility. Built to IEC 60751 standards, they operate seamlessly from -200°C to +850°C.

Why Choose Our RTD Sensors?

Unmatched Accuracy: ±0.01Ω (1/40B level) ensures reliable data.
Customizable Designs: Tailor lead materials (platinum-nickel, pure platinum), sizes (1.2–4.0mm), and packaging.
Rugged Performance: Withstands 40g vibration, 100g shock, and extreme temperatures.
Certified Quality: ISO 9001, RoHS, and CE compliant.
Fast Turnaround: Bulk orders shipped globally in 5–7 days.

Technical Specifications

Parameter	Value
Element Dimensions	2.0x2.3x1.0mm / 2.0x4.0x1.0mm
Lead Material	Platinum-nickel (optional silver-palladium)
Lead Tensile Strength	≥9 N
Temperature Coefficient	3850 ppm/°C
Response Time (Water Flow)	0.05s (t₀.₅), 0.15s (t₀.₉)
Long-Term Stability	≤±0.04% drift after 1000h at 50°C

Reference Selection Guide

Model	Size (mm)	Lead Material	Best For
TZ-2.3	2.0x2.3x1.0	Platinum-nickel	High-vibration environments
TZ-4.0	2.0x4.0x1.0	Silver-palladium	Ultra-low temperature labs

Key Features

High TCR Consistency: 3850 ppm/°C ensures linear response.
Rapid Response: Detect temperature changes in 0.05 seconds.
Vibration-Resistant: Ideal for heavy machinery and aerospace.
Low Self-Heating: 0.4°C/mW minimizes measurement interference.
Stability Guaranteed: ≤0.04% drift for long-term reliability.

Applications

Industrial Automation: Process control in chemical reactors.
Medical Equipment: Sterilization autoclaves, MRI machines.
Automotive: Engine testing, battery thermal management.
Aerospace: Avionics and propulsion monitoring.
HVAC: Precision climate control systems.

Certificates & Compliance

Our sensors are the epitome of precision and reliability, meticulously crafted to meet the exacting requirements of IEC 60751, ASTM E1137, and EN 60751 standards. IEC 60751, a globally recognized norm for resistance thermometers, ensures that our sensors provide accurate temperature measurements with consistent performance. ASTM E1137 sets the bar high for the evaluation of temperature sensors, and our products excel in these stringent tests, confirming their durability and functionality. EN 60751, aligned with international best practices, further validates our commitment to quality and safety. By adhering to these standards, we guarantee that our sensors deliver top - notch performance, making them a trusted choice for a wide range of applications.

certificate

Packing & Delivery

Our RTD Sensor With Wire Leads is designed as a highly effective safeguard for your products. By creating an airtight environment, it provides comprehensive protection against a variety of threats, including moisture, dust, oxidation, and physical damage during transit. This ensures that items remain in pristine condition, preserving their quality and integrity. To facilitate seamless global delivery, we have established partnerships with renowned logistics giants DHL and FedEx. Leveraging their extensive networks and efficient shipping processes, we can guarantee prompt and secure transportation of your orders to virtually any destination worldwide, offering you peace of mind and reliable service.

FAQs

Can I request custom lead lengths?
Yes! Specify requirements at inquiry.
What's the minimum order quantity?
MOQ is 50 units; bulk discounts apply.
Are your sensors RoHS-compliant?
Absolutely, and CE-certified.
How do I ensure proper installation?
Download our step-by-step guide or contact support.
What's the warranty period?
18 months against manufacturing defects.

Contact Us for Precision Temperature Solutions

Elevate your systems with sensors trusted by global leaders. Email sales11@xatzd.com for quotes, customization, or technical support.

Originality & Expertise Assurance

Every RTD Sensor With Wire Leads reflects 15+ years of R&D in microsensor technology. Our engineers are ready to optimize solutions for your unique challenges.
