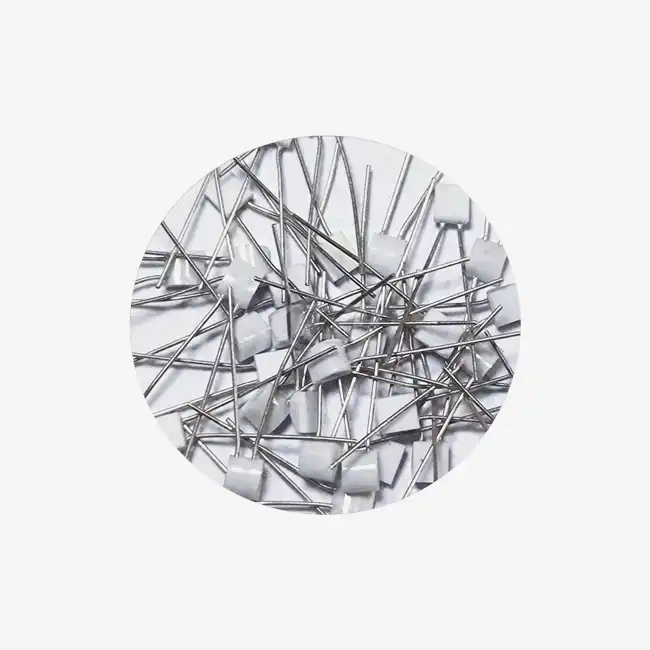

Pt100 Sensors

Name: Pt100 Sensors
SKU: N/A

Element Type:SMD Thin Film Platinum Resistance Thermistor
Element Dimensions:3.2mm x 1.6mm x 0.7mm
Temperature Coefficient (TCR):3850 ppm/°C
Temperature Measurement Range:-50°C to +200°C
Long-Term Stability:≤±0.06% resistance drift of R₀°C after 1000 hours at 200°C
Terminal Type:Tin alloy terminals
Soldering Method:Reflow soldering or wave soldering. High-temperature solder paste recommended.
Soldering temperature: 230-240°C

Send Inquiry

Download

Product Description

Pt100 Sensors Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. is a trusted Pt100 Sensors manufacturer & supplier, specializing in ultra-reliable thin-film platinum thermistors. With cutting-edge automation, ISO9001 certification, and 3850ppm/℃ TCR compliance, our sensors deliver unmatched accuracy (±0.01Ω) and stability (≤0.06% drift) for demanding industries like automotive, aerospace, and medical tech.

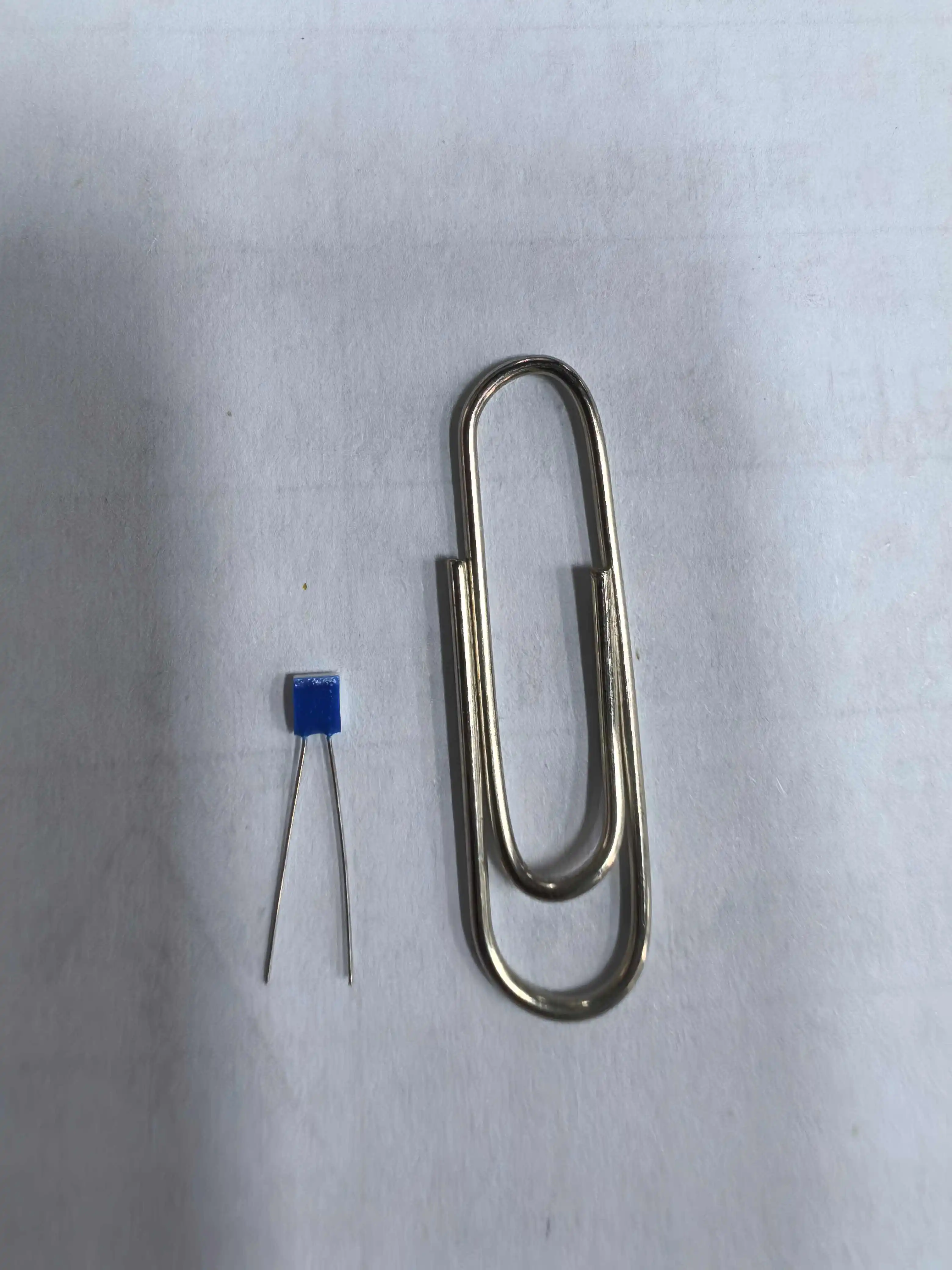

Pt100 Sensors

Why Choose Our Pt100 Sensors?

Wide Temperature Range: Engineered to handle diverse thermal conditions, our sensors can measure temperatures seamlessly from a frigid -50°C to a sweltering +200°C. This extensive range makes them suitable for applications in industries such as refrigeration, manufacturing, and automotive.
Robust Design: Built with durability in mind, our sensors feature a robust design that can endure 40g of vibration and 100g of shock. They are capable of operating reliably in harsh environments, including those with high levels of dust, moisture, and extreme temperatures.
Fast Response: In dynamic systems where quick decisions are crucial, our sensors shine with a rapid response time of 0.05 seconds. This enables real-time control, allowing for immediate adjustments to maintain optimal performance and efficiency.
Customizable: Understanding that one size doesn't fit all, we offer customizable options for our sensors. You can tailor the probe sizes between 1.2mm–4.0mm and choose from lead materials like platinum or nickel alloys to meet the specific needs of your project.

Pt100 Sensors Specifications

Parameter	Value
Element Type	SMD Thin Film Platinum
Dimensions	3.2mm x 1.6mm x 0.7mm
TCR	3850 ppm/°C (IEC60751)
Temperature Range	-50°C to +200°C
Accuracy	±0.01 Ω (1/30B level)
Terminal Type	Tin alloy (reflow/wave soldering)

Reference Selection Guide

Application	Recommended Part No.
High-Temperature Processes	TTD-Pt100-H200
Ultra-Low Temp Labs	TTD-Pt100-L50
Automotive Testing	TTD-Pt100-AUTO
Medical Equipment	TTD-Pt100-MED

Key Features of Our Pt100 Sensors

Engineered with meticulous attention to detail for unparalleled precision, our platinum resistors are crafted to deliver exceptional long-term stability, even when faced with the most extreme environmental conditions. Their advanced construction and high-quality materials ensure consistent performance over extended periods, reducing the need for frequent calibration or replacement. The compact SMD (Surface Mount Device) design is a game-changer, streamlining the integration process into PCB assemblies and saving valuable board space. The tin alloy terminals are optimized for rapid soldering within the 230–240°C temperature range, enabling faster production cycles and increased manufacturing efficiency. These features make our platinum resistors the ideal choice for OEMs seeking scalable, high-performance solutions that can meet the demands of diverse applications while maintaining strict quality standards.

Pt100 Sensors Applications

Industrial Automation: Monitor machinery health in real time.
HVAC Systems: Optimize energy efficiency with accurate climate control.
Pharmaceuticals: Maintain strict temperature standards in labs.
Aerospace: Ensure reliability in critical navigation systems.

Certificates & Compliance

Our Pt100 Sensors are engineered to exemplify the highest levels of quality and compliance. Rigorously tested and certified to meet the exacting requirements of ISO9001, RoHS, and CE standards, these sensors ensure consistent performance, environmental safety, and regulatory compliance. The ISO9001 certification attests to our robust quality management system, while RoHS compliance guarantees the use of eco - friendly materials. The CE mark validates adherence to strict European health, safety, and environmental regulations. Moreover, we provide full traceability for each sensor, meticulously documenting every stage of production, from raw material sourcing to final assembly. This comprehensive approach to quality assurance offers our customers complete transparency and confidence in the reliability and integrity of our Pt100 Sensors.
