Pt100 Temperature Sensing Element

Name: Pt100 Temperature Sensing Element
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 500°C
Response Time:Flow (V=0.4 m/s):t0.5 = 0.05 s,t10 = 0.15 s;Airflow (V=2 m/s):t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Pt100 Temperature Sensing Element Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. specializes in manufacturing high-performance Pt100 Temperature Sensing Elements designed for industries demanding unmatched accuracy and reliability. As an ISO 9001, CE, and RoHS-certified leader, we combine cutting-edge thin-film platinum resistor technology with customizable solutions to meet rigorous global standards.

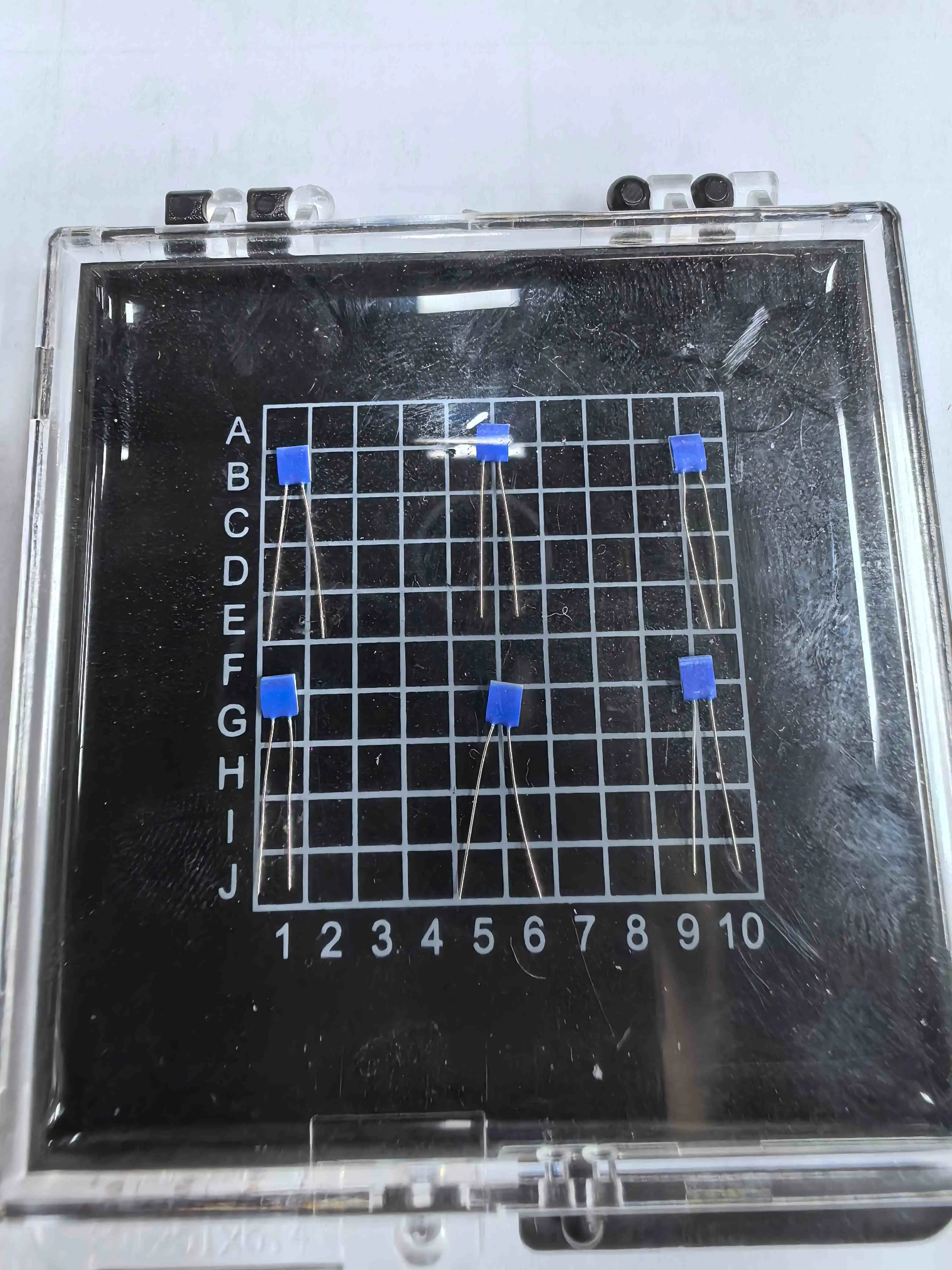

Pt100 Temperature Sensing Elements

Why Choose Our Pt100 Temperature Sensing Element?

IEC 60751 Compliance: Rigorously adhering to IEC 60751, it offers a guaranteed TCR of 3850 ppm/°C, enabling effortless integration into worldwide temperature - monitoring systems.
Customization Flexibility: Enjoy extensive flexibility with multiple sizes ranging from 1.2mm–4.0mm and various lead materials like platinum - nickel and silver - palladium, customized to fit your specific application.
Robust Performance: Engineered for durability, it can endure vibrations up to 40g, 100g shocks, and function reliably across extreme temperatures from -200°C to +850°C.
Rapid Response: In flow conditions, it delivers incredibly fast readings within 0.05 seconds, providing real - time temperature data for efficient monitoring and control.

Specifications

Parameter	Value
Element Dimensions	2.0x2.3x1.0mm, 1.6x2.0x1.0mm, 1.2x2.0x1.0mm
Lead Material	Platinum-Nickel (Optional: Silver-Palladium, Pure Platinum)
TCR	3850 ppm/°C
Accuracy	±0.01 Ω (1/30B Level)
Long-Term Stability	≤±0.04% drift after 1000 hours at 500°C
Insulation Resistance	100 MΩ at 20°C; >2 MΩ at 500°C

Reference Selection Guide

Application	Recommended Size	Lead Material
Industrial Automation	2.0x2.3x1.0mm	Platinum-Nickel
Medical Devices	1.2x2.0x1.0mm	Silver-Palladium
Aerospace Testing	1.6x2.0x1.0mm	Pure Platinum

Key Features

Ultra-High Accuracy: Achieve ±0.1°C precision for critical processes.
Extreme Environment Durability: Perform reliably in corrosive, high-vibration, or rapid-thermal-shift scenarios.
Custom-Built Solutions: Optimize lead lengths, materials, and packaging (vacuum-sealed or OEM formats).
Certified Quality: Backed by ISO, CE, and RoHS certifications for global compliance.

Applications

Industrial: Process control, chemical reactors, oil & gas pipelines.
Medical: Laboratory instruments, sterilization systems.
Automotive: Battery thermal management, engine testing.
Aerospace: Satellite components, environmental chambers.

Certificates & Compliance

Our Pt100 Temperature Sensing Element is a paragon of quality and compliance, rigorously meeting the exacting standards of ISO 9001, CE, and RoHS. The ISO 9001 certification underscores our commitment to maintaining a robust quality management system, ensuring consistent and reliable performance of the sensing element. The CE mark attests to our adherence to European health, safety, and environmental protection regulations, while RoHS compliance confirms that our product is free from hazardous substances, safeguarding both users and the environment. To provide you with complete peace of mind, we are happy to provide the relevant certificates upon request, offering tangible proof of our dedication to excellence and regulatory compliance.

Packing & Delivery

certificate

Our vacuum-sealed plastic packaging is a highly effective solution designed to ensure moisture-free transit for your products. By creating an airtight environment, it prevents any exposure to humidity, safeguarding sensitive components and materials from potential water damage. This packaging method not only protects the integrity of the items during shipping but also extends their shelf life. For bulk orders, we have a streamlined process in place to ensure prompt delivery. We commit to shipping large quantities within 7–14 days, balancing the need for careful preparation and efficient logistics to meet your requirements while maintaining the highest standards of product protection.

FAQs

Can you customize lead lengths beyond 10mm?
Yes! We adjust lengths (5mm–50mm) to match your assembly requirements.
What's the minimum order quantity?
MOQ starts at 500 units, with discounts for 5,000+ quantities.
Do you provide IEC 60751 test reports?
Full compliance documentation accompanies every shipment.
How do you ensure long-term stability?
Our automated production line uses laser-trimmed thin-film technology for consistency.
Is technical support available post-purchase?
Our engineers offer lifetime troubleshooting and integration guidance.

Contact Us

Elevate your temperature measurement systems with Xi'an Tongzida's Pt100 Temperature Sensing Element. Reach our team at sales11@xatzd.com for quotes, samples, or technical inquiries.
