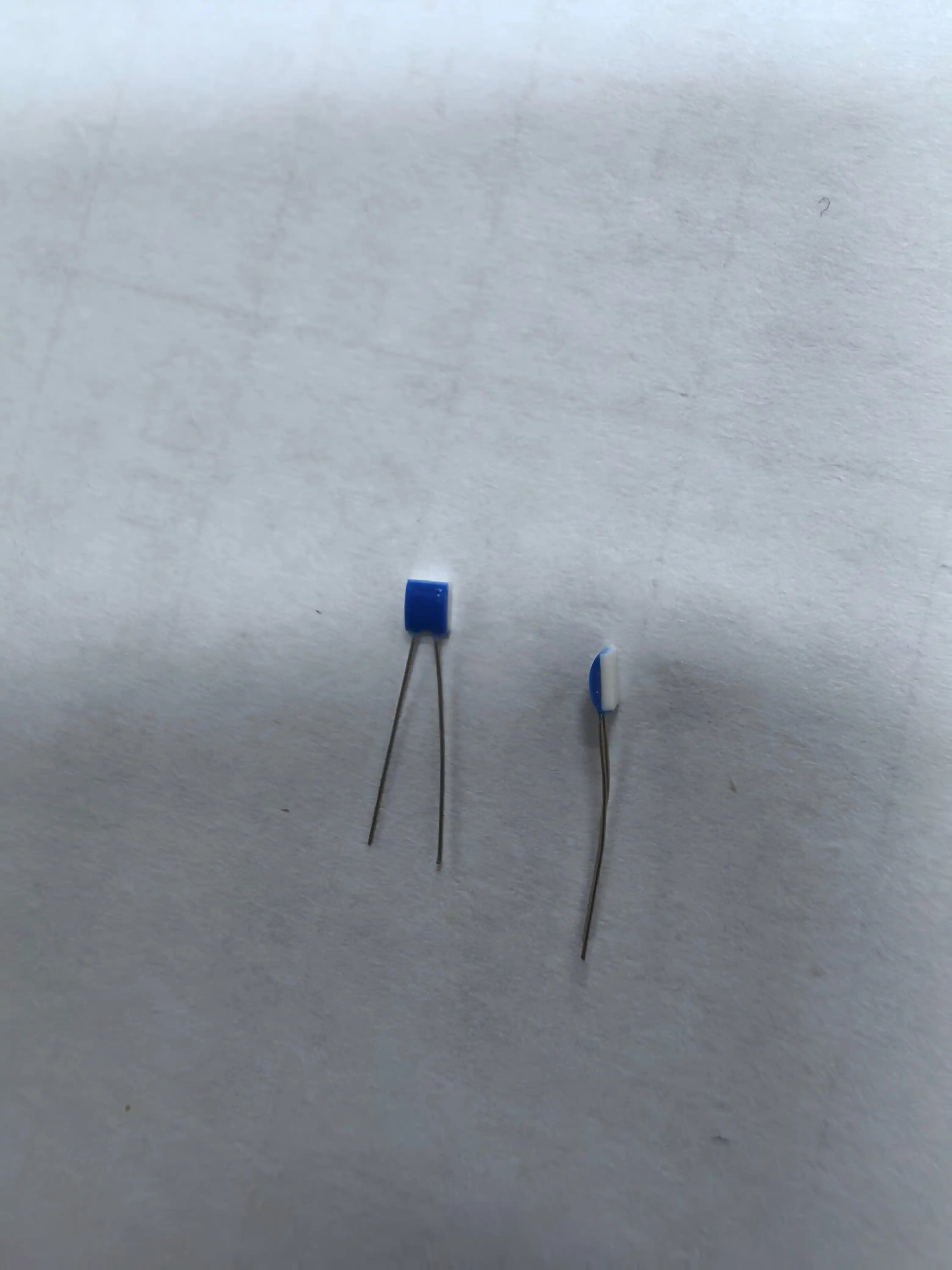

Pt20 RTD Chip

Name: Pt20 RTD Chip
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:Maximum current: 900 mA
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 500°C
Response Time:Water Flow (V=0.4 m/s):t₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other formats available upon request)

Send Inquiry

Download

Product Description

Your Trusted Pt20 RTD Chip Manufacturer And Supplier

As a leading Pt20 RTD Chip manufacturer, Xi'an Tongzida Technology combines cutting-edge thin-film sensor design with ISO 9001-certified production. Our chips deliver unmatched accuracy (±0.01Ω), long-term stability (≤0.04% drift), and durability for industrial, medical, and aerospace applications.

Pt20 RTD Chip

Why Choose Our Pt20 RTD Chip?

Global Compliance: Our Pt20 RTD Chip adhere rigorously to IEC 60751 for precise temperature sensing, ASTM E1137 for reliability, and RoHS for environmental safety, ensuring worldwide regulatory acceptance and quality assurance.
Robust Performance: Engineered to endure harsh conditions, our items can withstand 40g vibration and 100g shock, operating flawlessly across extreme temperatures from -200°C to +850°C, ideal for tough industrial applications.
Custom Solutions: We offer tailored options to meet specific needs. You can choose lead materials like platinum-nickel or silver-palladium, select sizes ranging from 1.2–4.0mm, and customize packaging for a perfect fit.
Bulk Order Ready: Equipped for large-scale demands, our scalable production utilizes vacuum-sealed packaging. This safeguards product quality during transit, ensuring consistency and reliability for bulk orders.

Pt20 RTD Chip Specifications

Parameter	Specification
Dimensions	2.0mm x 2.3mm x 1.0mm
Lead Material	Platinum-nickel (default); options available
Temperature Coefficient	3850 ppm/°C
Response Time (Water)	t₀.₅ = 0.05 s; t₀.₉ = 0.15 s
Insulation Resistance	100 MΩ at 20°C; >2 MΩ at 500°C
Long-Term Stability	≤±0.04% drift after 1000h at 500°C

Reference Selection Guide

Application	Recommended Configuration
Automotive Sensors	Pure platinum leads; 100g shock resistance
Medical Devices	Vacuum packaging; 0.05s response time
Aerospace Systems	Custom sizing; 40g vibration resistance

Key Features of Our Pt20 RTD Chip

Ultra-Fast Response: Achieve real-time temperature monitoring with 0.05s reaction in liquid environments.
Drift-Free Performance: Maintain precision even after prolonged exposure to 500°C conditions.
Versatile Integration: Compatible with PLCs, SCADA systems, and IoT platforms.
