Pt300 RTD Chip

Name: Pt300 RTD Chip
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 3.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.1–0.8 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 500°C
Response Time:Water Flow (V=0.4 m/s):₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Pt300 RTD Chip Manufacturer And Supplier

As a leading Pt300 RTD Chip manufacturer, Xi'an Tongzida combines cutting-edge thin-film technology with ISO 9001-certified production. Our chips deliver unmatched accuracy (±0.01 Ω), stability (±0.04% drift), and durability (100g shock resistance), empowering industries worldwide to achieve precise temperature control.

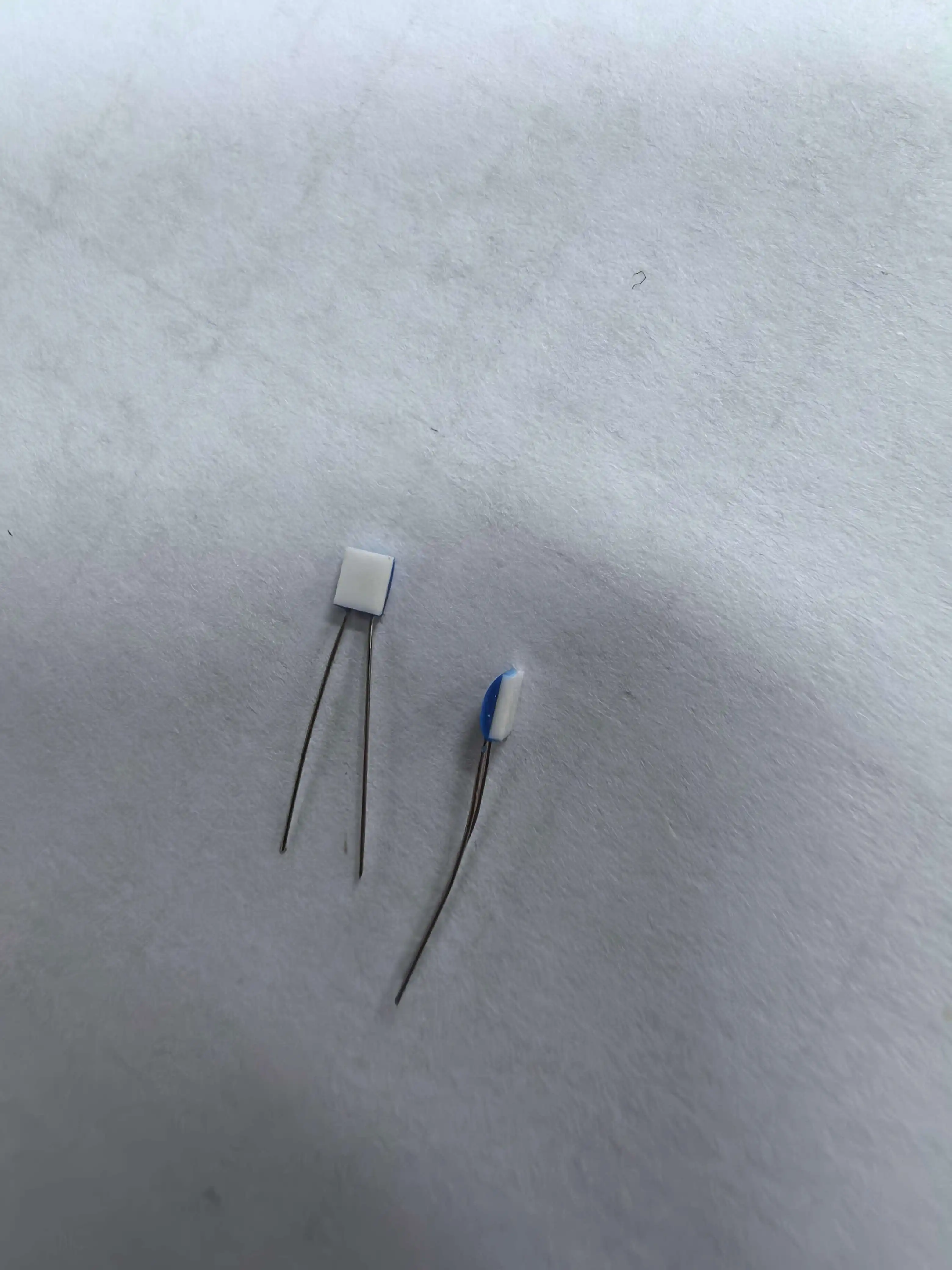

Pt300 RTD Chip

Why Choose Our Pt300 RTD Chip?

Global Compliance: Our Pt300 RTD Chip exhibit global compliance, delivering IEC60751-standard performance with a TCR of 3850 ppm/°C. This ensures accurate and consistent temperature sensing, meeting international benchmarks for reliability across diverse industries.
Robust Design: Engineered for resilience, our sensors feature a robust design. Capable of withstanding 40g vibrations, 100g shocks, and extreme temperatures ranging from -200°C to +850°C, they perform reliably in the harshest conditions.
Custom Solutions: We offer custom solutions to fit your specific needs. You can tailor lead materials like Pt-Ni or Ag-Pd, select sizes from 1.2–4.0mm, and choose the ideal packaging, ensuring a perfect match for your application.
Fast Response: In liquid environments, our sensors shine with a fast response time. Detecting temperature shifts in just 0.05 seconds, they enable real-time monitoring and quick adjustments for optimal process control.

Pt300 RTD Chip Specifications

Parameter	Value
Element Dimensions	2.0mm x 3.0mm x 1.0mm
Lead Material	Platinum-nickel (default)
Temperature Range	-200°C to +850°C
Accuracy	±0.01 Ω (1/30B level)
Long-Term Stability	≤±0.04% drift after 1000h at 500°C
Vibration Resistance	40g (10–2000 Hz)
Self-Heating Coefficient	0.4°C/mW at 0°C

Key Features of Our Pt300 RTD Chip

Ultra-Fast Response: Achieve t₀.₅ = 0.05s in liquid flows for real-time monitoring.
High Stability: Minimal drift ensures reliable performance in prolonged high-temperature operations.
Durability: Engineered for harsh environments, from automotive underhoods to aerospace systems.
Low Self-Heating: 0.4°C/mW ensures minimal measurement interference.

Applications of the Pt300 RTD Chip

Industrial Automation: Process control in chemical reactors or semiconductor manufacturing.
HVAC Systems: Energy-efficient climate control in smart buildings.
Medical Devices: Lab equipment sterilization or patient monitoring.
Electric Vehicles: Battery thermal management and motor overheating prevention.

Certifications & Quality Assurance

Our Pt300 RTD Chip is a paragon of quality and reliability, meticulously engineered to comply with the stringent ISO 9001, CE, and RoHS standards. The ISO 9001 certification attests to our unwavering commitment to maintaining a top - tier quality management system throughout the production process. The CE mark validates our adherence to strict European health, safety, and environmental regulations, while RoHS compliance showcases our dedication to using only environmentally friendly materials. Rigorous testing is integral to our manufacturing process, with each chip undergoing 500 hours of accelerated aging to simulate long - term usage and ensure durability. Additionally, batch - level traceability is implemented, allowing for full transparency and accountability from raw material sourcing to the final product, providing our customers with complete confidence in the performance and integrity of our Pt300 RTD Chip.

certificate

Packaging & Delivery

Our standard vacuum-sealed packaging is a cornerstone of product protection, creating an impermeable barrier that guarantees exceptional moisture resistance. This advanced packaging method effectively wards off humidity, preventing any potential damage to the contents caused by water intrusion, oxidation, or mold growth. Whether stored in damp environments or during long - distance transit, our products remain in pristine condition. Understanding the urgency many customers face, we offer expedited global shipping options. Leveraging a robust network of logistics partners, we ensure that your orders reach their destinations swiftly, no matter where in the world you are located, balancing reliability with speed.

FAQs

Q: Can I request custom lead lengths?
A: Yes! We offer lead customization (e.g., 10mm default) to match your assembly requirements.

Q: Are your chips compatible with automotive standards?
A: Absolutely. We adhere to IATF 16949 protocols for automotive-grade reliability.

Q: What's the MOQ for bulk orders?
A: Flexible MOQs start at 500 units, with discounts for 10,000+ quantities.

Q: How do you ensure supply chain stability?
A: We maintain a 6-month raw material buffer and dual-source critical components.

Q: Do you provide sample testing?
A: Free samples available for performance validation.

Contact Us for Precision Temperature Solutions

Elevate your projects with Xi'an Tongzida's Pt300 RTD Chip. Email sales11@xatzd.com for quotes, datasheets, or technical support.
