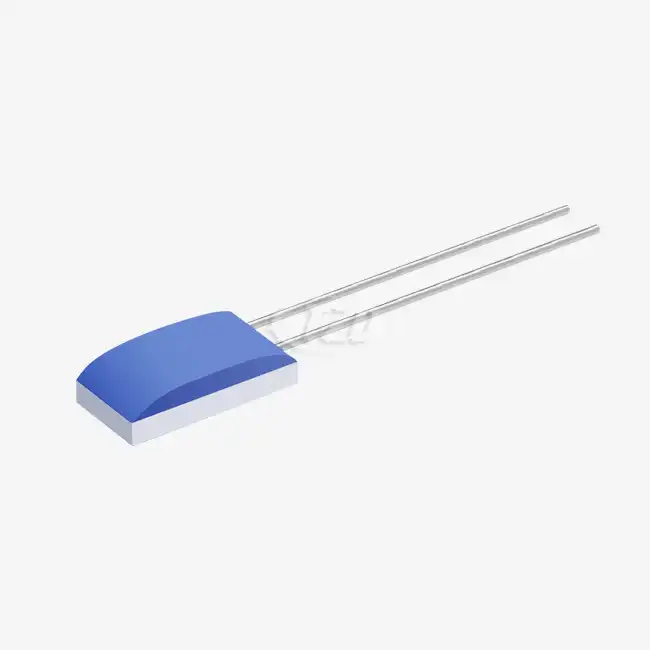

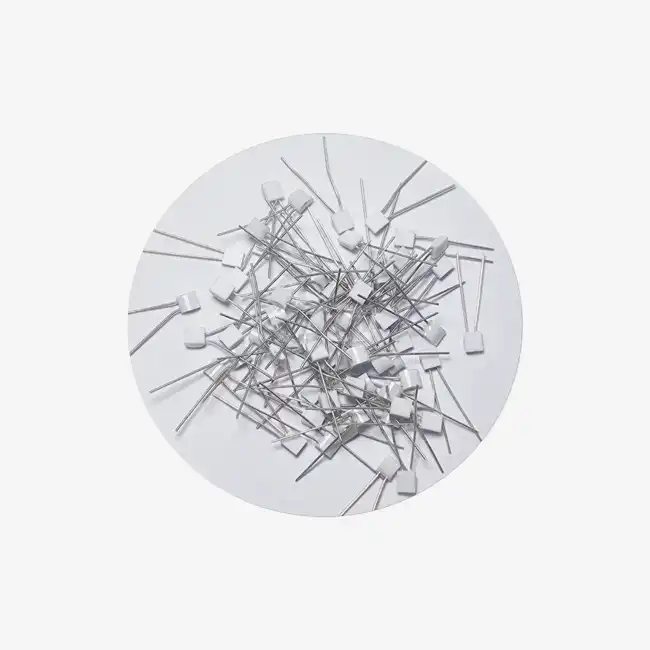

Thin Film Platinum Resistor Pt1000-DW

Name: Thin Film Platinum Resistor Pt1000-DW
SKU: N/A

Element Type:Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,2.0mm x 4.0mm x 1.0mm
Lead Specifications；Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.1–0.3 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 500°C
Response Time:Water Flow (V=0.4 m/s):t₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)

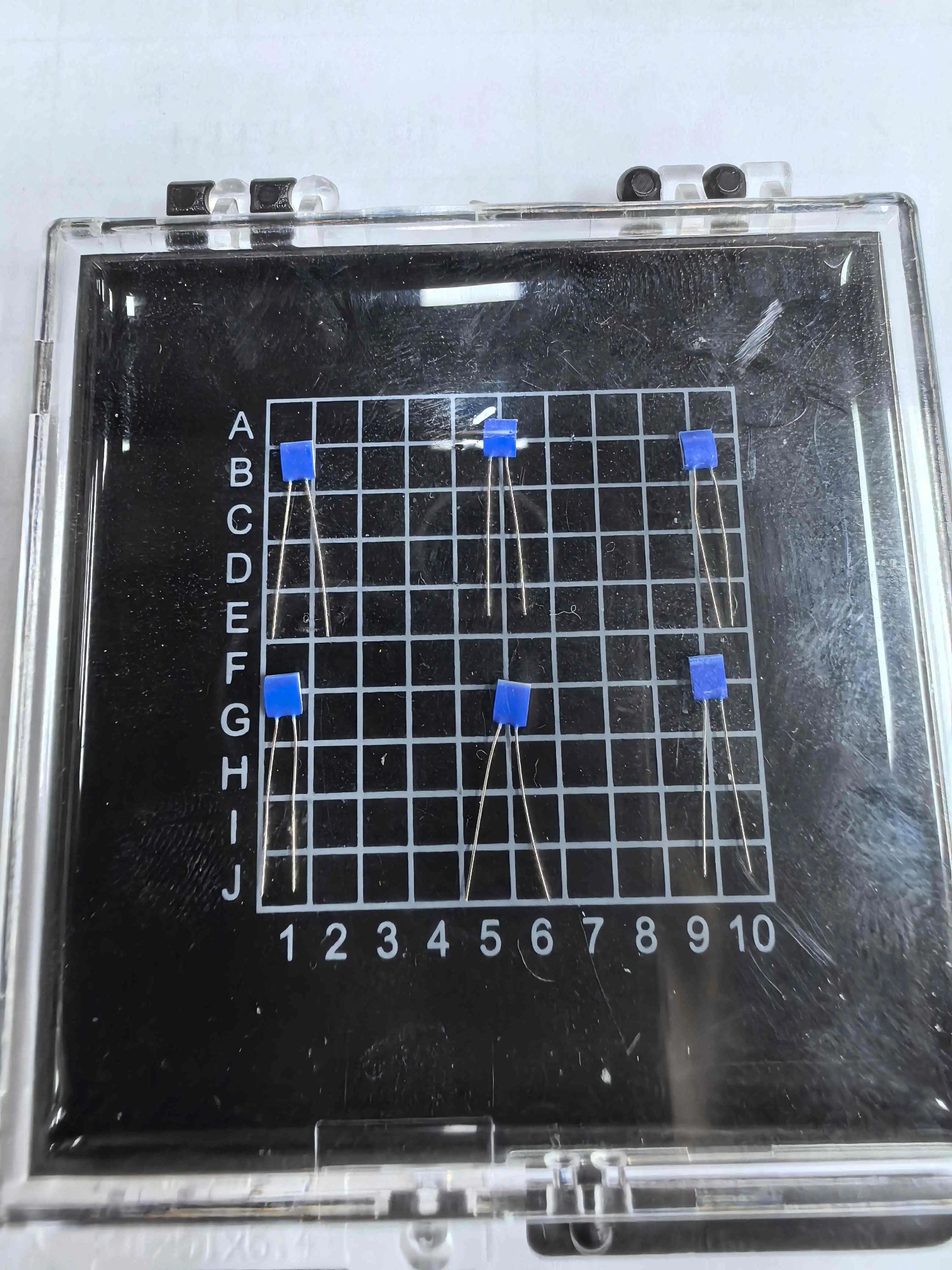

Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Thin Film Platinum Resistor Pt1000-DW Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. is a leading

Thin Film Platinum Resistor Pt1000-DW

manufacturer and supplier, specializing in high-performance sensors for industries like automotive, aerospace, and medical devices. With ISO 9001, RoHS, and CE certifications, our Pt1000-DW excels in accuracy (±0.01 Ω), stability (≤0.04% drift), and durability (100g shock resistance), backed by 20+ years of R&D expertise.

Why Choose Our Thin Film Platinum Resistor Pt1000-DW?

Ultra-Fast Response: Achieve readings in 0.05 seconds in liquid environments.
Wide Temperature Range: Operate reliably from -200°C to +850°C.
Customizable Designs: Choose lead materials (platinum-nickel, pure platinum) and sizes (1.2mm–4.0mm).
Rugged Performance: Withstand 40g vibration and 100g shock for harsh industrial or aerospace use.

Specifications of the Pt1000-DW Thin Film Platinum Resistor

Parameter	Value
Element Dimensions	2.0mm x 2.3mm x 1.0mm; 2.0mm x 4.0mm x 1.0mm
Lead Material	Platinum-nickel (default); optional silver-palladium, pure platinum
Temperature Coefficient (TCR)	3850 ppm/°C (IEC60751 compliant)
Response Time (Water Flow)	t₀.₅ = 0.05 s; t₀.₉ = 0.15 s
Shock Resistance	100g acceleration (8 ms half-sine wave)
Insulation Resistance	100 MΩ at 20°C; >2 MΩ at 500°C

Reference Selection Guide

Application	Recommended Model	Key Benefit
Industrial Process Control	Pt1000-DW-HV	High vibration resistance (50g)
Medical Sterilization Monitoring	Pt1000-DW-MD	Ultra-low drift (±0.02%) for lab precision
EV Battery Management	Pt1000-DW-EV	Optimized for -50°C to +200°C thermal cycling

Factory pictures

Features of the Pt1000-DW Thin Film Platinum Resistor

High Accuracy: ±0.1°C tolerance ensures reliable data for critical systems.
Long-Term Stability: Minimal drift even after 1000+ hours at 50°C.
Flexible Integration: Custom lead lengths and packaging (vacuum-sealed default).
Low Self-Heating: 0.4°C/mW coefficient minimizes measurement interference.

Applications

Industrial Automation: Use advanced sensors to precisely monitor machinery temperatures in HVAC and semiconductor production.
Medical Devices: Rely on high - quality sensors to guarantee accurate temperature readings in patient monitors and lab gear.
Aerospace: Employ rugged sensors to track engine and avionics temperatures during extreme flight conditions.
EVs: Equip vehicles with rapid - response sensors to effectively manage battery thermal safety for reliable operation.

Certificates & Compliance

Our Thin Film Platinum Resistor Pt1000-DW is a high - quality product that adheres to multiple international standards. It complies with ISO 9001, guaranteeing consistent quality management and reliability. The RoHS compliance ensures that it is free from hazardous substances, making it environmentally friendly. With CE certification, it meets the safety, health, and environmental protection requirements across the European market. Additionally, it offers IATF 16949 compatibility, which is essential for automotive clients, ensuring that the resistor meets the strict quality and safety standards specific to the automotive industry.

certificate

Packing & Delivery

Our standard vacuum-sealed packaging is meticulously designed to provide exceptional moisture resistance, safeguarding your products from any potential damage caused by humidity during storage and transit. For bulk orders, we offer a reliable shipping service with a delivery window of 4–6 weeks. To keep you informed every step of the way, we provide real-time tracking, allowing you to monitor the progress of your shipment at any time. This seamless combination of secure packaging and transparent shipping ensures your order arrives in perfect condition.

FAQs

Can I request custom lead lengths?
Yes! We tailor leads from 5mm to 50mm for seamless integration.
What's the minimum order quantity (MOQ)?
MOQ starts at 100 units, with discounts for 1000+ orders.
Do you provide technical documentation?
Full datasheets, TCR curves, and compliance certificates included.
How do you ensure quality?
Each product undergoes 15+ tests for TCR, insulation, and shock resistance.
What's the warranty period?
18-month warranty with lifetime technical support.

Contact Us for Reliable Temperature Solutions

Need a Thin Film Platinum Resistor Pt1000-DW tailored to your project? Email sales11@xatzd.com for quotes, samples, or technical advice. Let's engineer precision together!
