Drop Head Package Temperature Sensor

Name: Drop Head Package Temperature Sensor
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,1.6mm x 2.0mm x 1.0mm,1.2mm x 2.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/silver-nickel)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.3 ~ 1 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift after 1000 hours at 50°C
Response Time:Flow (V=0.4 m/s):t0.5 = 0.05 s,t10 = 0.15 s;Airflow (V=2 m/s):t0.5 = 3 s,t10 = 10 s
Self-Heating Coefficient:0.4°C/mW
Vibration Resistance:≥40g acceleration (10 ~ 2000 Hz frequency range)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Drop Head Package Temperature Sensor Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. specializes in manufacturing Drop Head Package Temperature Sensors designed for industries demanding unmatched accuracy and durability. As a certified platinum resistor supplier (ISO9001, CE, RoHS), we combine advanced thin-film technology with IEC60751 compliance to deliver sensors with a 3850ppm/°C TCR, ±0.01Ω accuracy, and vibration resistance up to 40g. Trusted by aerospace, automotive, and medical sectors, our solutions ensure precise temperature measurement even in extreme conditions (-200°C to +850°C).

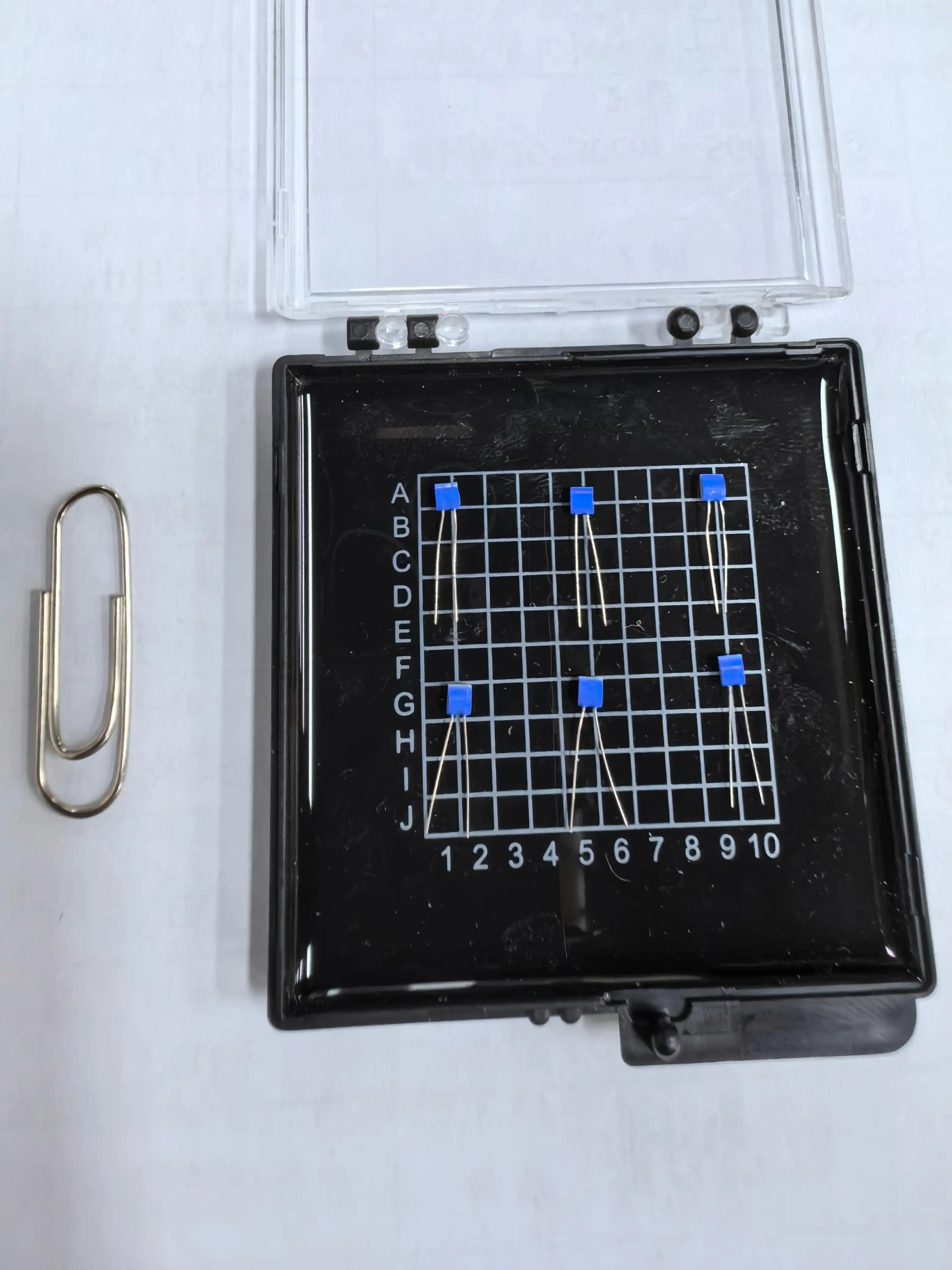

Drop Head Package Temperature Sensors

Why Choose Our Drop Head Package Temperature Sensor?

Ultra-Fast Response: Our Drop Head Package Temperature Sensor offer an ultra-fast response, enabling real-time monitoring with a mere 0.05s reaction time under flow conditions. This rapid performance ensures timely and accurate data capture for efficient operations.
Customizable Designs: Tailor our sensors to your needs with customizable designs. Choose from 3 sizes ranging from 1.2mm to 4.0mm, and select lead materials including platinum-nickel, silver-palladium, or pure platinum for optimal functionality.
Long-Term Stability: Engineered for reliability, our sensors feature long-term stability. Exhibiting ≤0.04% resistance drift after 1,000 hours at 50°C, they maintain consistent performance over extended periods.
Robust Performance: Built to endure tough environments, our sensors showcase robust performance. With a 100g shock resistance rating and vacuum-compatible packaging, they function reliably in challenging conditions.

Technical Specifications

Parameter	Value
Temperature Range	-200°C to +850°C
Accuracy	±0.01Ω (1/40B level)
Lead Tensile Strength	≥9 N
Insulation Resistance	100 MΩ (20°C), >2 MΩ (500°C)
Self-Heating Coefficient	0.4°C/mW

Reference Selection Guide

Application	Recommended Model	Key Benefit
Industrial Automation	TD-S2.0x2.3	High shock/vibration resistance
Medical Equipment	TD-S1.2x2.0	Ultra-fast response & miniaturization
Aerospace Systems	TD-S1.6x2.0	Vacuum packaging & extreme temp stability

Key Features

Precision Engineering: Thin-film platinum resistors ensure ±0.01Ω accuracy for critical processes.
Durability: Operate reliably under 40g vibrations and 100g shocks.
Versatility: Ideal for harsh environments, including vacuum and high-pressure systems.
Custom Solutions: Tailor lead materials, sizes, and packaging to your needs.

Applications

Automotive: Engine testing, battery thermal management.
Aerospace: Jet engine monitoring, satellite systems.
Medical: Sterilization equipment, diagnostic devices.
Energy: Power plant sensors, renewable energy systems.

Certifications & Compliance

Our Drop Head Package Temperature Sensors are meticulously crafted to meet the stringent requirements of ISO9001, CE, and RoHS standards, which serve as the cornerstone for global regulatory alignment. The ISO9001 certification validates our robust quality management system, guaranteeing consistent excellence in every production phase. The CE mark confirms that our sensors comply with European Union safety, health, and environmental protection regulations, facilitating seamless market access across Europe. Meanwhile, RoHS compliance showcases our commitment to environmental stewardship by restricting the use of hazardous substances. These certifications collectively ensure that our sensors not only meet international benchmarks but also provide customers worldwide with reliable, safe, and sustainable solutions.

certificate

Packing & Delivery

Our default packaging option is vacuum - sealed, which provides an airtight environment to protect products from external contaminants, oxidation, and moisture during transit. However, we understand that different products have unique requirements. That's why we also offer optional anti - static and moisture - proof packaging formats. The anti - static packaging safeguards sensitive electronics from electrostatic discharge, while the moisture - proof variant provides enhanced protection against humidity. For shipping, we partner with renowned carriers DHL and FedEx to offer global delivery. Their extensive networks ensure reliable, timely, and secure transportation of your orders to destinations worldwide.

FAQ

Q1: Can I request non-standard lead lengths?
A: Yes! We offer customization for lead lengths, materials, and connectors.

Q2: Are your sensors compatible with high-vacuum systems?
A: Absolutely. Our vacuum-ready designs minimize outgassing.

Q3: Do you provide bulk order discounts?
A: Contact us for volume-based pricing and framework agreements.

Q4: What's the typical lead time for 500+ units?
A: 2–3 weeks, with expedited options available.

Q5: How do you ensure long-term stability?
A: Rigorous aging tests and 3850ppm/°C TCR calibration guarantee performance.

Contact Us

Elevate your thermal sensing with Xi'an Tongzida's Drop Head Package Temperature Sensor.
📧 Email: sales11@xatzd.com
🌐 Custom quotes, technical specs, and samples available upon request.
