Precision Matters: Pt100 Thin Film Sensors in Medical Devices

In the realm of medical devices, precision is not just a desirable attribute; it's an absolute necessity. The thin film Pt100 sensor has emerged as a cornerstone in this pursuit of accuracy, revolutionizing temperature measurement in medical applications. These sensors, with their exceptional stability, rapid response times, and high precision, are instrumental in ensuring patient safety and treatment efficacy. From monitoring body temperature to controlling critical processes in medical equipment, thin film Pt100 sensors are setting new standards in healthcare technology, demonstrating that when it comes to medical care, every fraction of a degree matters.

The Science Behind Thin Film Pt100 Sensors

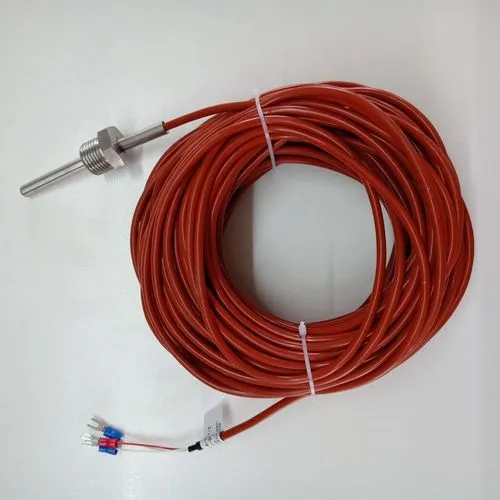

Thin film Pt100 sensors represent a significant advancement in temperature measurement technology. These sensors are built on the principle of resistance temperature detection (RTD), utilizing the predictable change in electrical resistance of platinum in response to temperature variations. The "100" in Pt100 denotes that the sensor has a resistance of 100 ohms at 0°C, providing a reliable reference point for temperature calculations.

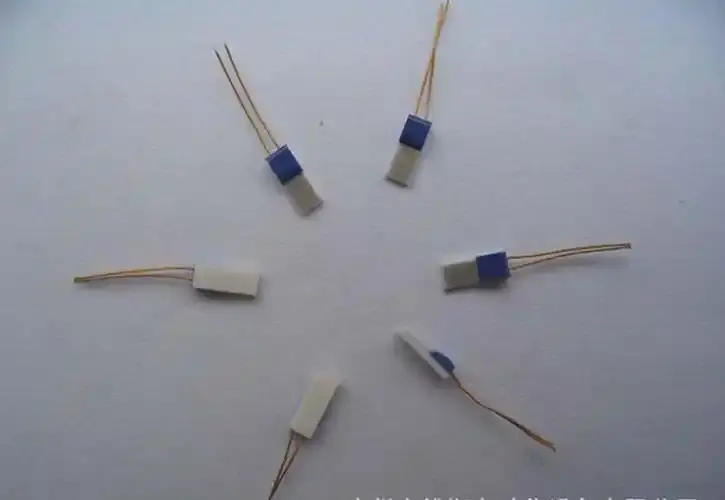

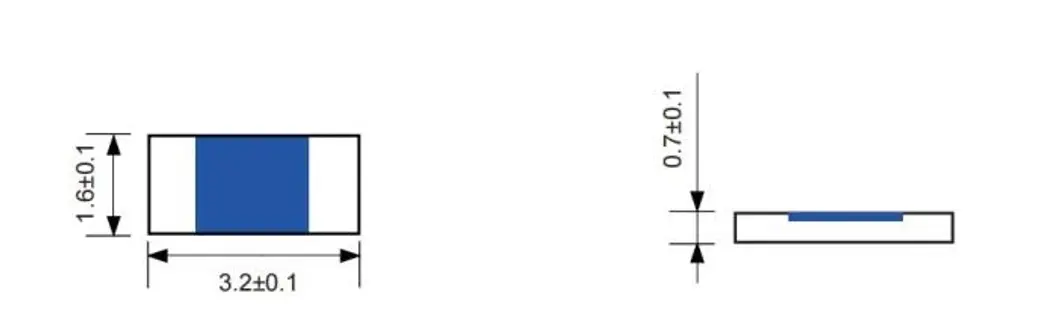

What sets thin film Pt100 sensors apart is their construction. A thin layer of platinum is deposited onto a ceramic substrate, typically measuring between 1.2mm to 2.3mm in length and 1.0mm in thickness. This miniature size allows for integration into compact medical devices without compromising performance. The platinum layer, despite its thinness, exhibits remarkable stability and uniformity, crucial for accurate temperature readings.

Temperature Coefficient and Accuracy

A key parameter of thin film Pt100 sensors is the temperature coefficient of resistance (TCR), which for these sensors is typically 3850 ppm/°C. This high TCR ensures excellent sensitivity to temperature changes. Moreover, these sensors can achieve an accuracy of ±0.01 Ω, translating to temperature measurements with precision in the range of hundredths of a degree Celsius.

Response Time and Self-Heating

In medical applications, rapid response to temperature changes can be critical. Thin film Pt100 sensors excel in this aspect, with response times as low as 0.05 seconds in flowing conditions. This quick response allows for real-time temperature monitoring in dynamic medical environments. However, it's important to consider the self-heating effect, which is typically around 0.4°C/mW. To mitigate this, these sensors are designed to operate with low currents, usually between 0.3 to 1 mA.

Applications in Medical Devices

The versatility and precision of thin film Pt100 sensors make them indispensable in a wide array of medical devices. Their applications span from simple thermometers to complex diagnostic and therapeutic equipment, each leveraging the sensor's unique capabilities to enhance patient care and medical outcomes.

Body Temperature Monitoring

One of the most fundamental applications of thin film Pt100 sensors in healthcare is body temperature monitoring. Traditional mercury thermometers have largely been replaced by electronic thermometers utilizing these sensors. The quick response time and high accuracy of thin film Pt100 sensors allow for faster and more reliable temperature readings, crucial in both routine check-ups and critical care scenarios.

Incubators and Blood Warmers

In neonatal care, maintaining a precise and stable temperature is vital. Incubators equipped with thin film Pt100 sensors can provide a controlled environment for premature infants with unprecedented accuracy. Similarly, blood warmers used during transfusions rely on these sensors to ensure blood products are brought to the correct temperature before administration, preventing complications associated with cold blood infusion.

Diagnostic Imaging Equipment

Advanced medical imaging technologies such as MRI and CT scanners incorporate thin film Pt100 sensors for temperature control. These sensors help maintain optimal operating temperatures for sensitive electronic components and ensure patient comfort during scans. The sensors' ability to withstand electromagnetic interference makes them particularly suitable for use in MRI environments.

Advantages and Considerations in Medical Applications

The adoption of thin film Pt100 sensors in medical devices brings a host of advantages, but also requires careful consideration of certain factors to ensure optimal performance and reliability in healthcare settings.

Long-Term Stability and Reliability

One of the standout features of thin film Pt100 sensors is their exceptional long-term stability. With a resistance drift of ≤±0.04% after 1000 hours at 500°C, these sensors maintain their accuracy over extended periods, ensuring consistent performance throughout the lifespan of medical devices. This stability is crucial in healthcare, where equipment reliability directly impacts patient safety and treatment efficacy.

Durability and Environmental Resistance

Medical devices often operate in challenging environments and may be subject to vibration, shock, and varying temperatures. Thin film Pt100 sensors are designed to withstand these conditions, with vibration resistance of ≥40g acceleration in the 10 to 2000 Hz frequency range and shock resistance of ≥100g acceleration. This durability ensures accurate temperature readings even in mobile medical units or during patient transport.

Customization and Integration

The flexibility in design and manufacturing of thin film Pt100 sensors allows for customization to meet specific medical device requirements. Available in multiple sizes ranging from 1.2mm to 4.0mm, these sensors can be integrated into various medical devices without compromising functionality. The option to choose different lead materials, such as platinum-nickel, silver-palladium, or pure platinum, further enhances their adaptability to different medical applications.

Sterilization Compatibility

In medical settings, the ability to sterilize equipment is paramount. Thin film Pt100 sensors can withstand common sterilization methods, including autoclave processes. Their high temperature tolerance and robust construction ensure they maintain accuracy even after repeated sterilization cycles, making them suitable for use in reusable medical devices and surgical instruments.

Regulatory Compliance

Adherence to stringent regulatory standards is non-negotiable in the medical device industry. Thin film Pt100 sensors manufactured to ISO9001 quality management standards and complying with IEC60751 specifications meet these rigorous requirements. Certifications such as RoHS and CE further attest to their suitability for use in medical applications, ensuring they meet global safety and performance standards.

Conclusion

In conclusion, the integration of thin film Pt100 sensors in medical devices represents a significant advancement in healthcare technology. Their precision, reliability, and versatility make them an invaluable component in a wide range of medical applications, from basic temperature monitoring to complex diagnostic equipment. As medical technology continues to evolve, the role of these sensors in ensuring accurate, safe, and effective patient care is likely to grow even further. For those interested in exploring the potential of thin film Pt100 sensors in medical device development or seeking customized solutions, please contact us at sales11@xatzd.com for more information.
