How to Properly Connect a Pt100 Temperature Sensing Element?

Properly connecting a Pt100 temperature sensing element is crucial for accurate temperature measurements. To achieve this, start by identifying the Pt100's lead configuration - typically 2, 3, or 4-wire. For optimal accuracy, use a 4-wire connection, which compensates for lead resistance. Ensure clean, secure connections between the Pt100 and your measurement device. Use shielded cables to minimize electromagnetic interference. Calibrate your system regularly and consider the self-heating effect when selecting operating current. By following these steps, you'll maximize the performance of your Pt100 temperature sensing element and obtain reliable temperature readings across a wide range of applications.

Understanding Pt100 Temperature Sensing Elements

Pt100 temperature sensing elements are precision instruments widely used in various industries for accurate temperature measurement. These thin-film platinum resistance thermometers operate on the principle that electrical resistance changes with temperature. The "100" in Pt100 signifies that the element has a resistance of 100 ohms at 0°C.

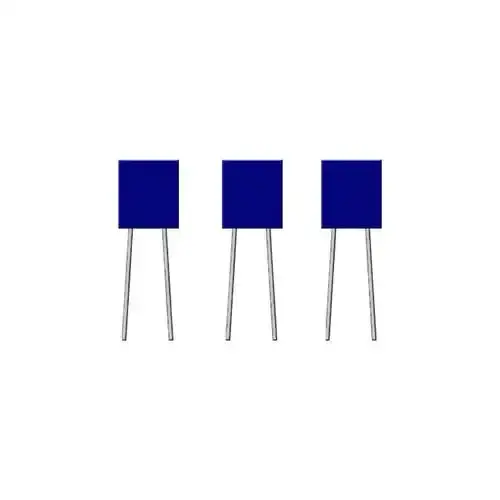

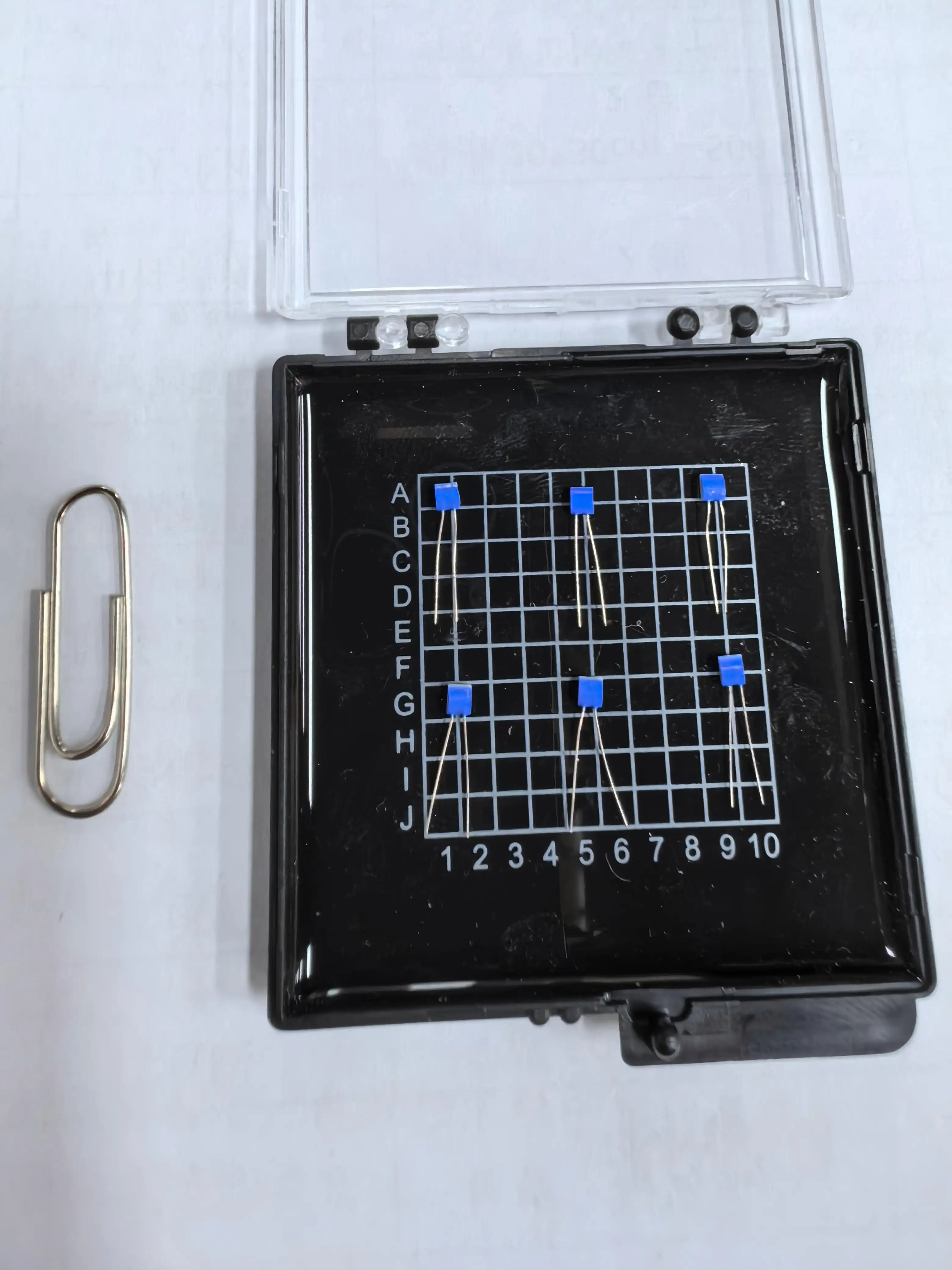

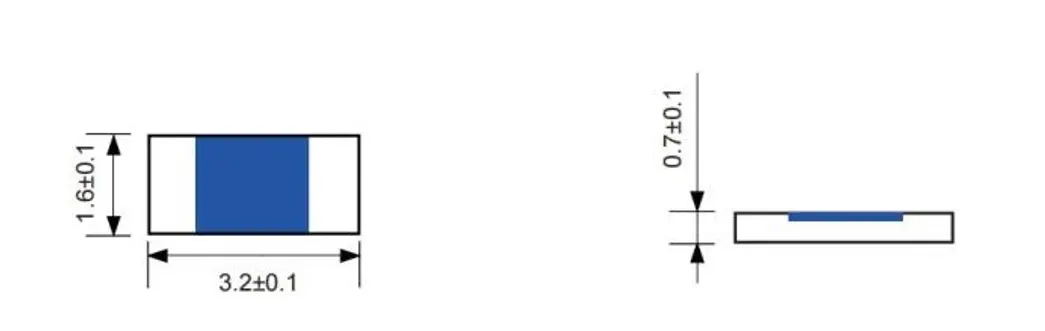

Modern Pt100 elements, like those manufactured by Xi'an Tongzida Technology Co., Ltd., are remarkably compact. They can be as small as 1.2mm x 2.0mm x 1.0mm, making them suitable for applications where space is at a premium. Despite their diminutive size, these sensors offer impressive performance characteristics.

Key Features of High-Quality Pt100 Elements

High-quality Pt100 temperature sensing elements boast several key features that contribute to their reliability and accuracy:

- Temperature Coefficient (TCR): 3850 ppm/°C, conforming to the IEC60751 standard

- Wide Operating Range: Typically from -200°C to +850°C

- High Accuracy: ±0.01 Ω

- Excellent Long-Term Stability: ≤±0.04% resistance drift after 1000 hours at 500°C

- Fast Response Time: As quick as 0.05 seconds in flowing conditions

- Robust Construction: Vibration resistance of 40g and shock resistance of 100g

These features make Pt100 elements ideal for demanding applications in industrial, medical, automotive, and aerospace sectors.

Proper Connection Techniques for Pt100 Elements

Connecting a Pt100 temperature sensing element correctly is paramount to achieving accurate temperature measurements. The connection method can significantly impact the sensor's performance and the overall accuracy of your temperature measurement system.

2-Wire, 3-Wire, and 4-Wire Connections

Pt100 elements can be connected using 2-wire, 3-wire, or 4-wire configurations. Each method has its advantages and limitations:

- 2-Wire Connection: The simplest method, but least accurate due to lead resistance effects

- 3-Wire Connection: Offers improved accuracy by compensating for lead resistance

- 4-Wire Connection: Provides the highest accuracy by fully eliminating lead resistance effects

For applications requiring the utmost precision, a 4-wire connection is recommended. This method uses separate pairs of wires for current supply and voltage measurement, effectively nullifying the impact of lead resistance on the temperature reading.

Lead Material Considerations

The choice of lead material can affect the performance of your Pt100 temperature sensing element. High-quality Pt100 sensors often use platinum-nickel wire leads, which offer excellent electrical conductivity and corrosion resistance. Some manufacturers, like Xi'an Tongzida, offer alternative lead materials such as silver-palladium, pure platinum, or silver-nickel to suit specific application requirements.

When selecting lead material, consider factors such as:

- Temperature range of the application

- Chemical environment

- Mechanical stress on the leads

For instance, in high-temperature applications, pure platinum leads might be preferable due to their excellent stability at elevated temperatures.

Minimizing Interference and Noise

To ensure accurate readings from your Pt100 temperature sensing element, it's crucial to minimize electromagnetic interference and electrical noise. Consider these strategies:

- Use shielded cables to protect the signal from external electromagnetic fields

- Implement proper grounding techniques to reduce common-mode noise

- Keep Pt100 wiring separate from high-current or high-frequency cables

- Use twisted pair cables to reduce induced noise

By implementing these measures, you can significantly improve the signal-to-noise ratio and enhance the overall accuracy of your temperature measurements.

Optimizing Pt100 Performance in Various Applications

To maximize the performance of your Pt100 temperature sensing element, it's essential to consider various factors beyond just the connection method. These considerations can help you achieve optimal results in diverse applications.

Self-Heating Effects and Operating Current

Pt100 elements, like all resistance thermometers, are subject to self-heating effects. When current passes through the sensor, it generates heat, which can affect the accuracy of the temperature measurement. To mitigate this:

- Use the lowest practical operating current, typically between 0.3 and 1 mA

- Consider the self-heating coefficient of your specific sensor (e.g., 0.4°C/mW for some high-quality sensors)

- In applications with poor heat dissipation, further reduce the operating current

By carefully managing the operating current, you can minimize self-heating and improve measurement accuracy.

Response Time Considerations

The response time of a Pt100 temperature sensing element can vary significantly depending on the application environment. For instance:

- In flowing conditions (V=0.4 m/s): t0.5 = 0.05 s, t10 = 0.15 s

- In airflow (V=2 m/s): t0.5 = 3 s, t10 = 10 s

Understanding these response characteristics is crucial for applications requiring rapid temperature measurements or control. In processes with quick temperature changes, faster-responding sensors may be necessary to capture accurate data.

Environmental Factors and Protective Measures

Pt100 temperature sensing elements, despite their robustness, can be affected by harsh environmental conditions. To ensure long-term reliability:

- Consider the vibration and shock resistance of your sensor (e.g., ≥40g for vibration, ≥100g for shock)

- Use appropriate packaging and enclosures to protect the sensor from mechanical stress and chemical exposure

- Implement temperature compensation techniques for the connecting leads in extreme temperature applications

- Regularly check the insulation resistance, especially in high-temperature applications (e.g., >2 MΩ at 500°C)

By accounting for these environmental factors and implementing appropriate protective measures, you can extend the lifespan of your Pt100 sensor and maintain its accuracy over time.

Conclusion

Properly connecting and utilizing a Pt100 temperature sensing element is crucial for achieving accurate and reliable temperature measurements across a wide range of applications. By understanding the key features of high-quality Pt100 elements, implementing correct connection techniques, and optimizing performance for specific applications, you can harness the full potential of these precision instruments.

Remember to consider factors such as lead configuration, material selection, interference minimization, self-heating effects, response time, and environmental conditions when designing your temperature measurement system. With careful attention to these details, you can ensure that your Pt100 sensor provides the accuracy and reliability required for your specific application.

For more information about advanced Pt100 temperature sensing elements and their applications, please contact Xi'an Tongzida Technology Co., Ltd. at sales11@xatzd.com. Our team of experts is ready to assist you in selecting the right sensor for your needs and providing guidance on optimal implementation techniques.
