What are the applications of thin film resistors?

Thin film resistors have diverse applications across multiple industries due to their exceptional precision, stability, and reliability. These versatile components are utilized in electronic circuits for accurate current control and voltage division. In the automotive sector, thin film platinum resistor Pt300-DW plays a crucial role in engine management systems and safety features. Medical equipment relies on their precision for diagnostic and monitoring devices.

Aerospace and defense industries employ them in navigation systems and communication equipment. Additionally, thin film resistors are essential in test and measurement instruments, where high accuracy is paramount. Their ability to maintain stable resistance values under varying environmental conditions makes them indispensable in these critical applications.

Understanding Thin Film Platinum Resistors: The Pt300-DW Series

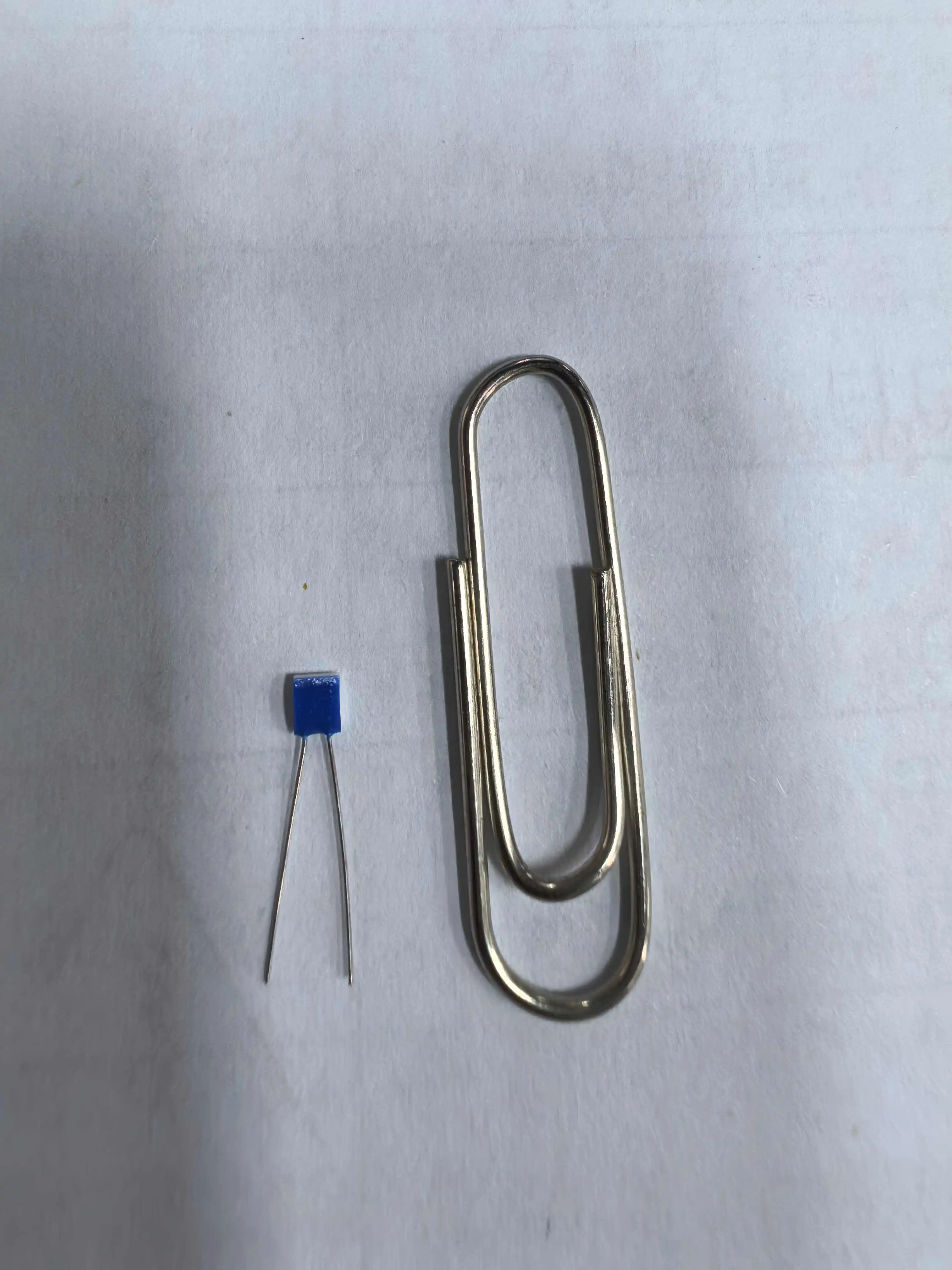

The thin film platinum resistor Pt300-DW series represents a pinnacle of temperature sensing technology. These resistors are meticulously crafted using advanced thin film deposition techniques, resulting in a highly stable and accurate temperature-sensitive element. The Pt300-DW series boasts a compact form factor, measuring just 2.0mm x 3.0mm x 1.0mm, making it ideal for applications where space is at a premium.

One of the standout features of the Pt300-DW series is its impressive temperature coefficient of resistance (TCR) of 3850 ppm/°C. This characteristic ensures a linear and predictable resistance change with temperature variations, enabling precise temperature measurements across a wide range. The series complies with the IEC60751 standard, guaranteeing compatibility and reliability in various industrial applications.

Key Specifications and Performance Metrics

The Pt300-DW series excels in several critical areas:

- Operating Current: 0.1–0.8 mA, with consideration for self-heating effects

- Long-Term Stability: ≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 500°C

- Response Time: In water flow (V=0.4 m/s), t₀.₅ = 0.05 s, t₀.₉ = 0.15 s; In airflow (V=2 m/s), t₀.₅ = 3 s, t₀.₉ = 10 s

- Self-Heating Coefficient: 0.4°C/mW (at 0°C)

- Vibration Resistance: ≥40g acceleration (frequency range: 10–2000 Hz)

- Shock Resistance: ≥100g acceleration (8 ms half-sine wave)

These specifications underscore the thin film platinum resistor Pt300-DW's suitability for demanding environments where accuracy and durability are paramount.

Advantages of Thin Film Platinum Resistors in Temperature Sensing

Thin film platinum resistors, exemplified by the Pt300-DW series, offer numerous advantages over other temperature sensing technologies. Their inherent characteristics make them the preferred choice for applications requiring high precision and reliability.

Unparalleled Accuracy and Stability

The Pt300-DW series achieves an accuracy of ± 0.01 Ω, setting a new standard in temperature measurement precision. This level of accuracy is crucial in industries such as semiconductor manufacturing, where even minute temperature variations can significantly impact product quality. The long-term stability of these resistors, with a drift of ≤ 0.04% after 1000 hours at 500°C, ensures consistent performance over extended periods, reducing the need for frequent recalibration.

Wide Temperature Range and Fast Response

With an operational temperature range of -200°C to +850°C, the Pt300-DW series is versatile enough to handle extreme temperature conditions. This expansive range makes it suitable for applications ranging from cryogenic research to high-temperature industrial processes. The rapid response time, particularly in liquid environments (t₀.₅ = 0.05 s in water flow), enables real-time temperature monitoring and control in dynamic systems.

Resilience in Harsh Environments

The robust construction of the thin film platinum resistor Pt300-DW series, featuring platinum-nickel wire leads with a tensile strength of ≥9 N, ensures durability in challenging industrial settings. The high vibration resistance (≥40g acceleration) and shock resistance (≥100g acceleration) make these resistors suitable for use in automotive, aerospace, and heavy machinery applications where mechanical stress is a constant factor.

Applications and Industries Benefiting from Thin Film Platinum Resistors

The exceptional properties of thin film platinum resistors, particularly the Pt300-DW series, make them indispensable in a wide array of industries and applications.

Industrial Process Control and Automation

In industrial settings, the Pt300-DW series plays a crucial role in maintaining precise temperature control in processes such as chemical reactions, food processing, and pharmaceutical manufacturing. The resistors' ability to provide accurate readings across a wide temperature range ensures optimal product quality and process efficiency. Their fast response time allows for rapid adjustments in dynamic industrial environments, contributing to improved overall productivity.

Medical and Laboratory Equipment

The medical field relies heavily on the accuracy and reliability of thin film platinum resistors. The thin film platinum resistor Pt300-DW series finds applications in diagnostic equipment, sterilization processes, and incubators where temperature precision is critical. In laboratory settings, these resistors are essential components in analytical instruments, ensuring the accuracy of scientific experiments and research outcomes.

Automotive and Aerospace Engineering

The automotive industry utilizes thin film platinum resistors in engine management systems, exhaust gas temperature sensors, and battery management systems for electric vehicles. The Pt300-DW's resilience to vibration and shock makes it ideal for these applications. In aerospace, these resistors are crucial for monitoring and controlling temperatures in aircraft engines, hydraulic systems, and environmental control systems, where reliability under extreme conditions is non-negotiable.

Energy and Power Generation

In power plants and renewable energy systems, thin film platinum resistors like the Pt300-DW series are used to monitor and control temperatures in turbines, generators, and solar panels. Their wide temperature range and long-term stability ensure efficient energy production and distribution, contributing to the overall reliability of power systems.

Environmental Monitoring and Meteorology

The Pt300-DW series finds applications in weather stations, ocean buoys, and environmental monitoring systems. Their ability to provide accurate temperature measurements in diverse environments, from atmospheric conditions to water bodies, makes them invaluable in climate research and weather forecasting.

Conclusion

In conclusion, the applications of thin film resistors, particularly the thin film platinum resistor Pt300-DW series, span across numerous industries, showcasing their versatility and importance in modern technology. These resistors continue to push the boundaries of temperature sensing capabilities, enabling advancements in various fields. For more information on how the Pt300-DW series can benefit your specific application, please contact us at sales11@xatzd.com.
