High Precision Temperature Sensor

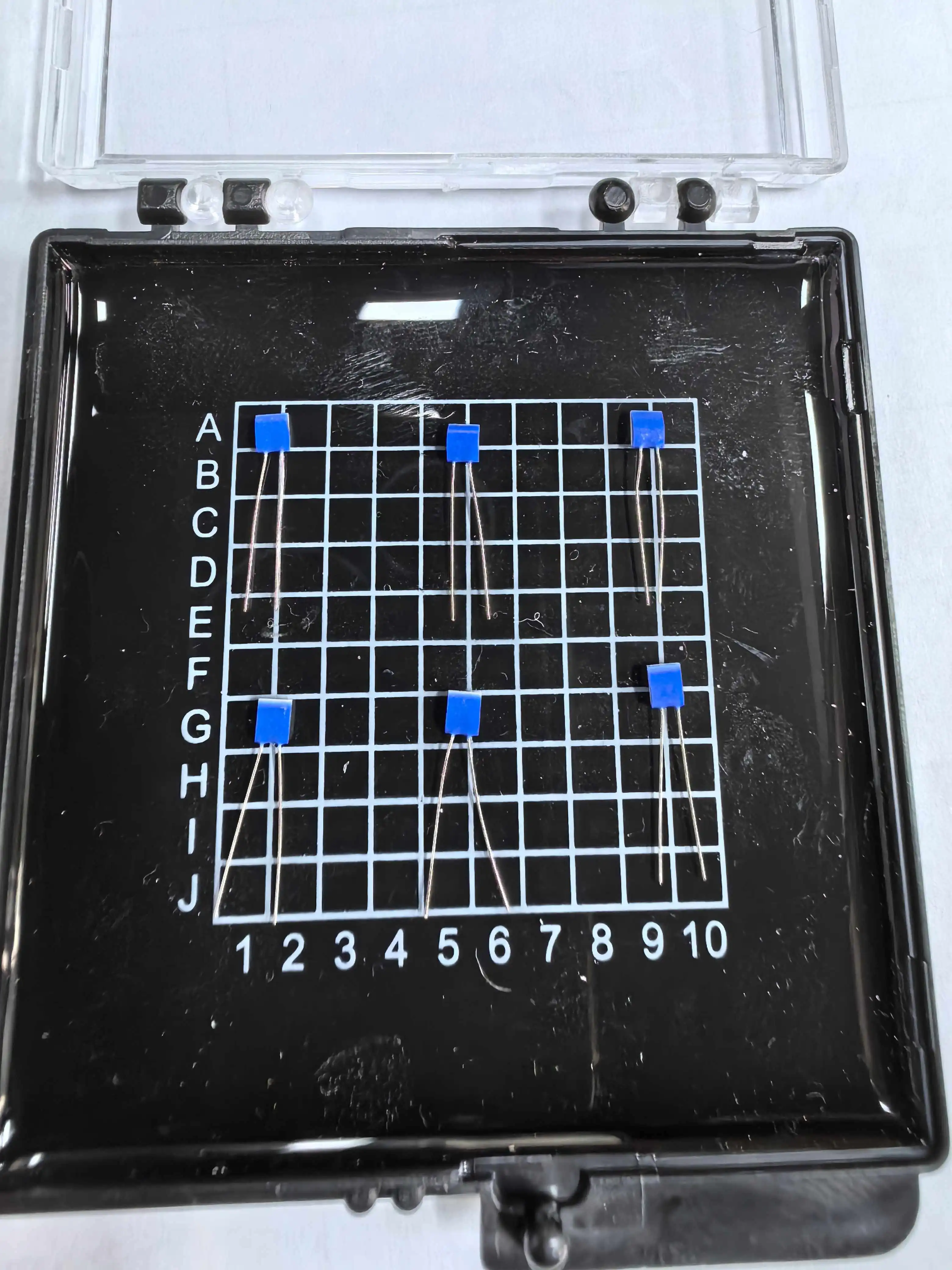

Name: High Precision Temperature Sensor
SKU: N/A

Element Type:Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,2.0mm x 4.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.1–0.3 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 50°C
Response Time:Water Flow (V=0.4 m/s):t₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Xi'an Tongzida Technology Co., Ltd.: Your Trusted High Precision Temperature Sensor Manufacturer

As a leading manufacturer and supplier of High Precision Temperature Sensors, Xi'an Tongzida Technology Co., Ltd. offers cutting-edge arrangements for exact temperature estimation. Our progressed lean film platinum resistor innovation, compliance with IEC60751 measures, and broad customization choices set us separated in the industry. With a temperature coefficient of 3850ppm/℃ and precision up to ±0.01 Ω, our sensors provide unparalleled execution for requesting applications.

High Precision Temperature Sensors

Introduction

Welcome to the world of high-precision temperature identifying! Our things are sketched out to meet the most requesting benchmarks in mechanical, restorative, car, and flying sections. These platinum resistance thermistors offer momentous precision, robustness, and faithful quality over a wide temperature run.

Why Choose Us?

Advanced Technology: Our thin film platinum resistor technology ensures superior performance.
Customization: Multiple sizes and lead materials available to suit your specific needs.
Wide Temperature Range: Accurate measurements from -200℃ to +850℃.
Rapid Response: As fast as 0.05 seconds in optimal conditions.
Durability: Vibration resistance of 40g and impact resistance of 100g.

Specifications

Parameter	Value
Element Type	Platinum Resistance Thermistor
Element Dimensions	2.0mm x 2.3mm x 1.0mm, 2.0mm x 4.0mm x 1.0mm
Lead Specifications	Length: 10 mm, Diameter: 0.2 mm
Lead Material	Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Temperature Coefficient (TCR)	3850 ppm/°C
Insulation Resistance	100 MΩ at 20°C, >2 MΩ at 500°C
Long-Term Stability	≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 50°C

Reference Selection

Application	Recommended Model
Industrial Process Control	TZD-PT1000-H
Medical Equipment	TZD-PT100-M
Automotive Sensors	TZD-PT500-A
Aerospace Systems	TZD-PT1000-AS

Features

High accuracy: ±0.01 Ω (1/40B level)
Excellent long-term stability: drift ≤ 0.04%
Fast response time: up to 0.05 seconds
Robust design: withstands vibration and shock
Versatile lead options for various integration needs

Applications

Our High Precision Temperature Sensors excel in diverse applications:

Industrial manufacturing and automation
Healthcare and medical devices
Aerospace and defense systems
Semiconductor and electronics production
Energy and utilities monitoring

These sensors are perfect for situations requiring exact temperature control, from clean rooms to unforgiving mechanical settings.

Certificates

Our commitment to quality is backed by ISO9001, ROHS, and CE certifications, ensuring our products meet global standards for excellence and environmental compliance.

Factory pictures

Packing and Delivery

We offer vacuum plastic packaging to protect the integrity of your sensors during transit. Custom packaging solutions are available upon request to meet your specific handling and storage requirements.

FAQ

Q1: What is the temperature range of your products?
A1: Our sensors operate accurately from -200℃ to +850℃, making them suitable for a wide range of applications.

Q2: Can you provide customized sensor dimensions?
A2: Yes, we offer customization for sizes ranging from 1.2mm to 4.0mm to meet your specific requirements.

Q3: What is the response time of your sensors?
A3: Our products can achieve a response time as low as 0.05 seconds in optimal conditions.

Q4: Are your sensors suitable for aerospace applications?
A4: Absolutely. Our sensors' robust design, with vibration resistance of 40g and impact resistance of 100g, makes them ideal for aerospace use.

Q5: Do you offer different lead materials?
A5: Yes, we provide options including platinum-nickel, silver-palladium, pure platinum, and pure silver leads to suit various integration needs.

Contact Us

Ready to elevate your temperature sensing capabilities? Our bunch of pros is here to offer help you find the come full circle High Precision Temperature Sensor for your application. Contact us at sales11@xatzd.com to conversation around your prerequisites or inquire a cite. Let's work together to make strides your temperature estimation precision and immovable quality!
