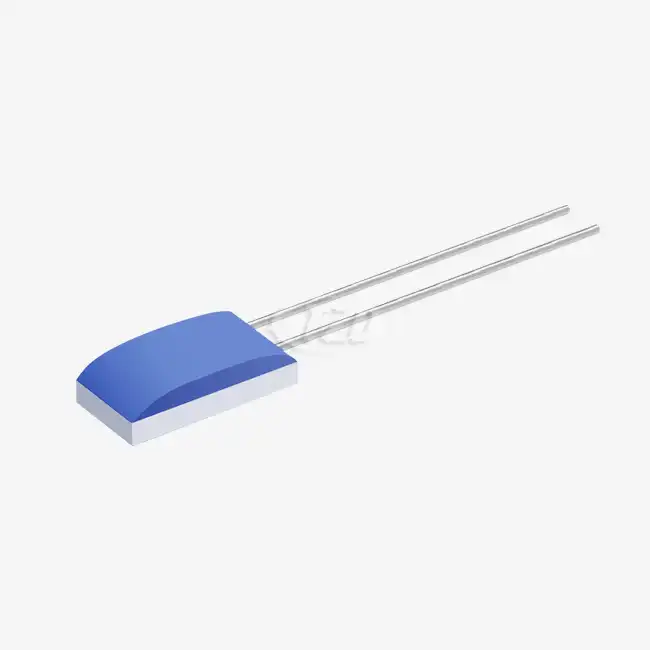

Pt1000 Temperature Sensor

Name: Pt1000 Temperature Sensor
SKU: N/A

Element Type:Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,2.0mm x 4.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.1–0.3 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 500°C
Response Time:Water Flow (V=0.4 m/s):t₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Pt1000 Temperature Sensor Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. is a trusted Pt1000 Temperature Sensor manufacturer and supplier, specializing in high-accuracy platinum resistance thermometers for industrial, medical, and aerospace applications. Our sensors combine cutting-edge thin-film technology with IEC 60751 compliance, ensuring reliability in extreme conditions. With certifications like ISO 9001 and CE, we deliver unmatched durability, ±0.04% long-term stability, and rapid response times.

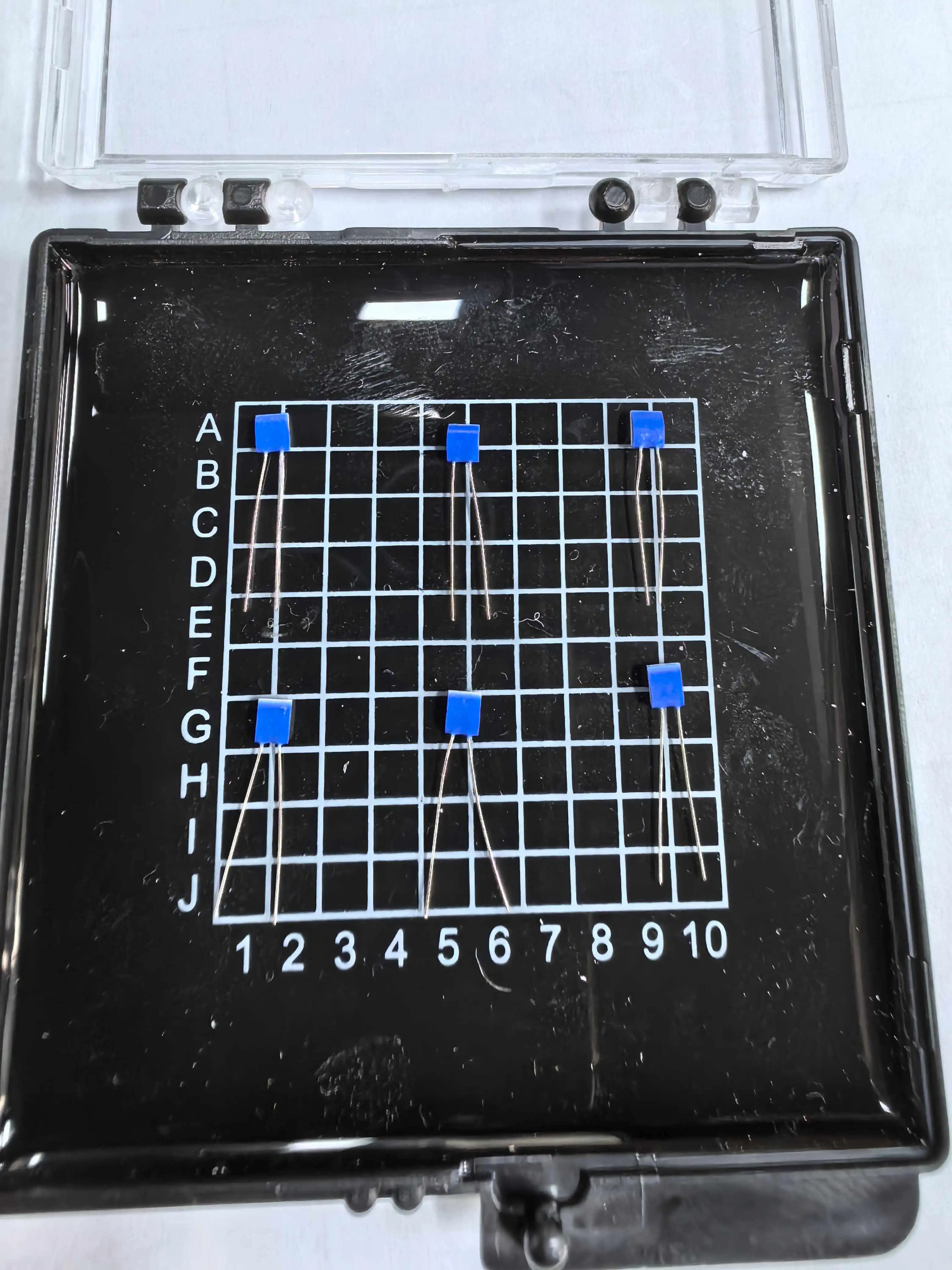

Pt1000 Temperature Sensor

Why Choose Our Pt1000 Temperature Sensor?

Superior TCR (3850 ppm/°C): Ensures linearity and precision across -200°C to +850°C.
Customizable Designs: Choose lead materials (platinum-nickel, silver-palladium) and sizes (1.2mm–4.0mm).
Rugged Performance: Withstands 40g vibration, 100g shock, and extreme temperatures.
Global Compliance: Meets IEC 60751, RoHS, and ISO 9001 standards.
Fast Support: Dedicated engineering assistance for integration and calibration.

Pt1000 Temperature Sensor Specifications

Parameter	Specification
Dimensions	2.0x2.3x1.0mm / 2.0x4.0x1.0mm
Lead Material	Platinum-Nickel (optional: Ag-Pd/Pt)
Lead Tensile Strength	≥9 N
Insulation Resistance	100 MΩ (20°C), >2 MΩ (500°C)
Response Time (Water)	t₀.₅=0.05s, t₀.₉=0.15s
Long-Term Stability	≤±0.04% drift after 1000h at 500°C

Reference Selection

Model	Dimensions (mm)	Lead Material	Applications
TD-PT1000	2.0x2.3x1.0	Platinum-Nickel	Aerospace, Medical
TD-PT2000	2.0x4.0x1.0	Silver-Palladium	Automotive, Energy

Key Features of Our Platinum Resistance Thermometers

Technical Excellence: Our product delivers outstanding precision, achieving ±0.01Ω accuracy in the 1/30B class, while minimizing self-heating to just 0.4°C/mW for highly reliable measurements.
Built to Last: Engineered for durability, it can endure vibrations from 10–2000 Hz and 100g shocks, ensuring consistent and reliable performance in even the most challenging environments.
Tailored Solutions: Enjoy the flexibility to customize lead lengths, choose suitable connectors, or modify packaging, with our standard vacuum-sealed option providing excellent protection.
Global Standards: We ensure full traceability through IEC 60751 compliance and ISO 17025-calibrated testing, meeting stringent international quality and measurement standards.

Applications

Ideal for precision temperature measurement in:

Industrial Automation: Process control, HVAC systems.
Medical Devices: Lab equipment, sterilization monitoring.
Energy Systems: Oil/gas pipelines, renewable energy plants.
Aerospace: Engine monitoring, environmental testing.

Certificates

Our Pt1000 Temperature Sensors are the epitome of quality and compliance, meticulously engineered to meet the stringent requirements of ISO 9001, CE, and RoHS. The ISO 9001 certification attests to our commitment to maintaining a world-class quality management system, ensuring consistent performance and reliability in every sensor we produce. The CE mark confirms that our products adhere to strict European health, safety, and environmental protection standards, making them suitable for a wide range of applications across the continent. Additionally, our RoHS compliance underscores our dedication to environmental responsibility, as it ensures that our sensors are free from hazardous substances, safeguarding both users and the planet. This trifecta of certifications makes our sensors a trusted choice for customers worldwide.

certificate

Packing and Delivery

Our vacuum-sealed plastic packaging is a highly effective solution meticulously engineered to provide unparalleled moisture resistance. By creating an airtight barrier, it safeguards your products from any water - related damage, ensuring that they remain in pristine condition throughout the shipping process, even in the most humid environments. For bulk orders, we have a well - organized and efficient logistics system in place. Despite the larger quantities, we are committed to dispatching these orders within 2–3 weeks. This timeframe allows us to carefully prepare, package, and arrange for the secure transportation of your items, guaranteeing reliable and timely delivery.

FAQ

Q: Can I order samples before bulk purchases?
A: Yes! We provide samples for technical validation.

Q: What's the lead time for 10,000 units?
A: Typically 15–20 days with expedited options.

Q: Are your sensors compatible with PLC systems?
A: Absolutely—we support customization for seamless integration.

Q: How do you ensure stability in humid environments?
A: Insulation resistance stays >2 MΩ even at 500°C.

Q: Do you offer calibration certificates?
A: Yes, NIST-traceable certificates are available.

Contact Us

Elevate your systems with Xi'an Tongzida's Pt1000 Temperature Sensor. Email sales11@xatzd.com for quotes or technical queries.
