PT10000

Name: PT10000
SKU: N/A

Component type: Platinum resistance temperature sensor
Component size: 2.0 mm x 4.6 mm x 1.1 mm
Wire specifications: Length: 10mm, Diameter: 0.2mm
Wire material: platinum nickel wire (optional: silver palladium platinum silver purity)
Tensile strength of lead: ≥ 9 N
Insulation resistance: 100 M Ω at 20 ° C,>2 M Ω at 500 ° C
Temperature coefficient (TCR): 3850 ppm/° C
Working current: 0.01-0.03 mA (considering self heating effect)
Long term stability: After 1000 hours at 500 ° C, the resistance deviation is ≤± 0.04% R ₀ (reference 0 ° C)
Response time: Water flow (V=0.4 m/s): t ₀ ₅ = 0.1 s，t₀. ₉=0.3 s; Air flow (V=2 m/s): t ₀ ₅ = 5 s，t₀. ₉ = 15 s
Self heating coefficient: 0 ° C~0.5 ° C/mW
Vibration resistance: Acceleration ≥ 40 g (frequency range: 10-2000 Hz)
Impact resistance: Acceleration ≥ 100 g (8 milliseconds half sine wave)

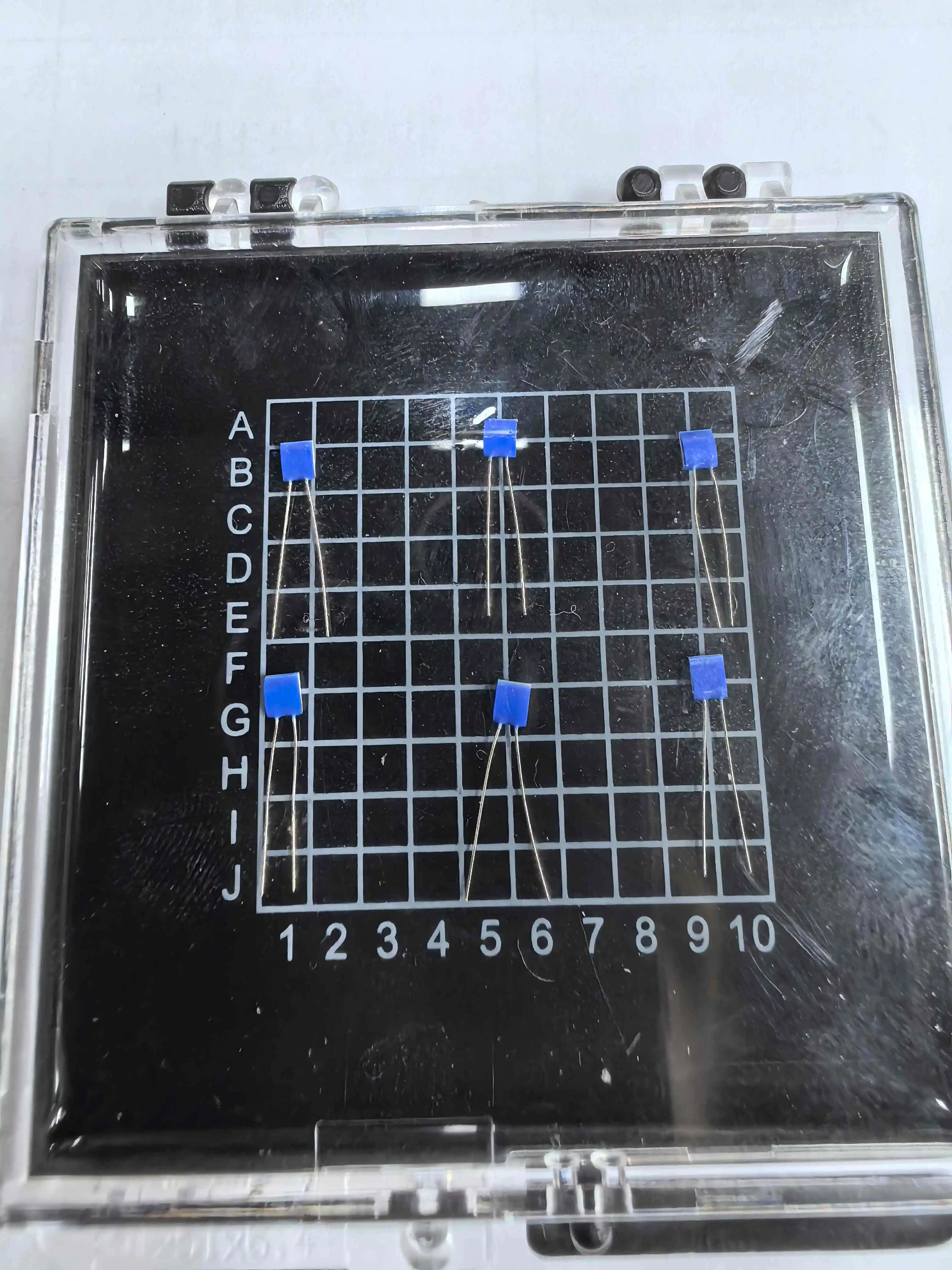

Packaging: Plastic vacuum packaging (other packaging forms can be provided upon request)

Send Inquiry

Download

Product Description

Introduction to PT10000 Platinum Resistance Temperature Sensor Chip Products

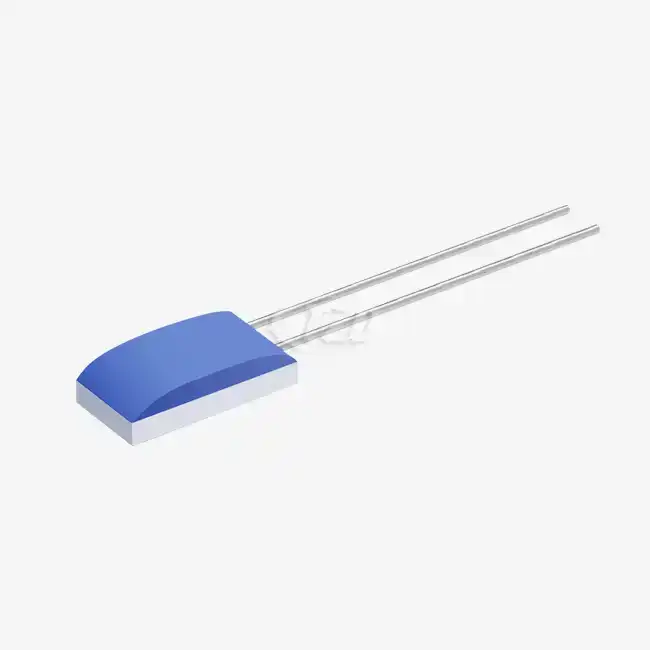

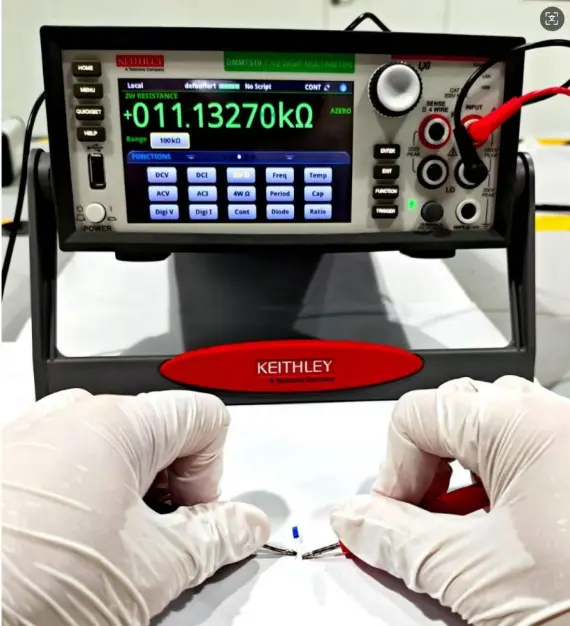

PT10000 is a high-precision temperature sensing chip based on platinum material, realized through thin-film technology. Its core resistance is 11132.7Ω at 29℃, and it possesses the following notable characteristics:

PT10000

High resistance and anti-interference capability

The high resistance design (11132.7Ω@29℃) significantly enhances temperature measurement sensitivity and accuracy, while effectively reducing the impact of wire loss. It supports long-distance transmission (without the need for additional three-wire or four-wire compensation), simplifying wiring complexity.
The signal output strength is high, with a greater resistance change under the same temperature variation. It boasts an excellent signal-to-noise ratio (SNR) and an anti-electromagnetic interference capability that is 5-10 times stronger than traditional low-resistance platinum resistors. It is suitable for use in strong electromagnetic interference environments such as industrial control and semiconductor manufacturing.

Low power consumption and long lifespan

The low operating current characteristic can extend the device's battery life by 30%-50%, reducing the frequency of battery replacements, especially suitable for power-sensitive scenarios such as IoT devices and portable instruments.

PT10000

Wide temperature range and high stability

The measurement range spans from -200℃ to 1000℃, supporting DIN standard accuracy levels (such as Class B, A, AA), meeting the stringent temperature control requirements of scenarios like laboratories, medical equipment, and new energy vehicles.
The physical stability of platinum material ensures minimal performance degradation over long-term use, making it suitable for repeated exposure to high temperatures and pressures.

PT10000

Diversified packaging and rapid response

Supports ultra-small size packaging (such as the M222B-2L1000 model), suitable for miniature devices or rapid temperature monitoring scenarios (such as motor coil and charging gun temperature measurement), with short thermal response time, enabling real-time capture of temperature changes

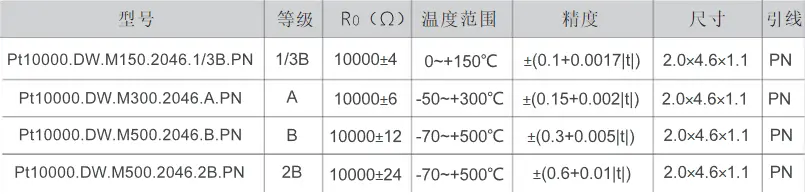

Pt10000 Temperature Sensor
