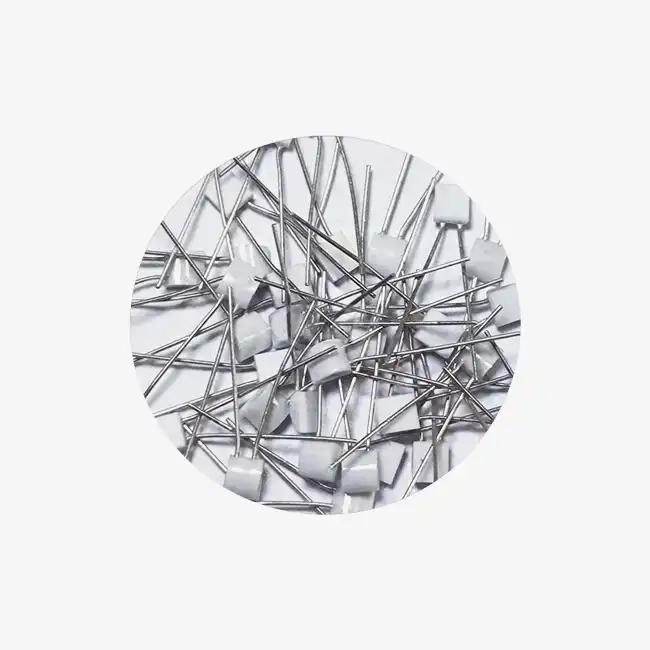

Thin Film Platinum Resistor Pt500-DW

Name: Thin Film Platinum Resistor Pt500-DW
SKU: N/A

Element Type:Thin Film Platinum Resistance Thermistor

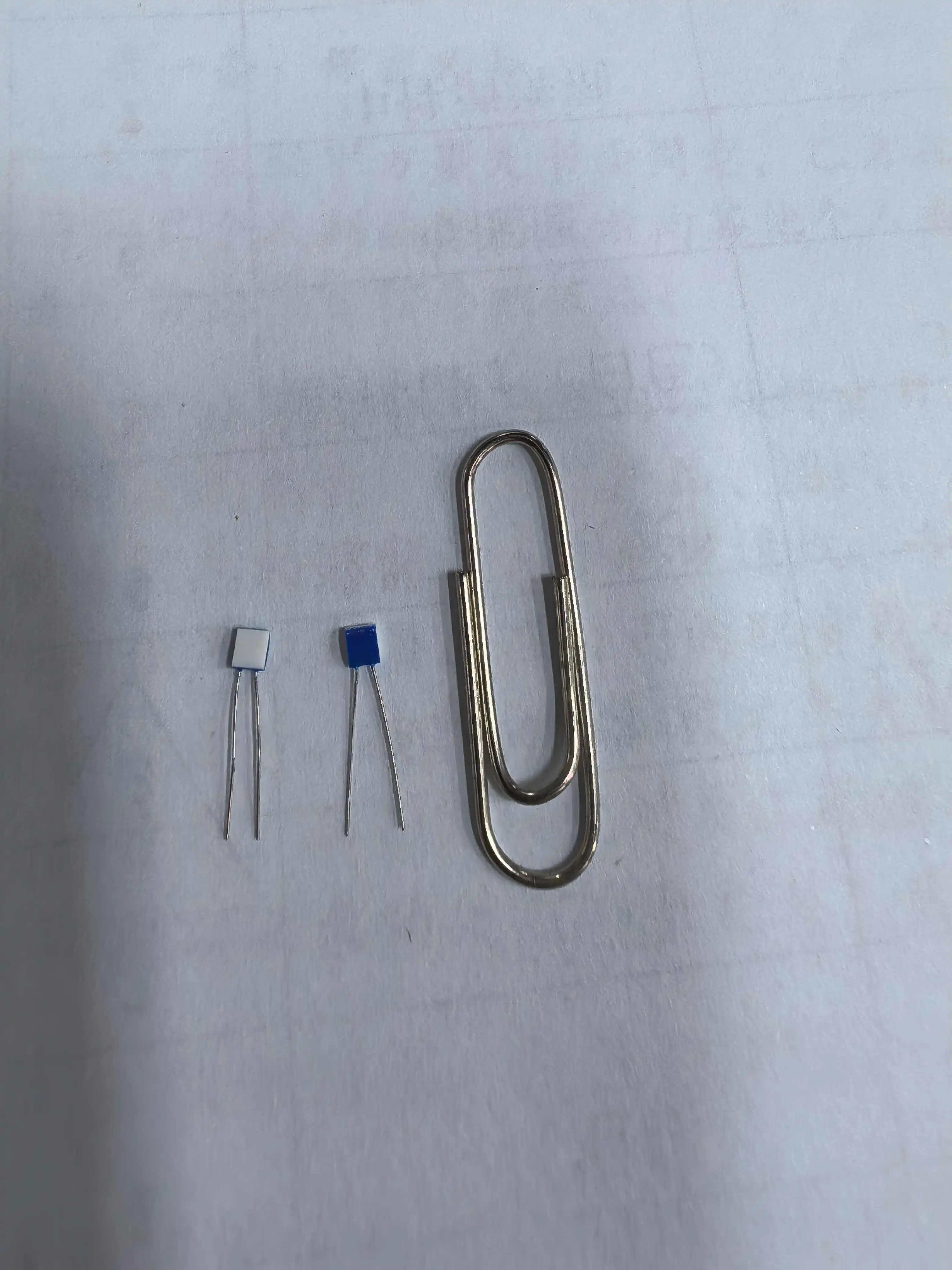

Element Dimensions:2.0mm x 2.3mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material:Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.1–0.7 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 500°C
Response Time:Water Flow (V=0.4 m/s)t₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)
Packaging:Vacuum plastic packaging (other packaging formats available upon request)

Send Inquiry

Download

Product Description

Thin Film Platinum Resistor Pt500-DW Manufacturer And Supplier

Xi'an Tongzida Technology Co., Ltd. is a leading Thin Film Platinum Resistor Pt500-DW manufacturer and supplier, specializing in high-precision sensors for industrial, medical, and aerospace applications. With ISO 9001, RoHS, and CE certifications, our Pt500-DW series delivers unmatched accuracy (±0.01Ω), extreme temperature resilience (-200°C to +850°C), and customizable designs to meet rigorous operational demands.

Thin Film Platinum Resistor Pt500-DW

Why Choose Our Thin Film Platinum Resistor Pt500-DW?

IEC 60751 Compliance: By adhering to IEC 60751 standards, our product ensures seamless global compatibility and unwavering reliability.
Wide Temperature Range: Engineered to function perfectly, it excels in both ultra-low -50°C and high - heat +200°C extreme environments.
Customizable Solutions: We offer the flexibility to customize lead materials, dimensions, and packaging, catering precisely to your unique requirements.
Bulk Order Expertise: With extensive experience in handling large - scale orders, we maintain consistent quality and offer rapid lead times.

Thin Film Platinum Resistor Pt500-DW Specifications

Parameter	Specification
Dimensions	2.0mm x 2.3mm x 1.0mm
Lead Material	Platinum-Nickel (Optional: Silver-Palladium)
Temperature Coefficient	3850 ppm/°C
Response Time (Water)	t₀.₅ = 0.05 s; t₀.₉ = 0.15 s
Shock Resistance	≥100g acceleration (8 ms half-sine wave)
Long-Term Stability	≤±0.04% drift after 1000 hours at 500°C

Reference Selection Guide

Application	Recommended Model	Key Benefit
Industrial Automation	Pt500-DW (Standard)	Vibration resistance
Medical Equipment	Pt500-DW (Pure Platinum)	Biocompatibility
Aerospace Systems	Pt500-DW (Vacuum Pack)	Ultra-low drift

Key Features of Our Pt500-DW

Ultra-Fast Response: Our product reaches 90% stabilization within a mere 0.15 seconds when exposed to water flow, ensuring rapid and accurate measurements.
Robust Durability: Built tough, it can endure 40g of vibration and 100g of shock, making it a reliable choice for demanding and harsh environments.
Self-Heating Mitigation: Boasting a 0.4°C/mW coefficient, it effectively reduces self-heating, minimizing interference and ensuring precise measurements.
Multi-Material Options: We provide a variety of lead materials including platinum-nickel, silver-palladium, and pure platinum to meet diverse application needs.

Applications

Industrial: Ideal for industrial use, our products optimize process control, enhance HVAC efficiency, and ensure smooth operation of energy systems.
Medical: In the medical field, our solutions play a crucial role in sterilization devices and support accurate diagnostic equipment operation.
Aerospace: Specifically designed for aerospace, our offerings enable precise engine monitoring and reliable environmental control in aircraft.
Automotive: For the automotive sector, our items are essential for exhaust gas sensors and effective battery thermal management systems.

Certifications & Compliance

Our Thin Film Platinum Resistor Pt500-DW meets ISO 9001, RoHS, and CE standards, with optional medical/automotive certifications.

certificate

Packaging & Delivery

Our products are shipped in high - quality vacuum - sealed plastic packaging, which effectively protects them from moisture, dust, and oxidation during transit. This packaging method ensures that your items arrive in pristine condition, ready for immediate use. Recognizing that different customers have unique needs, we offer custom packaging options tailored to specific requirements. Moreover, with our extensive global logistics support, we can efficiently deliver your orders to any location around the world, providing you with a seamless and reliable shipping experience.

FAQs

Can I order custom lead lengths?
Yes! We tailor leads from 5mm to 30mm based on your requirements.
What's the MOQ for bulk orders?
MOQ starts at 500 units, with discounts for 5,000+ units.
How do you ensure batch consistency?
Every batch undergoes TCR testing and stability validation.
Do you comply with aerospace standards?
Absolutely. We support AS9100 and NADCAP certifications upon request.
What's the lead time for urgent orders?
Standard lead time is 2–3 weeks; expedited options available.
