What is a Platinum Resistance Thermistor? A Detailed Look at Its Working and Advantages

What is a Platinum Resistance Thermistor? A Detailed Look at Its Working and Advantages

Discover how platinum resistance thermistors like PT100 and PT1000 deliver high accuracy, stability, and fast response for industrial and medical applications.

Introduction​

Platinum resistance thermistors, often referred to as PRTs or RTDs, are critical components in temperature sensing applications where accuracy and reliability are non-negotiable. These sensors leverage the predictable change in platinum’s electrical resistance with temperature fluctuations. With variants like the PT100 (100Ω at 0°C) and PT1000 (1000Ω at 0°C), they are widely used in sectors ranging from industrial automation to healthcare. This article explores the working principle, advantages, and key applications​ of platinum resistance thermistors, highlighting why they are the preferred choice for precision temperature measurement .

How Does a Platinum Resistance Thermistor Work?​

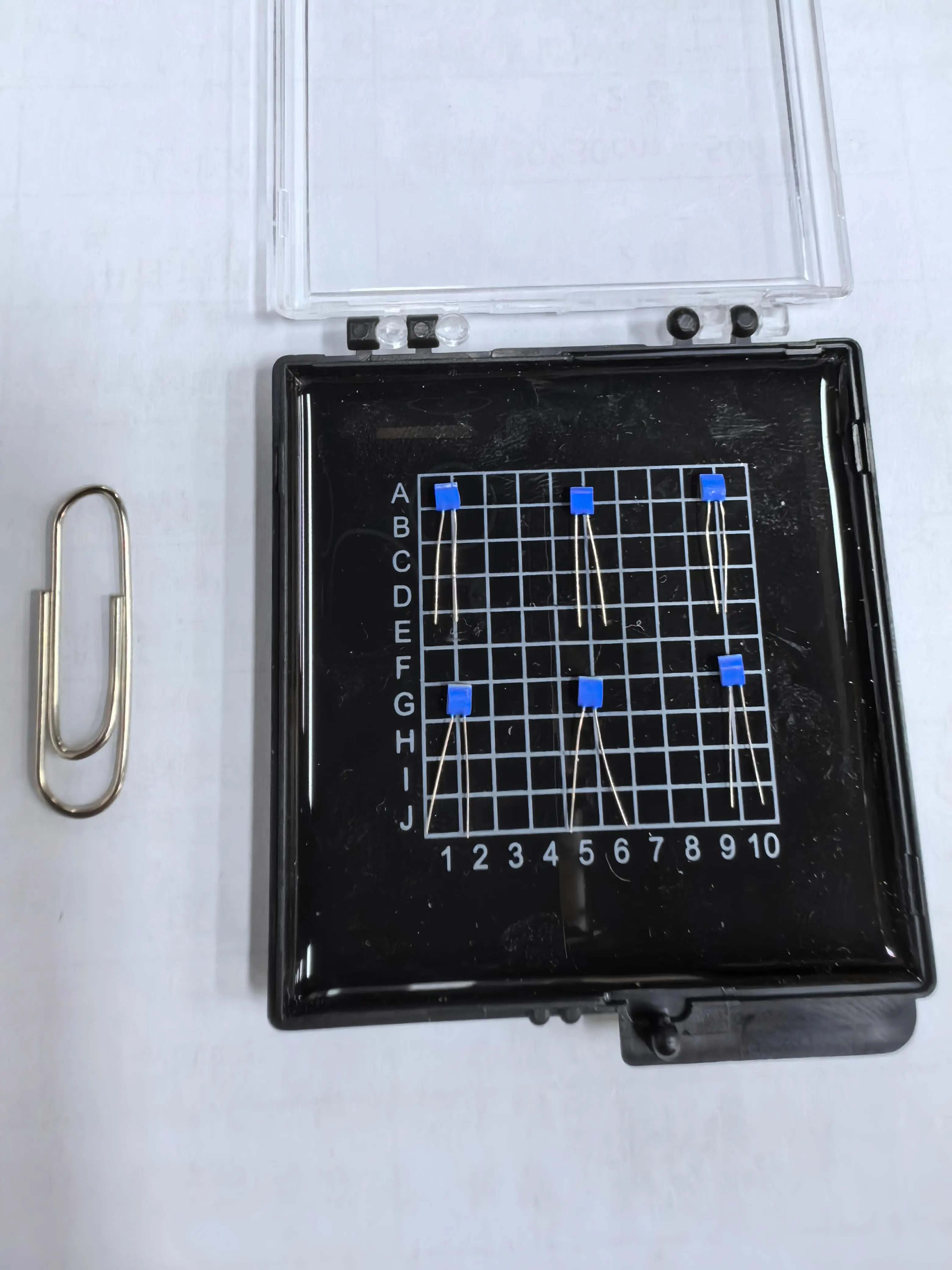

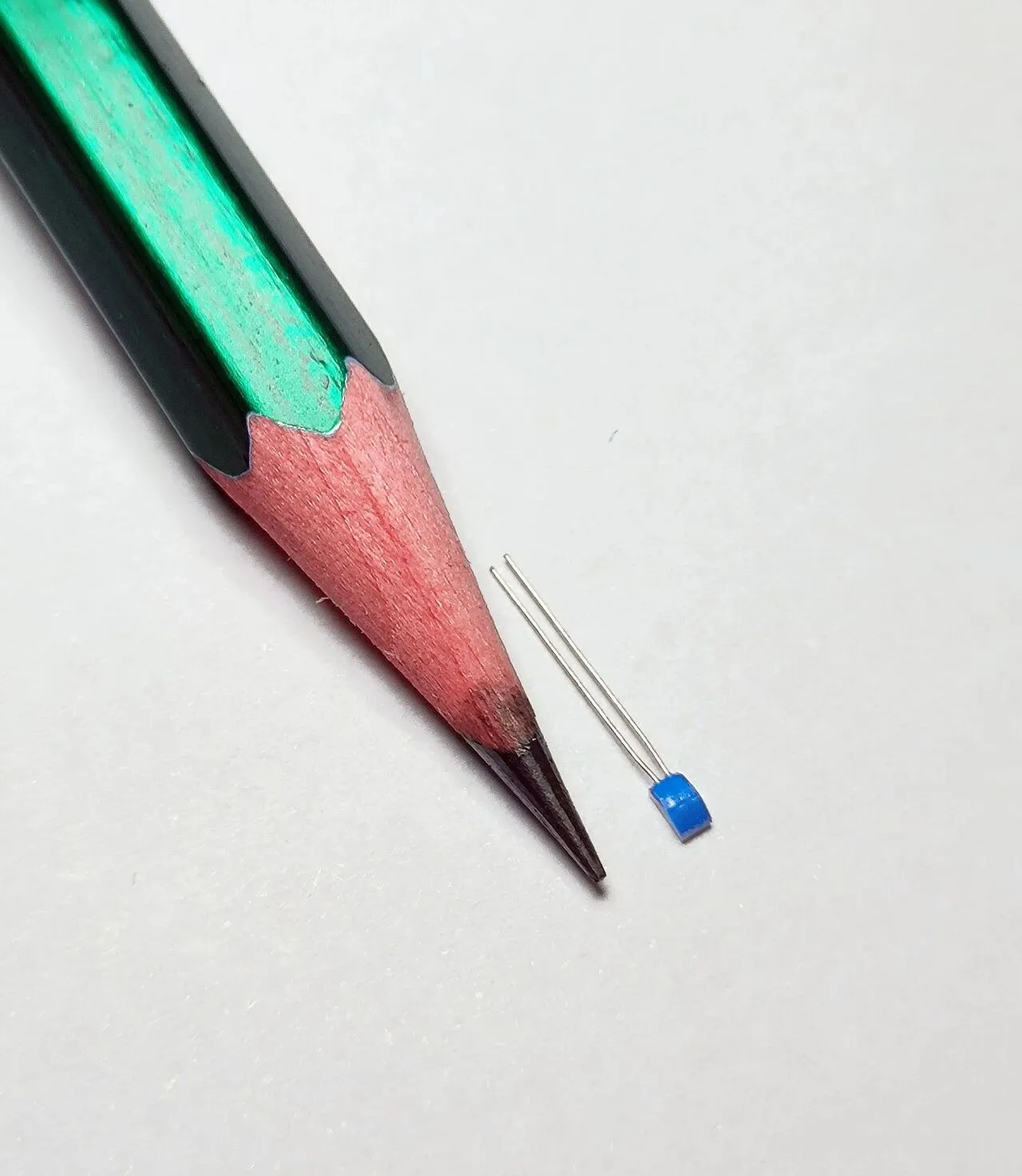

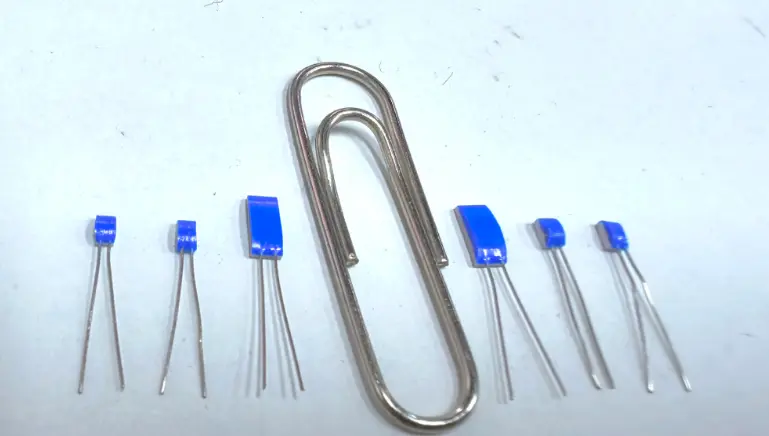

Platinum resistance thermistors operate on the principle that platinum’s electrical resistance increases linearly with temperature. This relationship is defined by standards such as IEC 60751, which specifies the temperature coefficient of resistance (TCR) as 3850 ppm/°C. For example, the PT1000’s resistance rises from 1000Ω at 0°C to 1385Ω at 100°C. The sensor’s design—featuring a thin-film platinum layer deposited on a ceramic substrate—ensures minimal drift and high repeatability. When integrated into circuits like Wheatstone bridges, these thermistors provide voltage outputs proportional to temperature, enabling precise control in systems from HVAC units to battery management in electric vehicles .

Key Advantages of Platinum Resistance Thermistors​

High Accuracy and Stability:

Platinum thermistors offer exceptional long-term stability, with resistance drift as low as ±0.04% after 1000 hours at 500°C. This makes them ideal for applications like pharmaceutical manufacturing or aerospace, where even minor deviations can impact outcomes

.

Fast Response Times:

With a response of 0.15 seconds in water flows, these sensors quickly adapt to temperature changes, ensuring real-time monitoring in dynamic environments such as engine control or medical diagnostics .

Durability in Harsh Conditions:

Their vibration resistance (up to 40g) and shock tolerance (≥100g) allow reliable operation in extreme settings, including automotive engine bays or industrial furnaces .

Wide Temperature Range:

They perform consistently from -50°C to 600°C, outperforming alternatives like thermocouples in low-temperature scenarios .

Applications Across Industries​

Industrial Automation:

PT1000 sensors enable precise temperature control in manufacturing processes, reducing energy waste and maintaining product quality .

Healthcare:

Medical devices like autoclaves and diagnostic equipment rely on these thermistors for sterilization compliance and patient safety .

Automotive:

In electric vehicles, PT1000s monitor battery temperatures, preventing overheating and extending lifespan .

HVAC Systems:

Their stability helps maintain energy-efficient climate control in commercial buildings .

Conclusion​

Platinum resistance thermistors are indispensable for applications demanding accuracy and reliability. Their robust design, coupled with advancements like thin-film technology, ensures they remain at the forefront of temperature sensing. For tailored solutions, consult a specialist to match the right sensor to your needs .

FAQ​

What is the difference between PT100 and PT1000?

PT1000 offers higher sensitivity due to its 1000Ω base resistance, ideal for low-power circuits.

Can these sensors withstand high vibrations?

Yes, with ratings up to 40g, they are suitable for aerospace and automotive environments.

How does self-heating affect performance?

Operating currents of 0.1–0.3 mA minimize self-heating, but it must be calibrated for critical measurements.
