What is Pt10000 Platinum Resistance Temperature Sensor? Principles and Applications Explained

The Pt10000 temperature sensor represents a significant advancement in precision temperature measurement technology, offering superior accuracy and reliability compared to conventional platinum resistance thermometers. This high-resistance platinum sensor utilizes the exceptional temperature coefficient properties of platinum to deliver precise temperature readings across a wide range of applications. Unlike traditional Pt100 sensors, the Pt10000 temperature sensor provides enhanced sensitivity, reduced lead wire errors, and improved signal-to-noise ratios, making it an ideal choice for demanding industrial, medical, and scientific applications where temperature accuracy is paramount.

Understanding Pt10000 Temperature Sensor Technology

Basic Principles of Platinum Resistance Temperature Detection

The Pt10000 temperature sensor operates on the fundamental principle that platinum's electrical resistance changes predictably with temperature variations. This relationship follows a well-defined mathematical curve, making platinum an excellent choice for temperature sensing applications. The sensor consists of a thin platinum film or wire element that exhibits a positive temperature coefficient, meaning its resistance increases as temperature rises. The precision of this relationship allows the Pt10000 temperature sensor to achieve remarkable accuracy levels, typically within ±0.1°C or better.

The platinum element in a Pt10000 temperature sensor is carefully manufactured using advanced thin-film deposition techniques or precision wire-winding methods. The manufacturing process ensures consistent performance characteristics and long-term stability. The sensor's design incorporates sophisticated packaging technologies that protect the platinum element while maintaining excellent thermal response times. This construction methodology enables the Pt10000 temperature sensor to deliver reliable performance across extended temperature ranges, from cryogenic applications to high-temperature industrial processes.

High-Resistance Design Advantages and Benefits

The Pt10000 temperature sensor's high-resistance design offers numerous irreplaceable advantages in temperature measurement applications. These advantages are primarily reflected in significantly improved temperature measurement sensitivity and accuracy, along with unique capabilities for adapting to complex measurement scenarios. The high-resistance configuration addresses common drawbacks of conventional low-resistance platinum resistors, including strong resistance to lead loss and error-free long-distance transmission capabilities that eliminate the need for complex wiring configurations.

The elevated resistance value of the Pt10000 temperature sensor provides exceptional signal strength, delivering stronger output signals with greater resistance changes for identical temperature variations. This enhanced signal amplitude results in superior signal-to-noise ratios and electromagnetic interference resistance that is 5-10 times better than low-resistance platinum resistors. Even in industrial environments with strong electromagnetic interference, the Pt10000 temperature sensor maintains stable operation, ensuring data accuracy and reliability for critical temperature control applications such as precision injection molding machines and semiconductor wafer manufacturing processes.

Integration Technologies and Manufacturing Excellence

Modern Pt10000 temperature sensor manufacturing incorporates advanced microsensor technologies, specialized packaging methods, and multi-sensor integration approaches to create comprehensive sensing solutions. The production process utilizes state-of-the-art thin-film deposition techniques that ensure uniform platinum layer distribution and optimal temperature coefficient characteristics. Quality manufacturing standards including ISO9001 certification, ROHS compliance, and CE marking guarantee that each Pt10000 temperature sensor meets international quality and environmental standards.

The integration of sophisticated testing systems and analysis software enables comprehensive quality control during Pt10000 temperature sensor production. Automated production lines covering room temperature, high temperature, and ultra-low temperature applications ensure consistent performance across diverse operating conditions. Advanced packaging technologies protect the sensitive platinum elements while maintaining excellent thermal coupling and mechanical stability. These manufacturing innovations result in Pt10000 temperature sensors that deliver exceptional accuracy, long-term stability, and reliable performance in demanding applications.

Comprehensive Applications and Industry Use Cases

Industrial Control and Manufacturing Applications

The Pt10000 temperature sensor excels in industrial control applications where precise temperature monitoring is critical for process optimization and quality assurance. Manufacturing processes such as chemical reactions, heat treatment operations, and precision machining rely on accurate temperature feedback to maintain product quality and operational efficiency. The sensor's high-resistance design provides superior signal integrity over long cable runs, making it ideal for large-scale industrial installations where sensors may be located hundreds of meters from control systems.

In semiconductor manufacturing and precision injection molding applications, the Pt10000 temperature sensor delivers the accuracy and stability required for maintaining tight temperature tolerances. The sensor's excellent electromagnetic interference resistance ensures reliable operation in electrically noisy industrial environments filled with motor drives, welding equipment, and high-power switching devices. Process control systems benefit from the sensor's fast response times and exceptional linearity, enabling precise temperature regulation that improves product quality while reducing waste and energy consumption.

Medical Equipment and Laboratory Testing

Medical device applications demand the highest levels of accuracy and reliability, making the Pt10000 temperature sensor an excellent choice for critical healthcare equipment. Laboratory incubators, sterilization equipment, and patient monitoring systems rely on precise temperature measurement to ensure safety and effectiveness. The sensor's stable performance characteristics and minimal drift over time provide the consistency required for long-term medical applications where calibration frequency must be minimized.

Research laboratories utilizing Pt10000 temperature sensors benefit from their exceptional accuracy in controlled environment testing and material characterization studies. The sensors enable precise temperature profiling in thermal analysis equipment, environmental chambers, and calibration standards. Their low power consumption characteristics make them particularly suitable for battery-operated portable medical devices and remote monitoring systems. The combination of high accuracy, stability, and low power requirements makes Pt10000 temperature sensors ideal for IoT-enabled medical devices that require extended operational periods between battery replacements.

High-End Home Appliances and Consumer Applications

The integration of Pt10000 temperature sensors in premium home appliances represents a significant advancement in consumer product performance and energy efficiency. High-end cooking equipment, HVAC systems, and smart home automation devices benefit from the superior accuracy and reliability these sensors provide. The precise temperature control enabled by Pt10000 temperature sensors enhances cooking results, improves energy efficiency, and extends appliance lifespan through optimized operation.

Smart home systems incorporating Pt10000 temperature sensors deliver enhanced comfort and energy savings through precise environmental control. The sensors' low power consumption extends battery life in wireless sensing nodes by 30-50%, reducing maintenance requirements and improving system reliability. Advanced home appliances utilize the sensors' fast response times and high accuracy to implement sophisticated control algorithms that optimize performance while minimizing energy consumption. The electromagnetic interference resistance of Pt10000 temperature sensors ensures reliable operation in modern homes filled with wireless devices and electronic equipment.

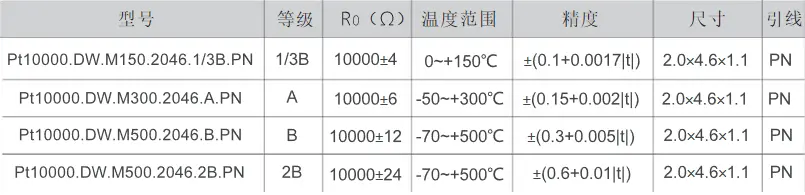

Performance Characteristics and Technical Specifications

Accuracy and Precision Parameters

The Pt10000 temperature sensor achieves exceptional accuracy specifications that surpass conventional temperature sensing technologies. Typical accuracy specifications range from ±0.1°C to ±0.3°C depending on the temperature range and application requirements. The sensor's excellent repeatability ensures consistent measurements over extended periods, with long-term stability specifications typically better than ±0.05°C per year. These performance characteristics make the Pt10000 temperature sensor suitable for critical applications where measurement uncertainty must be minimized.

Calibration standards for Pt10000 temperature sensors follow international temperature scale guidelines, ensuring traceability to national and international standards. The sensors exhibit excellent linearity across their operational temperature ranges, simplifying signal conditioning and reducing computational requirements in measurement systems. Temperature coefficient specifications typically range from 0.003850°C⁻¹ to 0.003916°C⁻¹, providing predictable resistance changes that enable accurate temperature calculations. These specifications ensure that Pt10000 temperature sensors deliver reliable performance in demanding measurement applications.

Environmental Tolerance and Durability

The robust construction of Pt10000 temperature sensors enables operation in challenging environmental conditions while maintaining accuracy and reliability. Temperature ranges typically extend from -200°C to +850°C depending on the specific sensor configuration and packaging design. The sensors demonstrate excellent resistance to vibration, shock, and thermal cycling, making them suitable for mobile and aerospace applications where mechanical stress is a concern.

Chemical resistance characteristics of Pt10000 temperature sensors enable operation in corrosive environments where other sensing technologies might fail. Specialized packaging options provide protection against moisture, chemicals, and atmospheric contaminants while maintaining thermal response performance. The sensors' inherent stability ensures minimal drift even under harsh operating conditions, reducing calibration requirements and maintenance costs. These durability characteristics make Pt10000 temperature sensors ideal for long-term installations in industrial and outdoor applications.

Signal Processing and Interface Options

Modern Pt10000 temperature sensors incorporate advanced signal processing capabilities that simplify system integration and improve measurement performance. Digital output options provide direct temperature readings, eliminating the need for external signal conditioning circuits and reducing system complexity. Analog output configurations offer flexibility for integration with existing control systems while maintaining high accuracy and noise immunity.

The high output signal levels generated by Pt10000 temperature sensors enable direct interface with standard data acquisition systems without requiring signal amplification. This characteristic reduces system costs and complexity while improving reliability by eliminating additional electronic components. Advanced sensor modules incorporate linearization circuits, cold junction compensation, and diagnostic functions that enhance measurement accuracy and system reliability. These integrated features make Pt10000 temperature sensors ideal for modern automated systems that require plug-and-play installation capabilities.

Conclusion

The Pt10000 temperature sensor represents a significant advancement in precision temperature measurement technology, offering superior performance characteristics compared to conventional sensing solutions. Its high-resistance design provides exceptional accuracy, electromagnetic interference resistance, and simplified installation requirements that make it ideal for demanding applications across industrial, medical, and consumer markets. The combination of advanced manufacturing techniques, robust construction, and integrated signal processing capabilities ensures reliable performance in challenging environments while minimizing maintenance requirements and operational costs.

Xi'an Tongzida Technology Co., Ltd. stands at the forefront of Pt10000 temperature sensor innovation, leveraging advanced microsensor manufacturing technology, specialized packaging expertise, and comprehensive testing capabilities to deliver world-class sensing solutions. As a leading manufacturer and supplier of high-performance temperature sensors, we provide complete sensor manufacturing and application solutions centered around core sensitive chips, microsensors, testing systems, and analysis software. For inquiries about our Pt10000 temperature sensor products and custom solutions, contact our technical sales team at sales11@xatzd.com to discuss your specific application requirements and discover how our advanced sensor technologies can enhance your system performance.
