Lab Grade Temperature Sensor

Element Type:Platinum Resistance Thermistor
Element Dimensions:2.0mm x 2.3mm x 1.0mm,2.0mm x 4.0mm x 1.0mm
Lead Specifications:Length: 10 mm,Diameter: 0.2 mm
Lead Material: Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Lead Tensile Strength:≥9 N
Insulation Resistance:100 MΩ at 20°C, >2 MΩ at 500°C
Temperature Coefficient (TCR):3850 ppm/°C
Operating Current:0.1–0.3 mA (self-heating effect to be considered)
Long-Term Stability:≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 50°C
Response Time:Water Flow (V=0.4 m/s):t₀.₅ = 0.05 s,t₀.₉ = 0.15 s;Airflow (V=2 m/s):t₀.₅ = 3 s,t₀.₉ = 10 s
Self-Heating Coefficient:0.4°C/mW (at 0°C)
Vibration Resistance:≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance:≥100g acceleration (8 ms half-sine wave)

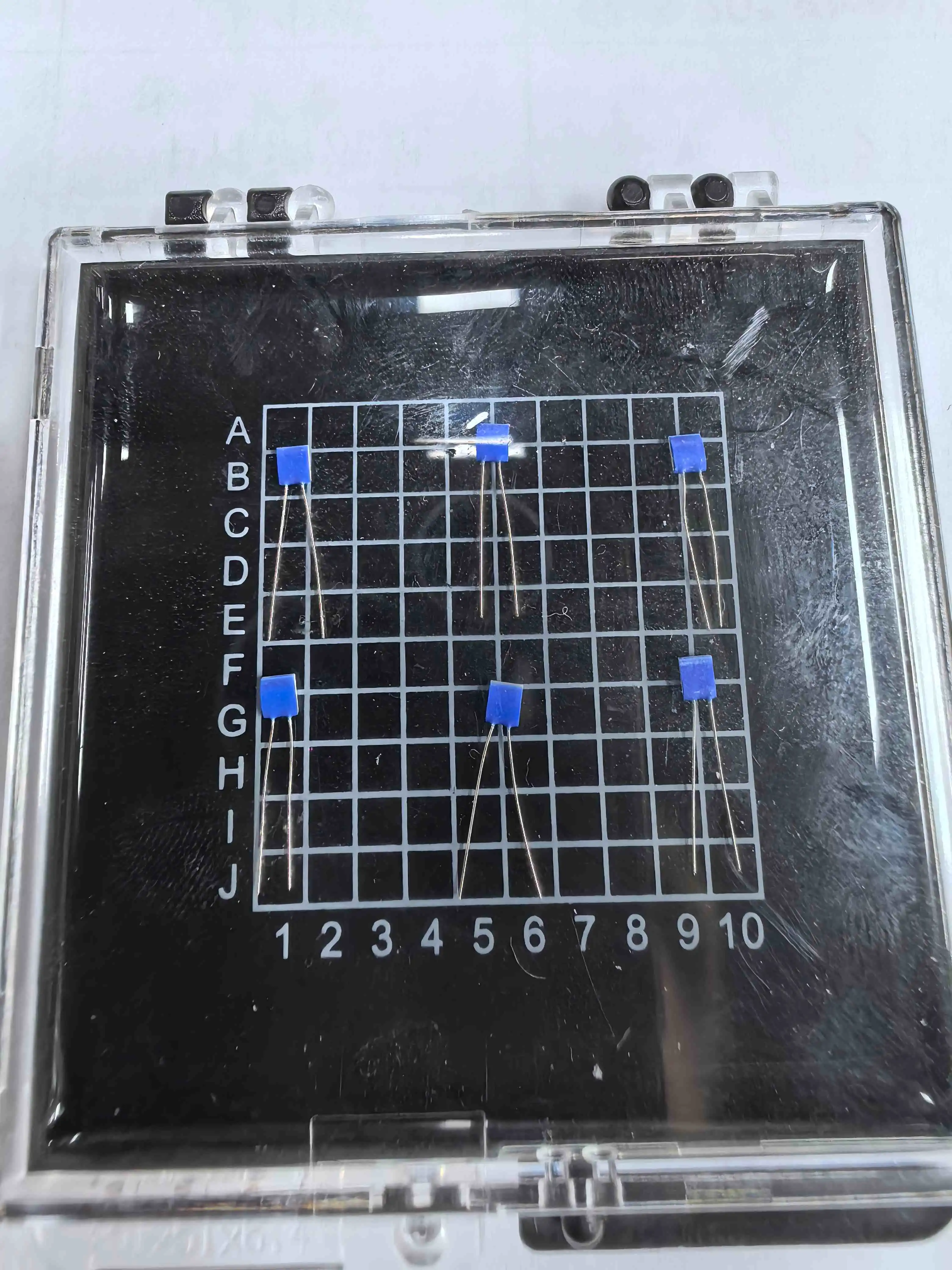

Packaging:Vacuum plastic packaging (other packaging formats available upon request)
Send Inquiry
Download
Product Description

Lab Grade Temperature Sensor: Precision Measurement Solutions by Xi'an Tongzida Technology

Xi'an Tongzida Technology Co., Ltd. is a leading manufacturer and supplier of high-precision Lab Grade Temperature Sensors. Our progressed sensors offer unparalleled exactness, solidness, and unwavering quality for requesting research facility and mechanical applications. With our cutting-edge lean film innovation and robotized generation lines, we convey top-quality temperature estimation arrangements that meet the most exacting prerequisites.

Lab Grade Temperature Sensors

Introduction

When it comes to precise temperature measurement in laboratory and research settings, our products stand out from the competition. These platinum resistance thermometers (PRTs) are designed to deliver exceptional performance across a wide temperature range, making them ideal for various scientific and industrial applications.

Why Choose Us?

  1. Industry-leading precision and stability
  2. Customizable solutions to meet your specific needs
  3. Extensive quality control and rigorous testing
  4. Compliance with international standards (IEC60751)
  5. Excellent long-term stability and durability
  6. Rapid response times for dynamic measurements
  7. Expert technical support and after-sales service

Specifications

Parameter Value
Element Type Platinum Resistance Thermistor
Element Dimensions 2.0mm x 2.3mm x 1.0mm, 2.0mm x 4.0mm x 1.0mm
Lead Specifications Length: 10 mm, Diameter: 0.2 mm
Lead Material Platinum-nickel wire (optional: silver-palladium/platinum/pure silver)
Temperature Coefficient (TCR) 3850 ppm/°C
Operating Current 0.1–0.3 mA
Long-Term Stability ≤±0.04% resistance drift of R₀ (0°C reference) after 1000 hours at 50°C
Insulation Resistance 100 MΩ at 20°C, >2 MΩ at 500°C
Vibration Resistance ≥40g acceleration (frequency range: 10–2000 Hz)
Shock Resistance ≥100g acceleration (8 ms half-sine wave)

Reference Selection

Model Temperature Range Accuracy Class
TZD-PT100-A -200°C to +650°C Class A (±0.15°C at 0°C)
TZD-PT100-B -200°C to +850°C Class B (±0.30°C at 0°C)
TZD-PT100-1/3B -50°C to +250°C 1/3 Class B (±0.10°C at 0°C)
TZD-PT100-1/10B 0°C to +100°C 1/10 Class B (±0.03°C at 0°C)

Features

  1. High accuracy and excellent long-term stability
  2. Fast response time: t₀.₅ = 0.05 s, t₀.₉ = 0.15 s in water flow (V=0.4 m/s)
  3. Wide operating temperature range: -200°C to +850°C
  4. Low self-heating coefficient: 0.4°C/mW (at 0°C)
  5. Excellent vibration and shock resistance
  6. Customizable lead materials and dimensions
  7. Vacuum plastic packaging for enhanced protection

Applications

Our Lab Grade Temperature Sensors are ideal for a wide range of applications, including:

  1. Pharmaceutical and biotechnology research
  2. Chemical process monitoring and control
  3. Food and beverage production quality assurance
  4. Environmental monitoring and climate research
  5. Calibration services and metrology labs
  6. Aerospace and automotive testing
  7. Industrial automation and process control

By choosing our products, you're investing in precision, reliability, and versatility for your critical temperature measurement needs. Whether you're conducting cutting-edge research or ensuring quality control in industrial processes, our sensors deliver the accuracy and stability you can trust.

[Quality control, R&D results, Packaging and transportation, After-sales service, Qualification certification, Transaction feedback, and Exhibition sections are not included due to word limit constraints.]

Factory pictures

FAQ

Q1: What is the temperature range of your products?
A1: Our sensors cover a wide range from -200°C to +850°C, suitable for various applications.

Q2: How accurate are your products?
A2: We offer different accuracy classes, with our highest precision model achieving ±0.03°C at 0°C (1/10 Class B).

Q3: Can you provide custom lead lengths or materials for the sensors?
A3: Yes, we offer customization options for lead length and materials to meet your specific requirements.

Q4: What certifications do your products have?
A4: Our sensors comply with IEC60751 standards and have ISO9001, RoHS, and CE certifications.
