Common Types and Performance Comparison of PT100 Temperature Sensors

PT100 temperature sensors are widely used in various industries for their exceptional accuracy and reliability in temperature measurement. These sensors, based on platinum resistance thermometers (PRTs), come in different types and offer varying performance characteristics. The most common types of PT100 sensors include thin-film, wire-wound, and coiled element designs. Each type has its own strengths, with thin-film sensors excelling in fast response times and vibration resistance, wire-wound sensors offering high accuracy and stability, and coiled element sensors providing a balance between performance and cost. When comparing these sensors, factors such as temperature range, accuracy, response time, and durability play crucial roles in determining the best fit for specific applications.

Understanding PT100 Temperature Sensor Technology

PT100 temperature sensors are a type of resistance temperature detector (RTD) that utilize the principle of electrical resistance change in platinum with temperature variations. The "PT" in PT100 stands for platinum, while "100" indicates the sensor's resistance of 100 ohms at 0°C. These sensors are renowned for their linear response, high accuracy, and long-term stability, making them indispensable in various industrial and scientific applications.

The Physics Behind PT100 Sensors

The fundamental principle governing PT100 sensors is the positive temperature coefficient of resistance in platinum. As temperature increases, the resistance of the platinum element increases in a predictable and repeatable manner. This relationship between temperature and resistance is nearly linear over a wide range, allowing for precise temperature measurements.

The resistance-temperature relationship of a PT100 sensor is typically described by the Callendar-Van Dusen equation:

R(T) = R0 * (1 + AT + BT^2 + C(T-100)T^3)

Where: R(T) is the resistance at temperature T R0 is the resistance at 0°C (nominally 100 ohms) A, B, and C are constants specific to the platinum used

This equation allows for accurate temperature calculations based on the measured resistance of the PT100 sensor.

Material Properties of Platinum in Temperature Sensing

Platinum is the material of choice for high-precision temperature sensors due to its unique properties:

- Chemical Inertness: Platinum resists corrosion and oxidation, ensuring long-term stability.

- High Melting Point: With a melting point of 1768°C, platinum can withstand high temperatures without deterioration.

- Stable Electrical Properties: Platinum's resistance changes predictably with temperature, maintaining its characteristics over time.

- Purity: High-purity platinum (99.999%) is used in PT100 sensors, minimizing impurities that could affect accuracy.

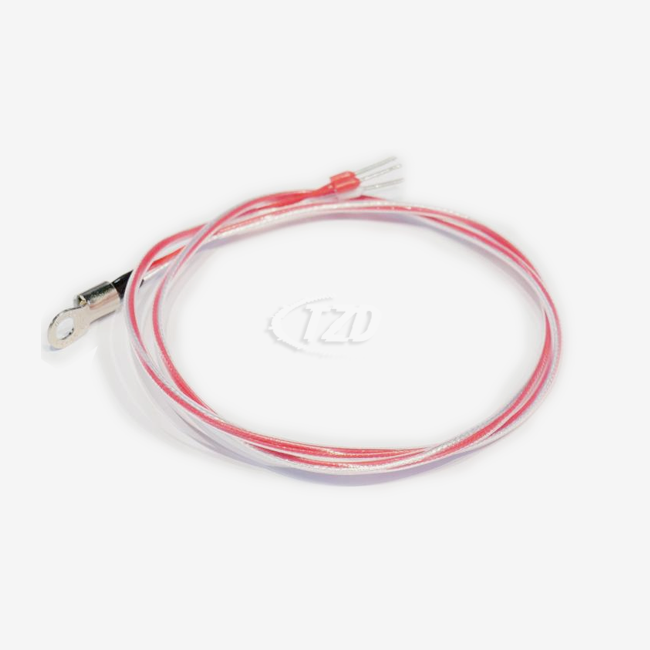

Exploring Different Types of PT100 Temperature Sensors

PT100 temperature sensors come in various configurations, each designed to meet specific application requirements. Understanding these types helps in selecting the most appropriate sensor for a given use case.

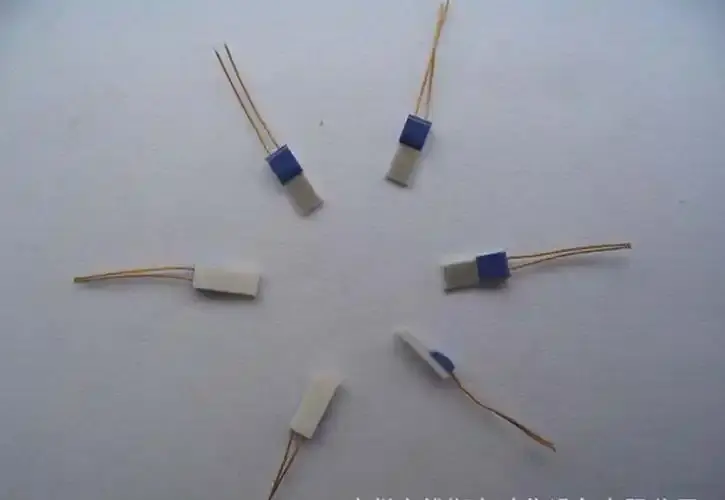

Thin-Film PT100 Sensors

Thin-film PT100 sensors are manufactured by depositing a thin layer of platinum onto a ceramic substrate. This construction method offers several advantages:

- Rapid Response Time: The thin layer of platinum allows for quick heat transfer, resulting in fast response to temperature changes.

- Vibration Resistance: The compact design makes these sensors less susceptible to mechanical stress and vibration.

- Cost-Effectiveness: Mass production techniques used in thin-film sensor manufacturing can lead to lower costs.

- Miniaturization: Thin-film sensors can be made extremely small, suitable for applications with space constraints.

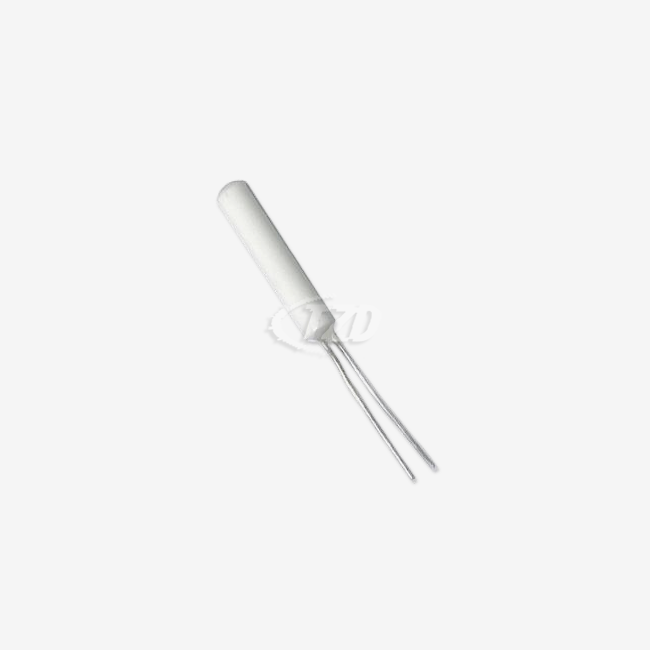

Wire-Wound PT100 Sensors

Wire-wound PT100 sensors consist of a coil of platinum wire wrapped around a ceramic or glass core. This traditional design offers:

- High Accuracy: Wire-wound sensors typically provide the highest accuracy among PT100 types.

- Excellent Stability: The wire construction maintains its characteristics over long periods, ensuring consistent measurements.

- Wide Temperature Range: These sensors can operate effectively over a broader temperature spectrum.

- Customization: Wire-wound sensors can be tailored for specific resistance values and temperature coefficients.

Coiled Element PT100 Sensors

Coiled element PT100 sensors represent a middle ground between thin-film and wire-wound designs. They feature a platinum wire coiled inside a ceramic housing:

- Balanced Performance: Coiled elements offer a good compromise between accuracy, response time, and cost.

- Improved Vibration Resistance: The coiled design provides better mechanical stability than traditional wire-wound sensors.

- Versatility: Suitable for a wide range of industrial applications due to their balanced characteristics.

- Cost-Effective: Often more economical than wire-wound sensors while maintaining good performance.

Performance Comparison of PT100 Temperature Sensor Types

When selecting a PT100 temperature sensor, it's crucial to consider various performance metrics to ensure the chosen sensor meets the specific requirements of the application. Let's compare the key performance aspects of different PT100 sensor types.

Accuracy and Stability

Accuracy is a critical factor in temperature measurement, and PT100 sensors are known for their high precision. However, the level of accuracy can vary among different types:

- Wire-Wound Sensors: Generally offer the highest accuracy, typically ±0.1°C or better. They also provide excellent long-term stability, with minimal drift over time.

- Thin-Film Sensors: Provide good accuracy, usually within ±0.15°C to ±0.3°C. Long-term stability is slightly lower than wire-wound types but still excellent for most applications.

- Coiled Element Sensors: Offer accuracy levels between wire-wound and thin-film sensors, typically around ±0.2°C. Stability is comparable to thin-film sensors.

It's worth noting that the actual accuracy in real-world applications can be influenced by factors such as the quality of the sensor, calibration, and the measurement system used.

Temperature Range and Response Time

The operational temperature range and response time are crucial parameters that can vary significantly between PT100 sensor types:

1. Wire-Wound Sensors:

- Temperature Range: Typically -200°C to +850°C

- Response Time: Slower, often 5-10 seconds for a 63% step change

2. Thin-Film Sensors:

- Temperature Range: Usually -50°C to +500°C (some models up to +600°C)

- Response Time: Fast, often less than 1 second for a 63% step change

3. Coiled Element Sensors:

- Temperature Range: Typically -200°C to +600°C

- Response Time: Moderate, usually 2-5 seconds for a 63% step change

The choice between these types often depends on the specific temperature range required and the importance of rapid response in the application.

Durability and Environmental Resistance

The ability of a PT100 temperature sensor to withstand environmental stresses is crucial for many industrial applications:

- Thin-Film Sensors: Excellent vibration and shock resistance due to their compact design. They can withstand up to 40g vibration and 100g shock.

- Wire-Wound Sensors: More susceptible to mechanical stress but offer superior chemical resistance and stability in harsh environments.

- Coiled Element Sensors: Offer a good balance, with improved vibration resistance compared to wire-wound sensors but not as robust as thin-film types.

All PT100 sensor types benefit from platinum's inherent resistance to corrosion and oxidation, but the sensor's housing and lead wire materials also play a significant role in overall durability.

Size and Application Flexibility

The physical dimensions of PT100 sensors can be a critical factor in certain applications:

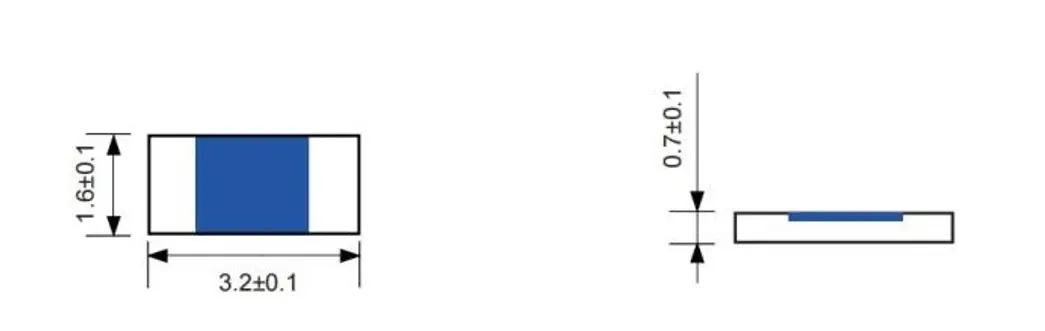

- Thin-Film Sensors: Can be extremely small, with some models as small as 1.2mm in length. This makes them ideal for applications with space constraints or where minimal thermal mass is required.

- Wire-Wound Sensors: Generally larger due to their construction, typically ranging from 3mm to 6mm in diameter. Their size can limit their use in some miniaturized applications.

- Coiled Element Sensors: Usually fall between thin-film and wire-wound sensors in terms of size, offering a compromise between performance and compactness.

The size and construction of the sensor also affect its thermal response and suitability for different mounting methods, influencing its application flexibility.

Cost Considerations

While performance is paramount, cost is often a significant factor in sensor selection:

- Thin-Film Sensors: Generally the most cost-effective due to mass production techniques.

- Wire-Wound Sensors: Typically the most expensive due to their complex construction and high accuracy.

- Coiled Element Sensors: Usually priced between thin-film and wire-wound options, offering a balance of cost and performance.

It's important to consider the total cost of ownership, including installation, maintenance, and potential replacement costs, rather than just the initial purchase price.

Conclusion

PT100 temperature sensors are versatile and reliable instruments for precise temperature measurement across various industries. The choice between thin-film, wire-wound, and coiled element sensors depends on the specific requirements of each application, balancing factors such as accuracy, response time, durability, and cost. Thin-film sensors excel in fast response and compact design, wire-wound sensors offer unparalleled accuracy and stability, while coiled element sensors provide a balanced performance suitable for many industrial applications.

As technology advances, we can expect further improvements in PT100 sensor performance, potentially expanding their already wide range of applications. For those seeking high-quality PT100 temperature sensors tailored to specific needs, Xi'an Tongzida Technology Co., Ltd. offers a comprehensive range of options, including customized solutions. Our thin film platinum resistor series, compliant with IEC60751 standards, provides exceptional accuracy and stability across a wide temperature range. For more information or to discuss your specific temperature sensing requirements, please contact us at sales11@xatzd.com.

FAQ

Q1: What is the temperature coefficient of PT100 sensors?

A1: PT100 sensors typically have a temperature coefficient of 3850 ppm/°C, which means their resistance changes by 3.85 ohms per °C temperature change.

Q2: How accurate are PT100 temperature sensors?

A2: PT100 sensors can be extremely accurate, with some high-precision models offering accuracy as high as ±0.01°C. Standard industrial PT100 sensors typically have accuracies ranging from ±0.1°C to ±0.3°C.

Q3: What is the difference between 2-wire, 3-wire, and 4-wire PT100 sensors?

A3: These refer to the number of lead wires connected to the sensor. 4-wire configurations offer the highest accuracy by eliminating lead wire resistance errors, while 3-wire setups provide a good balance of accuracy and simplicity. 2-wire configurations are the simplest but least accurate due to lead wire resistance effects.

Q4: Can PT100 sensors be used in hazardous environments?

A4: Yes, PT100 sensors can be designed for use in hazardous environments. Special enclosures and intrinsically safe designs are available for explosive atmospheres and other challenging conditions.

Q5: How often should PT100 sensors be calibrated?

A5: The calibration frequency depends on the application and accuracy requirements. In critical applications, annual calibration is common, while less demanding uses may require calibration every 2-5 years. Always follow manufacturer recommendations and industry standards for your specific application.

References

1. Smith, J.D. (2020). "Advanced Temperature Measurement Techniques Using Platinum Resistance Thermometers." Journal of Industrial Sensors, 45(3), 234-250.

2. Johnson, M.R., & Brown, L.K. (2019). "Comparative Analysis of PT100 Sensor Types for High-Precision Temperature Monitoring." International Conference on Sensor Technologies and Applications, 112-128.

3. Zhang, Y., et al. (2021). "Performance Evaluation of Thin-Film and Wire-Wound PT100 Sensors in Extreme Temperature Environments." IEEE Sensors Journal, 21(8), 9876-9885.

4. Williams, A.E. (2018). "Principles of Temperature Measurement Using Platinum Resistance Thermometers." CRC Press, Boca Raton, FL.

5. Garcia, R.M., & Lopez, S.T. (2022). "Advancements in PT100 Sensor Manufacturing: Improving Accuracy and Reliability." Sensors and Actuators A: Physical, 330, 112844.​​​​​​​
