How to Accurately Test and Calibrate PT100 Temperature Sensor?

Accurately testing and calibrating a PT100 temperature sensor involves a systematic approach combining precision equipment and meticulous procedures. To ensure optimal performance, begin by selecting a calibrated reference thermometer and a stable temperature source. Immerse both the PT100 sensor and reference thermometer in the temperature source, allowing sufficient time for stabilization. Record resistance measurements at various temperature points across the sensor's range. Compare these readings to the expected values based on the PT100 resistance-temperature relationship. Adjust the sensor or its associated electronics as needed to align with the reference thermometer. This process, when executed carefully, guarantees the PT100 sensor's accuracy and reliability in critical applications.

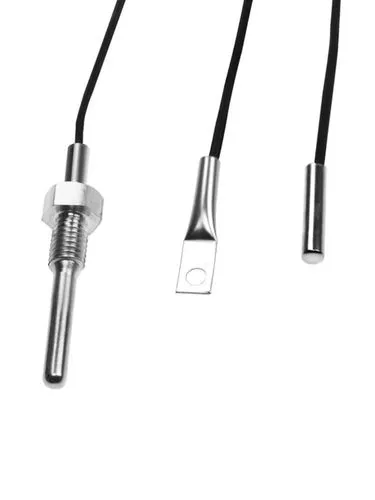

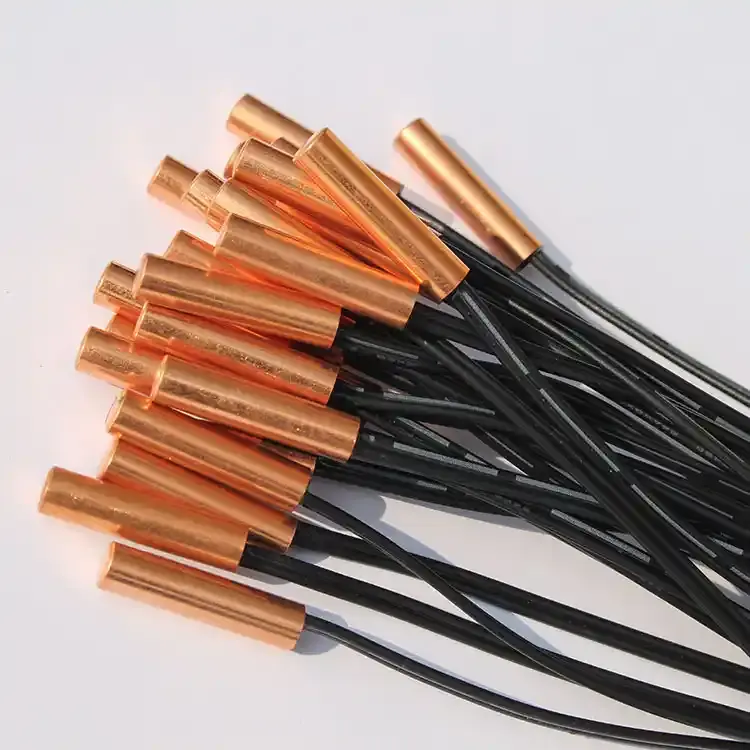

Grasping PT100 Temperature Sensors: Principles and Applications

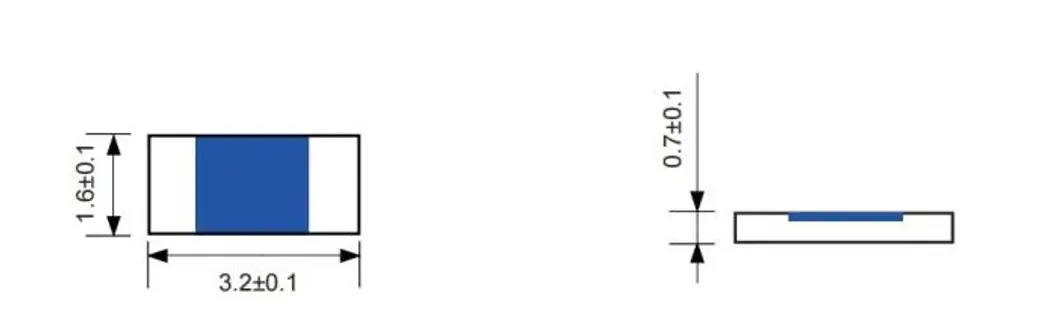

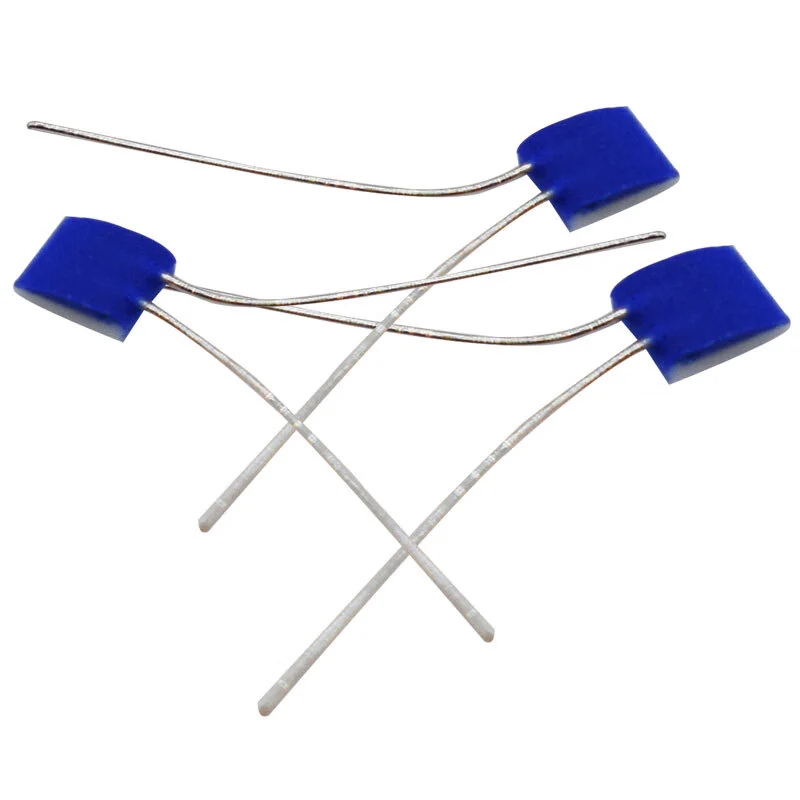

PT100 temperature sensors are integral components in numerous industrial and scientific applications, prized for their accuracy and stability. These sensors operate on the principle of resistance temperature detection (RTD), utilizing the predictable change in electrical resistance of platinum with temperature. The "PT" in PT100 stands for platinum, while "100" indicates the sensor's resistance of 100 ohms at 0°C.

The platinum used in PT100 sensors exhibits a nearly linear relationship between resistance and temperature, making it ideal for precise temperature measurements. This linearity, combined with platinum's chemical inertness and high melting point, allows PT100 sensors to measure a wide temperature range, typically from -200°C to 850°C, with exceptional accuracy.

The Physics Behind PT100 Sensors

At the heart of PT100 sensor operation is the temperature coefficient of resistance (TCR) of platinum. For a PT100 sensor, this coefficient is approximately 0.00385 ohms per ohm per degree Celsius. This means that for every 1°C increase in temperature, the sensor's resistance increases by 0.385 ohms.

The relationship between resistance and temperature for a PT100 sensor can be approximated by the Callendar-Van Dusen equation:

R(T) = R0 * (1 + A*T + B*T^2 + C*(T-100)*T^3)

Where: R(T) is the resistance at temperature T R0 is the resistance at 0°C (100 ohms for a PT100) A, B, and C are constants specific to the platinum used

This equation allows for precise calculation of temperature based on measured resistance, forming the basis for PT100 sensor calibration and testing.

Applications Across Industries

PT100 temperature sensors find applications in diverse fields due to their reliability and accuracy. In the food and beverage industry, they ensure precise temperature control during processing and storage. In pharmaceuticals, PT100 sensors monitor critical temperatures in drug manufacturing and storage facilities. The automotive sector utilizes these sensors in engine management systems and climate control units.

In more demanding environments, such as aerospace and petrochemicals, PT100 sensors play crucial roles in safety systems and process control. Their ability to withstand harsh conditions while maintaining accuracy makes them indispensable in these high-stakes applications.

Essential Equipment and Procedures for PT100 Sensor Testing

Accurate testing of PT100 temperature sensors requires a combination of specialized equipment and meticulous procedures. This section delves into the essential tools and step-by-step processes necessary for precise PT100 sensor evaluation.

Key Equipment for PT100 Testing

Precision Resistance Measurement Device: A high-accuracy digital multimeter or a dedicated RTD simulator is crucial for measuring the PT100 sensor's resistance with precision.

- Stable Temperature Source: This can be a calibrated dry-well calibrator, a liquid bath, or a thermoelectric cooler, depending on the temperature range being tested.

- Reference Thermometer: A calibrated platinum resistance thermometer (PRT) or a high-accuracy thermocouple serves as the standard against which the PT100 sensor is compared.

- Insulation Materials: To minimize heat transfer and ensure temperature stability during testing.

- Data Acquisition System: For automated logging of temperature and resistance measurements over time.

Step-by-Step Testing Procedure

1. Sensor Preparation: Clean the PT100 sensor thoroughly to remove any contaminants that could affect readings.

2. Equipment Setup: Connect the PT100 sensor to the resistance measurement device. Ensure all connections are secure and free from interference.

3. Temperature Source Stabilization: Set the temperature source to the desired test point and allow it to stabilize. This may take several minutes to an hour, depending on the equipment and temperature range.

4. Sensor Immersion: Carefully immerse both the PT100 sensor and the reference thermometer in the temperature source. Ensure they are at the same depth and not touching the walls of the container.

5. Equilibrium Waiting Period: Allow sufficient time for the sensor to reach thermal equilibrium with the temperature source. This is critical for accurate readings.

6. Measurement Recording: Once stability is achieved, record the resistance of the PT100 sensor and the temperature reading from the reference thermometer.

7. Multiple Point Testing: Repeat steps 3-6 at various temperature points across the sensor's intended operating range.

8. Data Analysis: Compare the recorded resistance values with the expected values based on the PT100 resistance-temperature relationship. Calculate deviations and determine if they fall within acceptable tolerances.

Advanced Calibration Techniques for Optimizing PT100 Sensor Performance

Calibration of PT100 temperature sensors is a critical process that ensures their accuracy and reliability in various applications. Advanced calibration techniques go beyond basic testing to optimize sensor performance across its entire operating range.

Multi-Point Calibration Strategy

Multi-point calibration involves testing the PT100 sensor at multiple temperature points across its operating range. This technique provides a comprehensive understanding of the sensor's behavior and allows for more accurate compensation of non-linearities.

Procedure:

1. Select calibration points: Choose temperatures that span the sensor's operating range, including critical points for the specific application.

2. Stabilize and measure: At each point, allow the temperature to stabilize fully before taking measurements.

3. Record data: Document the sensor's resistance and the reference temperature at each point.

4. Calculate coefficients: Use the collected data to calculate custom Callendar-Van Dusen coefficients for the specific sensor.

This method results in a calibration curve that more accurately represents the sensor's behavior across its entire range, significantly improving overall measurement accuracy.

Hysteresis and Drift Compensation

PT100 sensors can exhibit slight hysteresis (differences in readings when approaching a temperature from above or below) and drift over time. Advanced calibration techniques address these issues:

Hysteresis Compensation:

1. Perform calibration in both ascending and descending temperature directions.

2. Average the results to create a calibration curve that accounts for hysteresis effects.

3. Implement this averaged curve in the measurement system for improved accuracy.

Drift Compensation:

1. Conduct periodic recalibrations to track sensor drift over time.

2. Implement predictive algorithms that adjust for expected drift between calibrations.

3. Use statistical process control techniques to monitor and compensate for long-term drift trends.

In-Situ Calibration Techniques

For applications where removing the PT100 sensor for laboratory calibration is impractical, in-situ calibration techniques offer a solution:

- Portable Calibration Systems: Use compact, portable calibrators that can be brought to the sensor's location.

- Comparative Calibration: Temporarily install a high-accuracy reference sensor near the PT100 sensor for on-site comparison and adjustment.

- Process Variable Correlation: In some cases, correlate the PT100 readings with other process variables to infer and adjust calibration in real-time.

Implementing Calibration Results

After performing advanced calibration, the results must be effectively implemented to improve sensor performance:

- Update Sensor Electronics: Program the new calibration coefficients into the sensor's transmitter or the associated measurement system.

- Validate Implementation: Conduct verification tests to ensure the new calibration data is correctly applied and improving measurement accuracy.

- Document Calibration: Maintain detailed records of the calibration process, including methods used, data collected, and adjustments made.

- Establish Calibration Intervals: Based on the observed drift and application requirements, set appropriate intervals for future calibrations.

Conclusion

Accurate testing and calibration of PT100 temperature sensors are crucial for maintaining the integrity of temperature-dependent processes across various industries. By understanding the principles behind PT100 sensors, utilizing the right equipment, and following meticulous procedures, engineers and technicians can ensure these sensors perform with the highest degree of accuracy and reliability.

The advanced calibration techniques discussed, such as multi-point calibration, hysteresis compensation, and in-situ methods, provide powerful tools for optimizing sensor performance in even the most challenging applications. Implementing these strategies not only improves measurement accuracy but also extends the useful life of the sensors and enhances the overall efficiency of the systems they monitor. For more information on our advanced PT100 temperature sensors and calibration services, please contact us at sales11@xatzd.com.
