PT1000 Sensor Temperature Range Explained

Understanding the temperature range capabilities of PT1000 sensors is crucial for engineers and procurement professionals seeking precision temperature measurement solutions. The PT1000 sensor represents an advanced evolution in platinum resistance thermometry, offering superior accuracy and stability across extended temperature ranges compared to conventional sensors. These high-resistance platinum sensors deliver exceptional performance in demanding industrial applications where precise temperature monitoring is essential for process control and quality assurance. The comprehensive temperature range of PT1000 sensors makes them indispensable for applications spanning from cryogenic research to high-temperature industrial processes.

Understanding PT1000 Sensor Operating Temperature Ranges

Standard Operating Temperature Range

The PT1000 sensor demonstrates remarkable versatility with its standard operating temperature range extending from -200°C to +850°C, significantly surpassing many conventional temperature sensors. This extensive range makes the PT1000 sensor particularly valuable in applications requiring consistent performance across diverse thermal environments. The platinum element's inherent stability ensures reliable measurements throughout this broad spectrum, maintaining accuracy within ±0.1°C in controlled conditions.

The wide temperature capability of the PT1000 sensor stems from platinum's exceptional thermal coefficient properties and resistance stability. Unlike thermocouples that may drift over time or thermistors limited by narrow ranges, the PT1000 sensor maintains consistent performance characteristics across its entire operating spectrum. This reliability translates to reduced maintenance requirements and improved long-term measurement accuracy in critical applications.

Extended Temperature Applications

Specialized PT1000 sensor configurations can operate in extreme temperature environments reaching as low as -250°C in cryogenic applications and up to +1000°C in high-temperature industrial processes. These extended range capabilities require careful sensor construction and appropriate protective housings to maintain accuracy and longevity. The sensor's platinum element retains its linear response characteristics even under these extreme conditions, ensuring measurement reliability.

Advanced packaging techniques enable PT1000 sensors to function effectively in harsh industrial environments while maintaining their precision characteristics. The sensor's robust construction allows operation in corrosive atmospheres, high-pressure systems, and vibration-prone installations without compromising measurement accuracy. This durability makes the PT1000 sensor an ideal choice for demanding industrial applications where sensor replacement would be costly or impractical.

Temperature Range Limitations and Considerations

While PT1000 sensors offer exceptional temperature range capabilities, certain application-specific limitations must be considered during selection and installation. Factors such as response time, thermal shock resistance, and mechanical stress can affect sensor performance at temperature extremes. Proper sensor mounting and thermal management are essential for achieving optimal performance throughout the specified temperature range.

Environmental conditions significantly impact PT1000 sensor performance, particularly at temperature extremes where thermal expansion and material stress become critical factors. The sensor's protective housing must be carefully selected to ensure compatibility with the intended operating environment while maintaining thermal coupling efficiency. Understanding these limitations enables engineers to design systems that maximize the PT1000 sensor's performance potential while ensuring long-term reliability.

Factors Affecting PT1000 Sensor Temperature Performance

Resistance Characteristics and Sensitivity

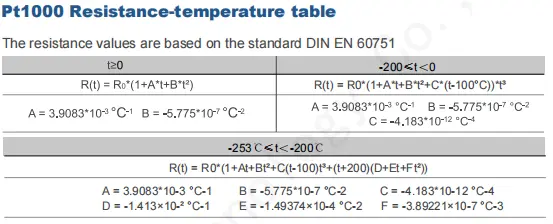

The PT1000 sensor's high-resistance design of 1000 ohms at 0°C provides significantly improved sensitivity compared to lower resistance variants, delivering approximately 3.85 ohms per degree Celsius temperature change. This enhanced sensitivity enables more precise temperature measurements and reduces the impact of lead wire resistance on overall system accuracy. The higher resistance output also improves signal-to-noise ratio, particularly beneficial in electrically noisy industrial environments.

The PT1000 sensor's resistance characteristics remain highly linear across its operating temperature range, simplifying calibration procedures and enabling accurate temperature calculations using standard conversion algorithms. This linearity ensures consistent measurement accuracy whether operating near ambient conditions or at temperature extremes. The predictable resistance response allows for straightforward system integration and reduces the complexity of signal conditioning requirements.

Environmental Impact on Temperature Range

Environmental factors such as humidity, chemical exposure, and mechanical vibration can significantly influence PT1000 sensor performance across different temperature ranges. The sensor's platinum element requires protection from contamination and physical damage to maintain accuracy specifications throughout its operating life. Proper sensor selection and installation techniques are essential for achieving optimal performance in challenging environments.

The PT1000 sensor's construction materials and protective coatings must be compatible with the intended operating environment to prevent degradation that could affect temperature range performance. Chemical compatibility assessments are particularly important in corrosive environments where sensor housing materials may be compromised. Understanding these environmental impacts enables proper sensor specification and installation practices that maximize operational lifespan and measurement reliability.

Calibration Requirements Across Temperature Ranges

PT1000 sensor calibration procedures must account for the entire intended operating temperature range to ensure accuracy across all measurement conditions. Multi-point calibration at various temperatures provides optimal accuracy, particularly for applications requiring precise measurements across wide temperature spans. Regular calibration verification helps maintain measurement accuracy and identifies potential sensor drift or degradation issues.

Temperature cycling effects on PT1000 sensor accuracy require consideration during calibration planning, as repeated thermal stress can cause gradual changes in sensor characteristics. The sensor's platinum element exhibits excellent stability, but mechanical mounting stress and thermal expansion effects can introduce measurement errors over time. Implementing appropriate calibration schedules and monitoring procedures ensures continued measurement accuracy throughout the sensor's operational life.

Applications and Selection Criteria for PT1000 Temperature Ranges

Industrial Process Applications

PT1000 sensors excel in industrial process control applications where temperature monitoring across wide ranges is essential for product quality and safety. Manufacturing processes such as semiconductor fabrication, pharmaceutical production, and precision injection molding require the accuracy and stability that PT1000 sensors provide throughout their extensive temperature range. The sensor's ability to maintain calibration stability reduces process variability and improves overall product quality.

Chemical processing industries particularly benefit from PT1000 sensor temperature range capabilities, as reaction monitoring often requires precise temperature control across varying thermal conditions. The sensor's resistance to chemical corrosion and temperature cycling makes it ideal for reactor monitoring and process optimization applications. Real-time temperature data from PT1000 sensors enables automated process control systems to maintain optimal operating conditions and prevent thermal runaway scenarios.

Laboratory and Research Applications

Research laboratories require temperature sensors capable of accurate measurements across extreme temperature ranges, making PT1000 sensors essential for cryogenic research and high-temperature material testing. The sensor's precision characteristics enable researchers to collect reliable data for scientific analysis and experimental validation. Laboratory applications often demand the highest accuracy standards that PT1000 sensors readily achieve.

Materials testing applications benefit from PT1000 sensor temperature range capabilities when characterizing thermal properties across wide temperature spans. The sensor's fast response time and accuracy enable precise thermal analysis measurements essential for material development and quality control procedures. Research environments require sensors that maintain calibration stability over extended periods, a characteristic where PT1000 sensors excel.

Medical and Healthcare Equipment

Medical equipment applications demand the highest reliability and accuracy standards that PT1000 sensors provide across their operating temperature range. Sterilization processes, patient monitoring systems, and laboratory diagnostic equipment rely on precise temperature control for safe and effective operation. The sensor's biocompatible construction options make it suitable for direct patient contact applications where temperature monitoring is critical.

Healthcare facility HVAC systems utilize PT1000 sensors for maintaining precise environmental conditions required for sensitive medical procedures and equipment operation. The sensor's accuracy across room temperature ranges ensures optimal conditions for patient comfort and medical device performance. Critical care equipment particularly benefits from the reliable temperature monitoring that PT1000 sensors provide in life-support applications.

Conclusion

PT1000 sensors represent the pinnacle of precision temperature measurement technology, offering unmatched performance across extensive temperature ranges from -200°C to +850°C and beyond in specialized applications. Their high-resistance design delivers superior accuracy, electromagnetic interference resistance, and reduced power consumption compared to conventional temperature sensors. The comprehensive temperature range capabilities, combined with excellent long-term stability and fast response characteristics, make PT1000 sensors indispensable for demanding industrial, laboratory, and medical applications where precision temperature monitoring is critical for operational success.

Xi'an Tongzida Technology Co., Ltd. stands at the forefront of PT1000 sensor manufacturing innovation, leveraging advanced microsensor technology and specialized packaging techniques to deliver superior temperature measurement solutions. As a leading manufacturer and supplier of high-precision PT1000 sensors, we provide comprehensive sensor manufacturing capabilities backed by ISO9001 quality management certification. Our expertise in thin film temperature sensor technology ensures reliable performance across diverse applications. For procurement professionals seeking reliable PT1000 sensor suppliers for critical temperature monitoring applications, our experienced team provides customized solutions tailored to specific operational requirements. Contact our technical sales team at sales11@xatzd.com to discover how our advanced PT1000 sensor technology can optimize your temperature measurement systems.
