Thermocouple, Thermistor, and RTD: Comparison of Three Temperature Sensors

When it comes to measuring temperature in various applications, three primary types of temperature sensors stand out: thermocouples, thermistors, and RTDs (Resistance Temperature Detectors). Each of these sensors has unique characteristics, advantages, and limitations. Thermocouples are known for their wide temperature range and robustness, making them suitable for harsh environments. Thermistors offer high sensitivity and quick response times, ideal for precise measurements in narrow temperature ranges. RTDs, particularly platinum RTDs, provide exceptional accuracy and stability over a broad temperature span. Understanding the differences between these sensors is crucial for selecting the right temperature measurement solution for specific applications in industries such as manufacturing, healthcare, and aerospace.

Comprehending the Basics: Thermocouple, Thermistor, and RTD

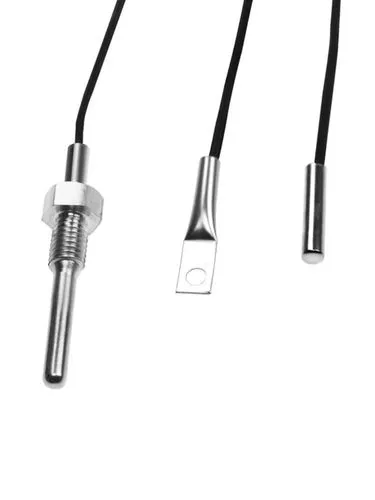

Thermocouple: The Versatile Temperature Sensor

Thermocouples are among the most widely used temperature sensors due to their simplicity and versatility. These devices operate on the Seebeck effect, where two dissimilar metals joined at one end generate a small voltage proportional to the temperature difference between the junction and the reference point. Thermocouples can measure a vast temperature range, from cryogenic temperatures to over 2000°C, making them suitable for various industrial applications.

Key characteristics of thermocouples include:

- Wide temperature range capability

- Rugged construction suitable for harsh environments

- Self-powered operation

- Relatively low cost

Thermistor: The Sensitive Temperature Detector

Thermistors are temperature-sensitive resistors whose resistance changes significantly with temperature. They are typically made from semiconductor materials and come in two types: Negative Temperature Coefficient (NTC) and Positive Temperature Coefficient (PTC). NTC thermistors are more common in temperature sensing applications.

Thermistors offer several advantages:

- High sensitivity to small temperature changes

- Fast response time

- Excellent accuracy within a limited temperature range

- Compact size

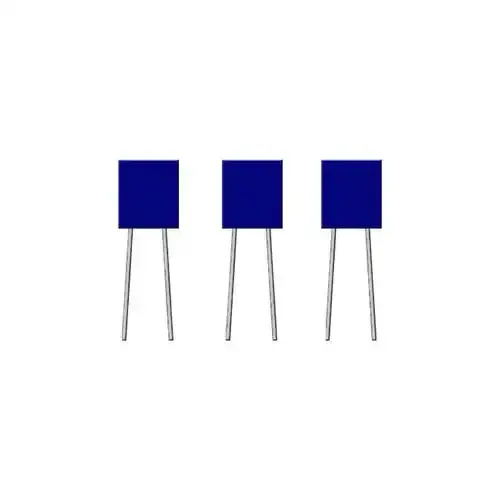

RTD: The Precise Temperature Measurement Solution

Resistance Temperature Detectors (RTDs) are temperature sensors that operate on the principle that electrical resistance of pure metals changes with temperature. Platinum is the most common material used in RTDs due to its stability and linear response over a wide temperature range.

RTDs, particularly platinum RTDs, offer several benefits:

- High accuracy and stability

- Wide temperature range (-200°C to 850°C for platinum RTDs)

- Excellent linearity

- Long-term stability

Comparative Analysis: Performance Metrics of Temperature Sensors

Temperature Range and Accuracy

When selecting a temperature sensor, the operating temperature range and required accuracy are crucial factors to consider. Thermocouples excel in extreme temperature environments, with some types capable of measuring temperatures up to 2300°C. However, their accuracy is typically lower, ranging from ±0.5°C to ±2.2°C or higher, depending on the thermocouple type and temperature range.

Thermistors offer excellent accuracy within a limited temperature range, typically between -50°C to 150°C. They can achieve accuracies as high as ±0.1°C or better in their optimal range, making them ideal for applications requiring precise measurements within a narrow span.

RTDs, especially platinum RTDs, provide a balance of wide temperature range and high accuracy. Industrial-grade platinum RTDs can measure temperatures from -200°C to 850°C with accuracies of ±0.1°C or better. High-precision RTDs can achieve accuracies as tight as ±0.01°C, making them the go-to choice for applications demanding utmost precision.

Response Time and Sensitivity

Response time is a critical parameter in dynamic temperature measurement applications. Thermistors generally have the fastest response times among the three sensor types, typically in the range of 0.1 to 10 seconds, depending on the size and construction. This rapid response makes thermistors ideal for applications requiring quick detection of temperature changes.

Thermocouples also offer relatively fast response times, usually ranging from 0.1 to 5 seconds, depending on the junction type and protective sheath. Their quick response and ability to withstand high temperatures make them suitable for industrial process control and safety systems.

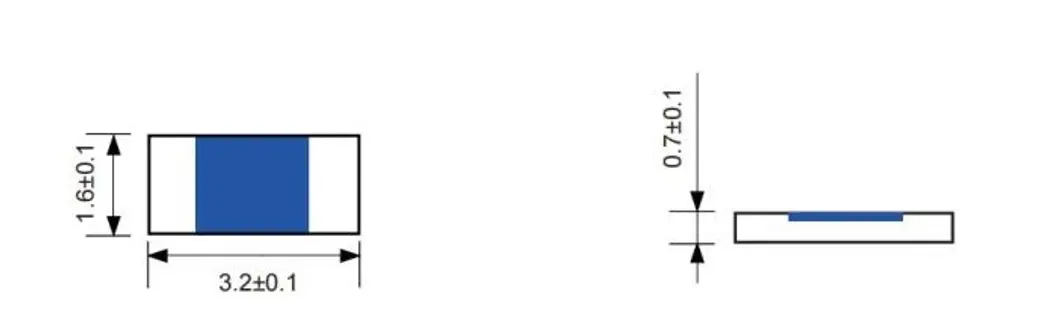

RTDs, while generally slower than thermistors and thermocouples, still provide respectable response times, typically ranging from 1 to 10 seconds. However, thin-film RTDs can achieve response times as low as 0.05 seconds, comparable to or even surpassing some thermocouples and thermistors.

Long-term Stability and Drift

Long-term stability is crucial for applications requiring consistent measurements over extended periods. RTDs, particularly those made with high-purity platinum, exhibit excellent long-term stability. Premium platinum RTDs can maintain their accuracy within ±0.05°C per year or better, making them ideal for precision laboratory equipment and calibration standards.

Thermocouples, while robust, can experience drift over time, especially when exposed to high temperatures or harsh environments. The drift rate depends on the thermocouple type and operating conditions but can be as high as several degrees per year in extreme cases.

Thermistors generally offer good stability in their specified temperature range, with drift rates typically less than 0.1°C per year. However, they may experience more significant drift when used near the extremes of their operating range or in harsh environments.

Application-Specific Considerations for Temperature Sensor Selection

Industrial Process Control and Monitoring

In industrial settings, temperature sensors play a vital role in process control, equipment protection, and quality assurance. The choice of sensor depends on the specific requirements of each application.

Thermocouples are widely used in industrial processes due to their robustness and wide temperature range. They are particularly suitable for high-temperature applications such as metal processing, kiln monitoring, and exhaust gas temperature measurement in engines. Their simplicity and low cost make them attractive for large-scale deployment in industrial plants.

RTDs find extensive use in processes requiring high accuracy and stability. They are commonly employed in food and beverage processing, pharmaceutical manufacturing, and chemical reactors where precise temperature control is critical. The long-term stability of RTDs makes them ideal for continuous monitoring systems in industrial environments.

Thermistors, with their high sensitivity and fast response, are often used in industrial applications requiring quick detection of small temperature changes. They are frequently found in HVAC systems, refrigeration units, and automotive temperature sensors.

Medical and Healthcare Applications

In the medical field, accurate and reliable temperature measurement is crucial for patient care and diagnostic procedures. The choice of temperature sensor depends on the specific medical application and the level of accuracy required.

Thermistors are widely used in medical devices due to their high accuracy in the human body temperature range and fast response times. They are commonly found in electronic thermometers, patient monitoring systems, and medical imaging equipment. The compact size of thermistors allows for non-invasive and minimally invasive temperature measurements.

RTDs, particularly thin-film platinum RTDs, are gaining popularity in medical applications requiring high precision and stability. They are used in advanced diagnostic equipment, blood warmers, and incubators where consistent and accurate temperature control is essential.

While less common in direct patient care, thermocouples find use in medical sterilization equipment and laboratory autoclaves due to their ability to withstand high temperatures and pressures.

Aerospace and Extreme Environment Sensing

The aerospace industry and other extreme environment applications demand temperature sensors that can perform reliably under challenging conditions. These environments often involve wide temperature ranges, high vibrations, and exposure to various chemicals or radiation.

Thermocouples are frequently used in aerospace applications due to their wide temperature range and robustness. They are employed in jet engine monitoring, rocket propulsion systems, and spacecraft thermal management. The self-powered nature of thermocouples also makes them suitable for remote sensing applications in space exploration.

RTDs, particularly those designed for high reliability, find use in aircraft engine control systems, environmental control systems, and hydraulic system monitoring. The stability and accuracy of RTDs are valuable in ensuring the safe and efficient operation of aircraft systems.

While less common in extreme environments, specialized thermistors can be found in niche aerospace applications where their high sensitivity and fast response are advantageous, such as in air data systems and ice detection sensors.

Conclusion

Choosing the right temperature sensor among thermocouples, thermistors, and RTDs requires careful consideration of the specific application requirements, including temperature range, accuracy needs, response time, and environmental conditions. Thermocouples offer versatility and robustness, making them suitable for a wide range of industrial and high-temperature applications. Thermistors provide high sensitivity and fast response, excelling in applications requiring precise measurements within a narrow temperature range. RTDs, particularly platinum RTDs, offer a combination of accuracy, stability, and wide temperature range, making them ideal for applications demanding high precision and reliability.

When selecting a temperature sensor for your application, it's crucial to consider not only the sensor's specifications but also the entire measurement system, including signal conditioning, calibration requirements, and long-term maintenance needs. For expert guidance on choosing the right temperature sensor for your specific needs, particularly in high-precision applications, please don't hesitate to contact us at sales11@xatzd.com. Our team of specialists is ready to assist you in finding the optimal temperature measurement solution for your project.
