How to Test and Troubleshoot RTD Sensors?

Effective testing and troubleshooting of RTD sensors requires systematic diagnostic approaches that identify common failure modes, implement proper testing procedures, and provide reliable solutions to restore measurement accuracy in industrial applications. Professional maintenance teams must understand the fundamental principles of RTD sensor operation, recognize typical failure patterns, and utilize appropriate diagnostic equipment to ensure optimal temperature measurement performance. The RTD sensor represents a critical component in industrial temperature measurement systems, where accurate diagnosis and repair minimize system downtime while maintaining measurement integrity. Understanding comprehensive testing methodologies enables maintenance personnel to quickly isolate problems, implement effective solutions, and prevent recurring failures in demanding industrial environments where RTD sensor reliability directly impacts process control, product quality, and operational safety.

Systematic Testing Procedures for RTD Sensor Performance Verification

Basic Electrical Testing and Resistance Measurements

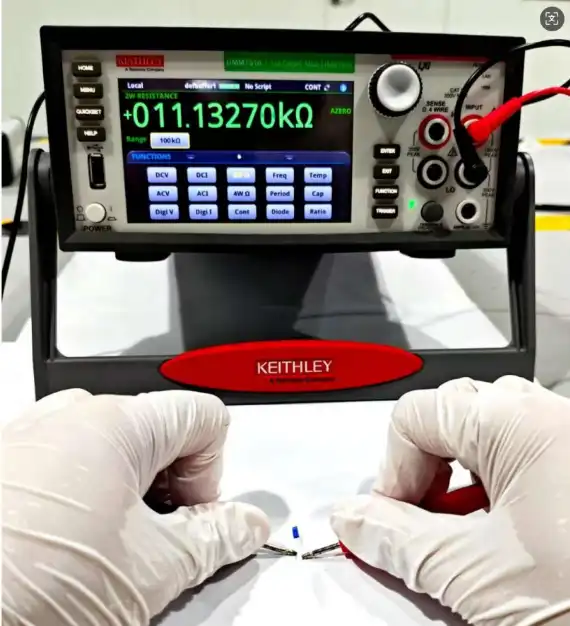

Fundamental RTD sensor testing begins with precise electrical resistance measurements that verify proper sensor operation by comparing actual resistance values with expected specifications at known temperatures. Professional testing utilizes calibrated digital multimeters with appropriate resolution and accuracy to measure RTD sensor resistance under controlled conditions, typically at 0°C where standard RTD sensors should exhibit 100 ohms or 1000 ohms depending on sensor type. The testing process requires careful attention to measurement conditions including excitation current levels, lead wire compensation, and environmental temperature stability to ensure accurate resistance readings that reflect actual RTD sensor performance.

Advanced RTD sensor testing incorporates temperature coefficient verification through resistance measurements at multiple calibrated temperatures to confirm proper platinum characteristics and identify contamination or degradation affecting sensor accuracy. Professional testing equipment includes precision temperature sources such as calibration baths or dry-block calibrators that provide stable temperature references for comprehensive RTD sensor evaluation. Modern high-resistance RTD sensor designs offer enhanced testing advantages through stronger output signals and reduced sensitivity to lead wire effects, simplifying diagnostic procedures while providing more reliable test results in challenging field conditions.

Insulation and Ground Fault Testing Methods

RTD sensor insulation testing identifies moisture ingress, contamination, or insulation breakdown that can cause measurement errors or create safety hazards in industrial installations through systematic evaluation of electrical isolation between sensor conductors and ground connections. Professional insulation testing utilizes specialized equipment that applies standardized test voltages while measuring leakage current to detect insulation degradation below acceptable limits. The testing procedure must account for environmental conditions, cable length, and installation methods that affect insulation performance while ensuring personnel safety during high-voltage testing operations.

Ground fault testing for RTD sensor installations involves systematic evaluation of unintended electrical paths between sensor circuits and grounded surfaces that can introduce measurement errors or create dangerous conditions in industrial environments. Professional ground fault detection equipment can identify intermittent faults that may not appear during routine maintenance but cause measurement instability during normal operation. Advanced RTD sensor systems often incorporate continuous insulation monitoring capabilities that provide real-time assessment of electrical integrity while generating alerts when insulation levels fall below acceptable thresholds, enabling proactive maintenance before complete failure occurs.

Signal Integrity and Response Time Analysis

RTD sensor signal integrity testing evaluates measurement quality through analysis of signal-to-noise ratios, electromagnetic interference susceptibility, and response characteristics under actual operating conditions to identify performance degradation affecting measurement accuracy. Professional signal analysis equipment can distinguish between RTD sensor problems and external interference sources while quantifying signal quality parameters that indicate sensor condition. The testing process includes evaluation of lead wire effects, connection integrity, and environmental interference sources that commonly affect RTD sensor performance in industrial installations.

Dynamic response testing measures RTD sensor time constants and thermal coupling characteristics under controlled conditions to verify proper sensor installation and identify performance changes that could affect measurement accuracy in time-critical applications. Professional thermal response testing utilizes precision temperature step changes while monitoring RTD sensor output to quantify response characteristics and compare results with manufacturer specifications. Modern high-resistance RTD sensor technologies offer improved response characteristics and enhanced signal integrity that simplify testing procedures while providing more reliable performance indicators for maintenance decision-making processes.

Common Failure Modes and Diagnostic Techniques

Physical Damage and Environmental Degradation Assessment

RTD sensor physical inspection procedures identify mechanical damage, corrosion, and environmental degradation that commonly affect sensor performance through systematic evaluation of housing integrity, connection conditions, and protective system effectiveness. Professional inspection protocols include comprehensive examination of sensor housings, mounting hardware, and environmental sealing systems for signs of damage that could compromise measurement accuracy or sensor reliability. Visual inspection techniques utilize specialized tools including borescopes and magnification equipment to identify problems in inaccessible locations while documenting conditions for trend analysis and maintenance planning.

Environmental exposure assessment evaluates the effects of chemical attack, thermal cycling, and mechanical stress on RTD sensor performance through analysis of operating conditions and failure patterns that indicate specific degradation mechanisms. Professional assessment procedures consider installation environment characteristics, operating temperature ranges, and chemical exposure conditions that affect RTD sensor materials and construction methods. Advanced RTD sensor designs incorporate enhanced environmental protection through specialized housing materials and sealing systems that resist common degradation mechanisms while maintaining optimal thermal coupling for accurate temperature measurement in demanding industrial applications.

Electrical Connection and Wiring Problems

RTD sensor electrical connection problems represent the most common source of measurement errors, manifesting as intermittent readings, drift, or complete signal loss that correlates with environmental conditions or mechanical disturbances in industrial installations. Professional connection testing includes systematic evaluation of terminal conditions, wire integrity, and connection resistance throughout the complete signal path from sensor to measurement equipment. Diagnostic procedures utilize specialized test equipment that can identify high-resistance connections, intermittent faults, and corrosion effects that compromise RTD sensor performance without causing complete failure.

Wiring system evaluation for RTD sensor installations involves comprehensive testing of cable integrity, shield effectiveness, and grounding system performance to identify problems affecting measurement accuracy or creating safety hazards. Professional wiring diagnostics include continuity testing, insulation verification, and electromagnetic compatibility assessment that ensures optimal RTD sensor performance in electrically noisy industrial environments. Modern high-resistance RTD sensor technologies offer significant advantages in wiring troubleshooting through reduced sensitivity to lead wire effects and enhanced electromagnetic interference resistance that simplifies diagnostic procedures while improving measurement reliability.

Calibration Drift and Accuracy Degradation

RTD sensor calibration drift detection requires systematic comparison with traceable temperature standards to identify gradual accuracy changes that develop over time due to aging, contamination, or thermal stress effects on sensor elements. Professional calibration verification utilizes precision temperature references and calibrated measurement equipment to quantify RTD sensor accuracy across operating temperature ranges while documenting performance trends that indicate maintenance requirements. The diagnostic process must distinguish between actual sensor drift and measurement system problems that produce similar symptoms but require different corrective actions.

Accuracy degradation analysis involves comprehensive evaluation of RTD sensor performance characteristics including linearity, repeatability, and stability under actual operating conditions to identify specific problems affecting measurement quality. Professional analysis techniques utilize statistical methods and trend analysis to identify gradual performance changes that may not be apparent during single-point testing but indicate developing problems requiring attention. Advanced RTD sensor monitoring systems provide continuous accuracy assessment through comparison with reference sensors or historical performance data, enabling early detection of degradation before measurement errors compromise process control or product quality.

Advanced Diagnostic Tools and Maintenance Strategies

Professional Test Equipment and Calibration Systems

Modern RTD sensor diagnostics utilize sophisticated test equipment including precision multimeters, temperature calibrators, and automated testing systems that provide comprehensive sensor evaluation while minimizing testing time and ensuring consistent results. Professional diagnostic equipment incorporates features such as four-wire resistance measurement, temperature coefficient analysis, and automated documentation that support systematic RTD sensor maintenance programs. The equipment selection must consider measurement accuracy requirements, testing environment conditions, and documentation needs that ensure compliance with quality management systems and regulatory requirements.

Portable calibration systems enable field verification of RTD sensor accuracy without requiring sensor removal or system shutdown, providing immediate assessment of sensor performance while maintaining operational continuity. Professional field calibration equipment includes precision temperature sources, reference standards, and measurement systems that deliver laboratory-grade accuracy under industrial conditions. Advanced calibration systems incorporate automated testing sequences and digital communication capabilities that streamline testing procedures while providing comprehensive documentation for maintenance records and trend analysis supporting predictive maintenance programs.

Predictive Maintenance and Monitoring Technologies

Predictive maintenance programs for RTD sensor installations utilize continuous monitoring systems that track performance characteristics and provide early warning of developing problems before they cause measurement failures or system disruptions. Professional monitoring systems analyze measurement data patterns, environmental conditions, and performance trends to identify RTD sensors approaching failure conditions that require proactive replacement or maintenance. These systems significantly reduce unexpected downtime while optimizing maintenance scheduling and inventory management for RTD sensor installations across industrial facilities.

Advanced monitoring technologies include automated diagnostic capabilities that continuously evaluate RTD sensor signal quality, response characteristics, and environmental conditions while generating alerts when performance parameters exceed acceptable limits. Professional monitoring systems integrate with maintenance management software to provide automated work order generation and parts procurement that streamlines troubleshooting procedures while reducing response times. Modern high-resistance RTD sensor designs offer enhanced monitoring capabilities through improved signal characteristics and diagnostic features that support comprehensive condition monitoring and predictive maintenance strategies.

Long-term Reliability Improvement Programs

Systematic reliability improvement for RTD sensor installations involves analysis of failure data, root cause identification, and implementation of design modifications or maintenance procedure improvements that prevent recurring problems while optimizing system performance. Professional reliability programs utilize statistical analysis methods and failure mode evaluation to identify common problems and develop targeted solutions that address underlying causes rather than symptoms. The programs include environmental monitoring, installation procedure standardization, and training programs that ensure consistent RTD sensor performance across industrial facilities.

Advanced reliability strategies incorporate lessons learned from field experience, manufacturer recommendations, and industry best practices to continuously improve RTD sensor selection, installation, and maintenance procedures that maximize operational life while minimizing total cost of ownership. Professional reliability improvement includes vendor evaluation, specification development, and quality assurance programs that ensure RTD sensor procurement meets application requirements while providing optimal long-term value. Modern reliability programs benefit from data analysis capabilities that identify trends and patterns supporting evidence-based decision making for RTD sensor management and optimization strategies.

Conclusion

Effective RTD sensor testing and troubleshooting requires systematic approaches combining electrical testing, physical inspection, and performance verification to identify and resolve measurement system problems efficiently. Professional diagnostic procedures utilize specialized equipment and proven methodologies that enable rapid fault isolation while implementing permanent solutions that prevent recurring failures and ensure long-term measurement reliability in critical industrial applications.

Xi'an Tongzida Technology Co., Ltd. stands as a leading RTD sensor manufacturer and supplier, leveraging advanced microsensor manufacturing technology and specialized packaging expertise to deliver superior temperature measurement solutions with comprehensive technical support. Our extensive capabilities encompass thin film temperature sensor design, automated production lines, and rigorous quality control systems backed by ISO9001, ROHS, and CE certifications. As experienced RTD sensor suppliers serving diverse industrial markets, we provide expert troubleshooting guidance and technical support to optimize sensor performance. Contact our applications engineering team at sales11@xatzd.com for professional assistance with RTD sensor testing, troubleshooting, and application requirements.
